Winch chain string chain hoist 2000 kg / 12 m

Manufacturer's code: 10030658

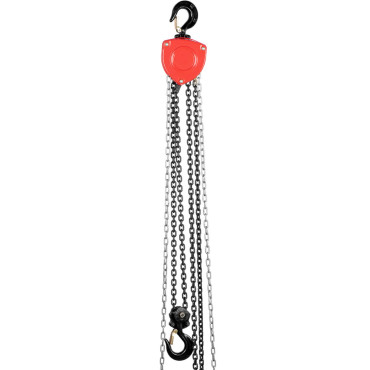

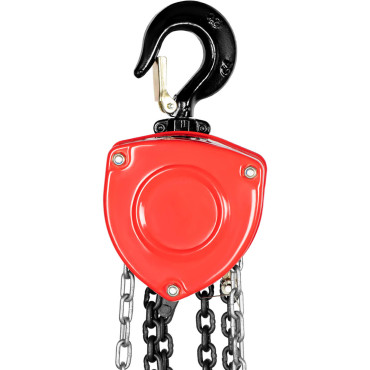

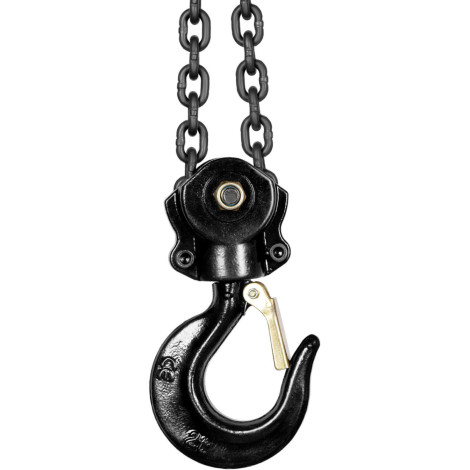

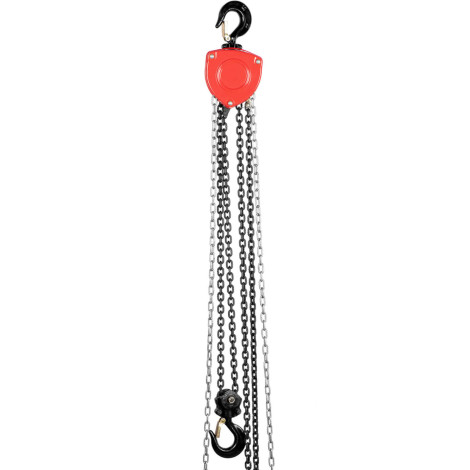

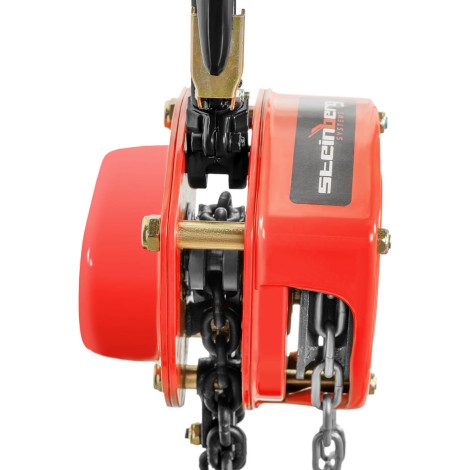

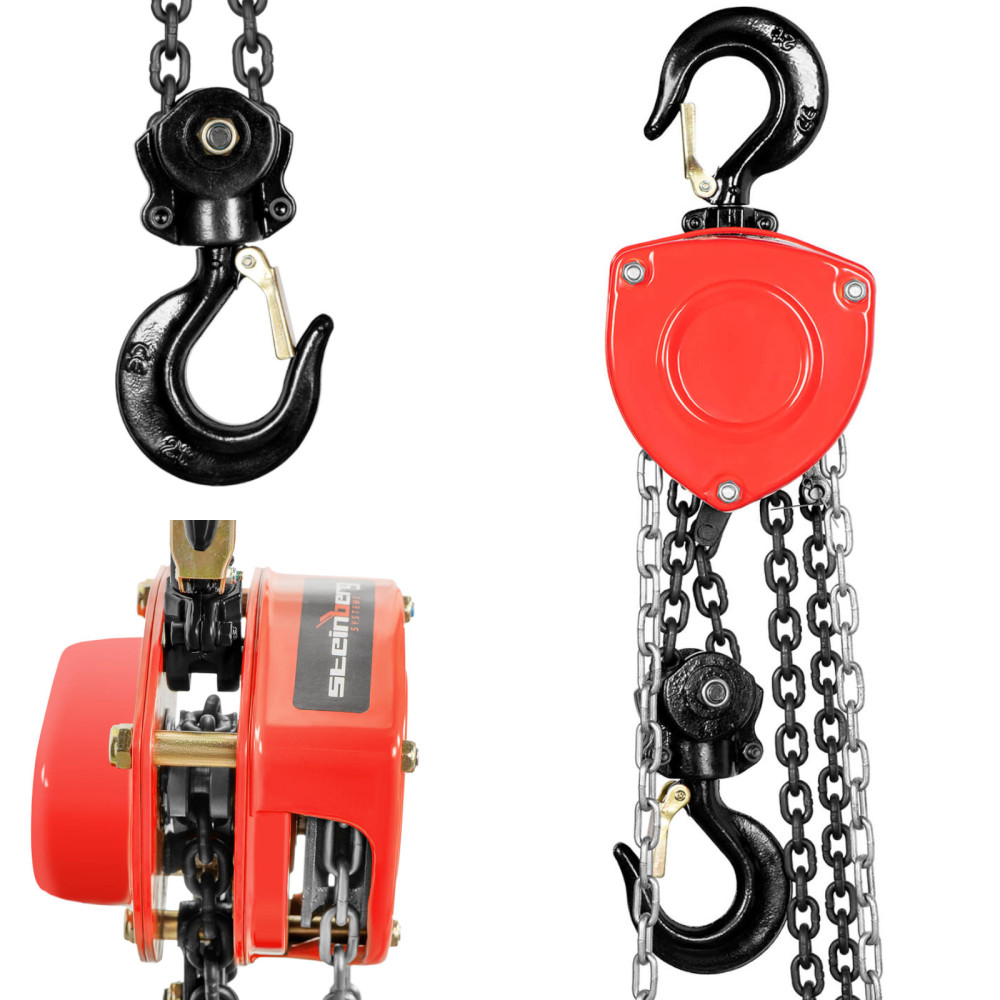

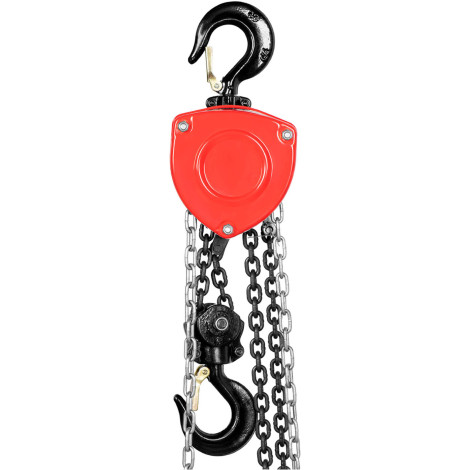

Hand chain winch Brand Steinberg Systems Allows you to safe and conveniently raise objects about weighing up to 2000 kg. The length of the chain is 12 m. The hoist will work in workshops, factories, on construction sites, etc. The device is supported manually. Solid construction ensures safety during operation. The housing was made of low-carbon steel, a hardened steel chain, a carbon steel hook. Also used electronically and nuts were also used.
Product features:

• - high load capacity up to 2000 kg,
• - lifting height up to 12m,
• - Manual operation takes place without a power source,

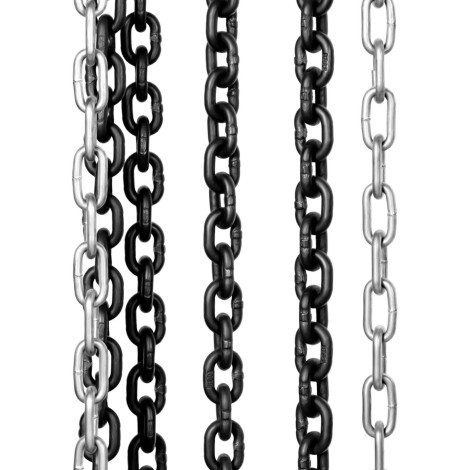

• - high industrial quality due to the use of galvanized screws, nuts, hardened chain,
• - The reliable brake maintains the weight.

Technical parameters:

• - Model - SBS-FZ 3000 / 12M
• - catalog number - 10030658
• - article - New
• - Haka material - Carbon steel
• - brake - Friction
• - drum length [m] - 175
• - gear transmission - 1/8
• - Engine - Manual
• - Rope length [m] - 12
• - Clutch - Gear
• - Drum diameter [mm] - 210
• - Material - Housing: low-carbon steel, chain: tardy steel
• - Permissible load [kg] - 2000
• - gear - 3
• - Maximum load [kg] - 2000
• - Max. Also [kg] - 2000
• - Rope diameter [mm] - 6
• - chain length [m] - 12
• - Dimensions (DXSXW) [cm] - 1215 x 18 x 19
• - weight [kg] - 36,4
• - Dimensions of shipment (DXSXW) [cm] - 37 x 30 x 22.5
• - shipping weight [kg] - 37,3

Included:

• - chain winch
• - User manual
