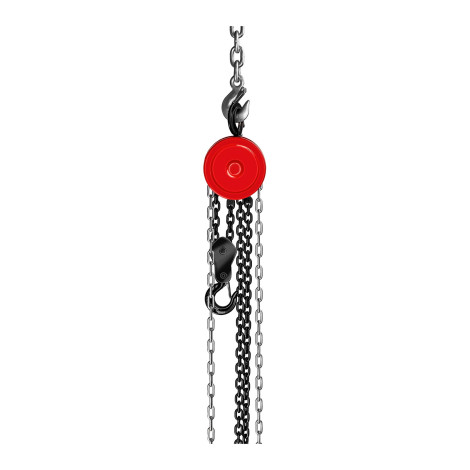

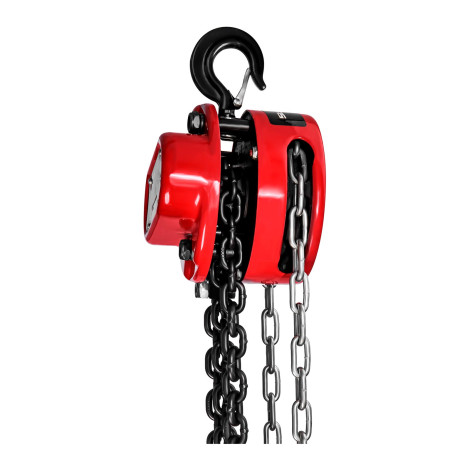

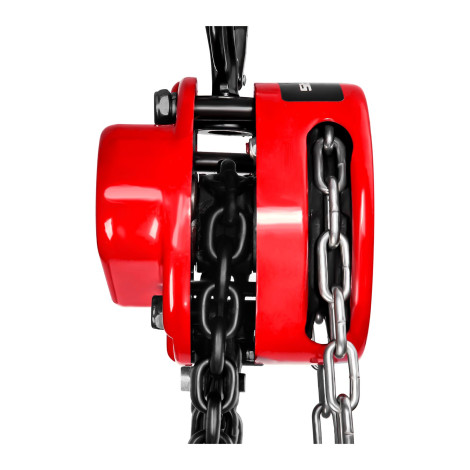

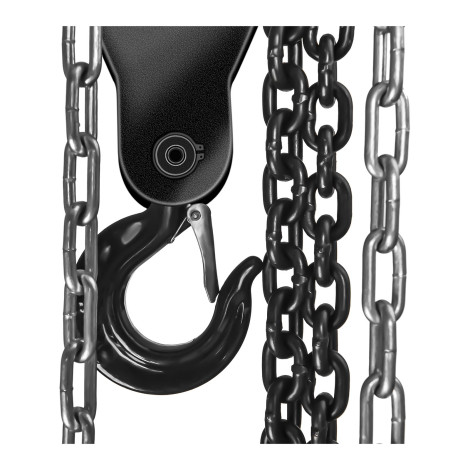

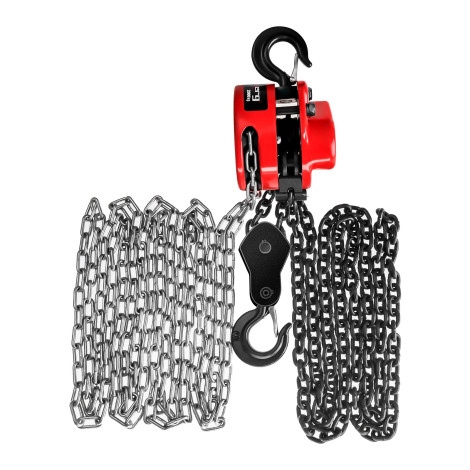

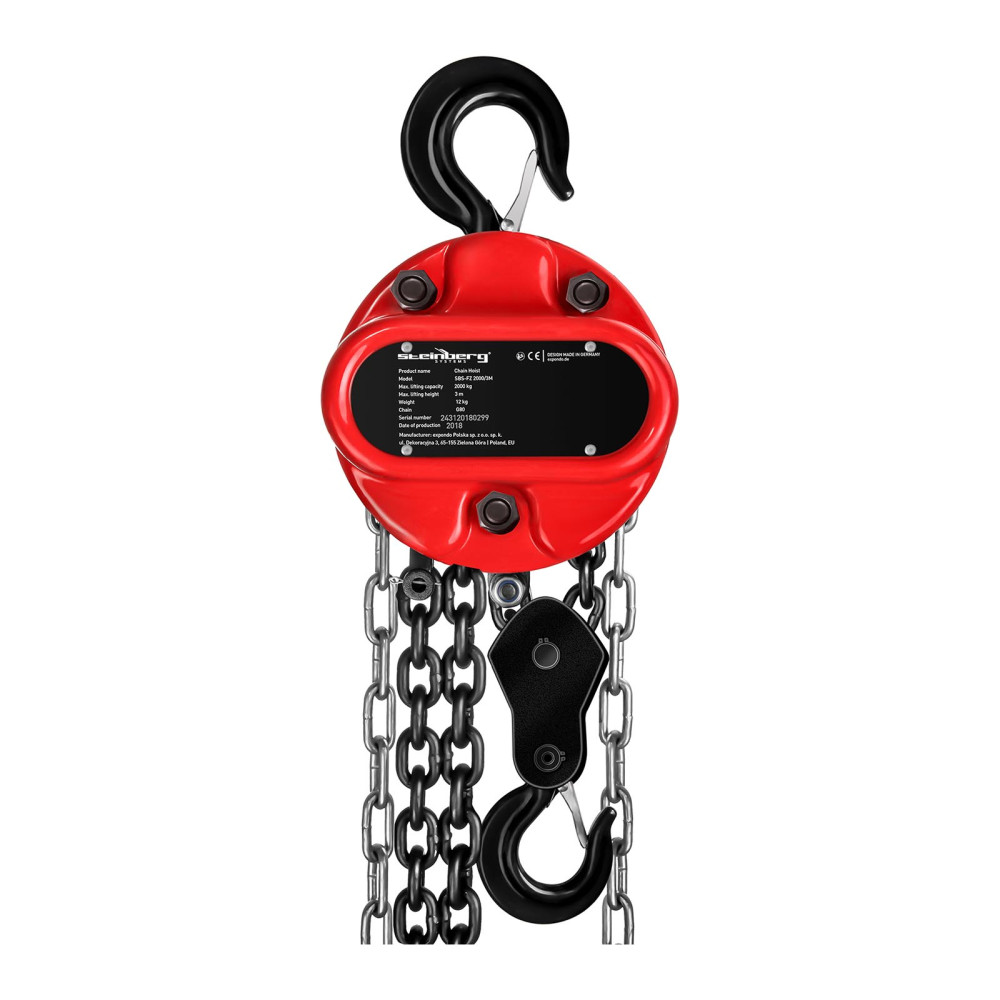

Winch chain string chain hoist 2T / 3M

€77.81
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer number: Steinberg Systems 10030374Chain winch German brand Steinberg Systems This is a versatile device that works perfectly in various production companies, mechanics plants, warehouses or construction sites. Its basic application is raising and lowering heavy objects. A manual chain lift allows you to raise objects about a weight of 2000 kg even to the height of three meters. Due to durable chains (G80 type, 6 mm diameter) and make elements from high quality steel, work using the model SBS-FZ 2000 / 3M is very secure. This also affects the nylon cover the tie tie and the safety mechanism that stops the operation of the equipment when the chain is released. In order to increase the user's convenience, the hoist has been Equipped with two swivel hooks and a light gear Connected with a mechanism located inside the housing. It allows you to comfortable lifting and lowering the object. Product features:
  • - Performance - the maximum lifting capacity of up to 2 t allows you to raise items to a height of 3 m,
  • - Convenience - the control lever and safety mechanism that stops the operation of the equipment when the chain is released,
  • - Safety - Steel construction, high quality, two swivel hooks and lever with a non-slip handle.

Technical parameters:
  • - Model - SBS-FZ 2000 / 3M
  • - catalog number - 10030374
  • - article - New
  • - Maximum lifting capacity - 2000 kg
  • - Material - Steel
  • - Maximum lifting height - 3 m
  • - Minimum distance between hooks - 405 mm
  • - Required strength to raise the weight - 314 N
  • - chain type - G80
  • - Number of load-bearing chains - 2
  • - chain link diameter - 6 mm
  • - Dimensions (DXSXW) - 25 x 14.5 x 13 cm
  • - weight - 12.9 kg
  • - Dimensions of shipment (DXSXW) - 28 x 19 x 19 cm
  • - shipping weight - 13.4 kg
Included:
  • Chain winch
  • Manual EN
