Manufacturer's code:

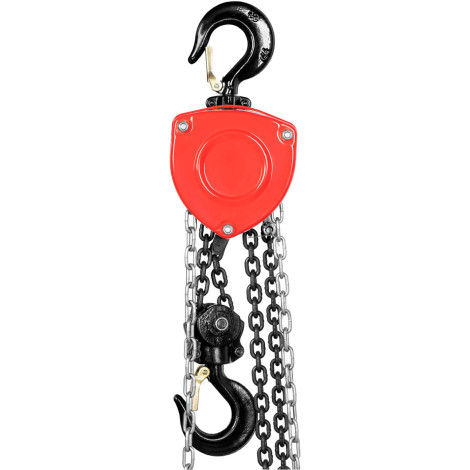

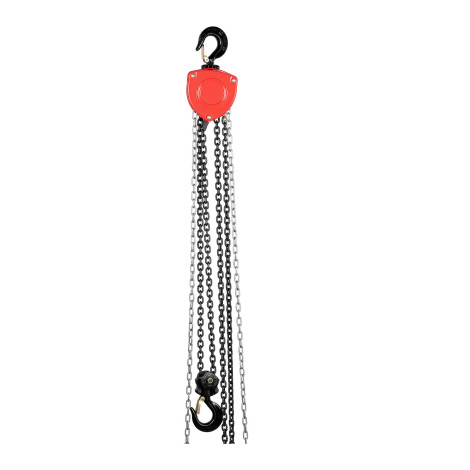

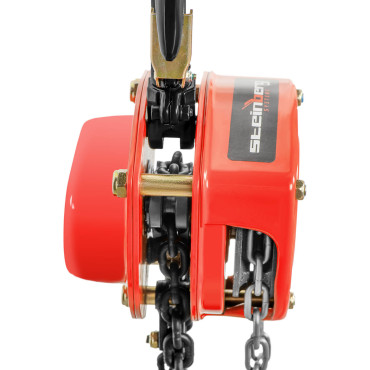

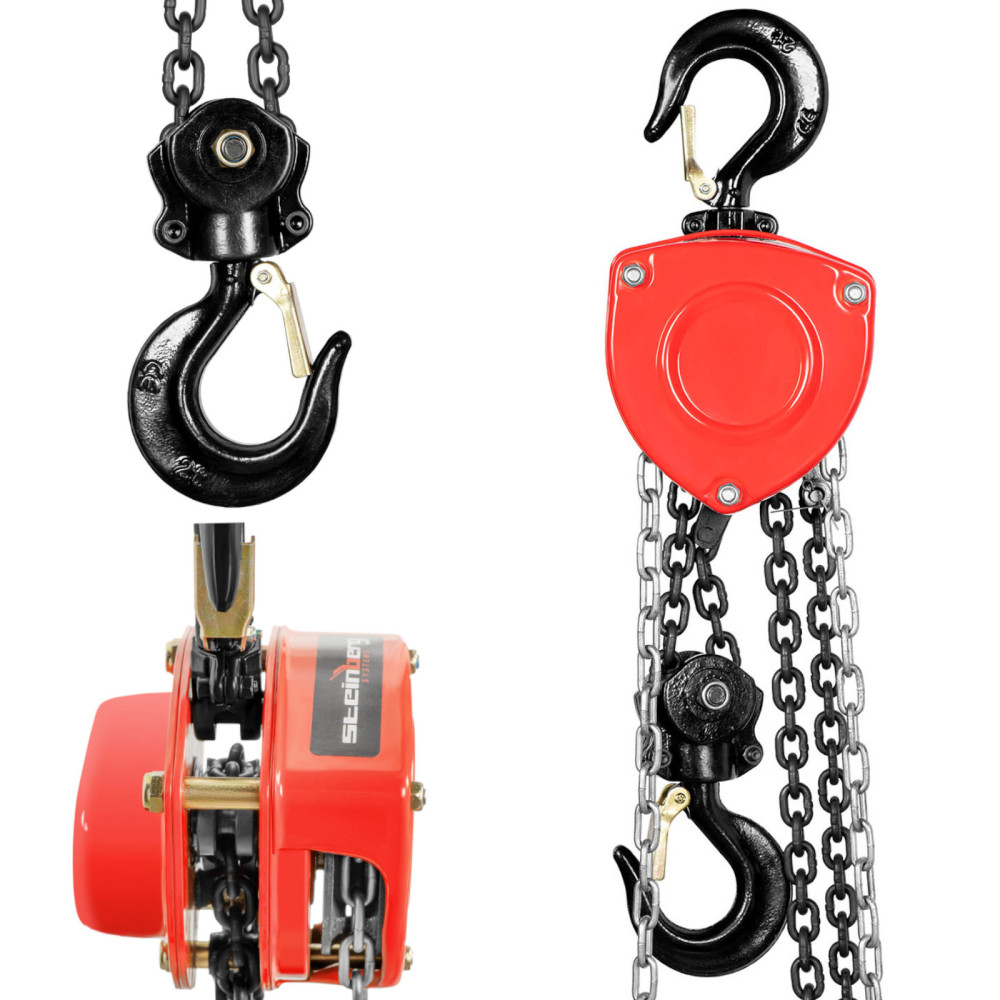

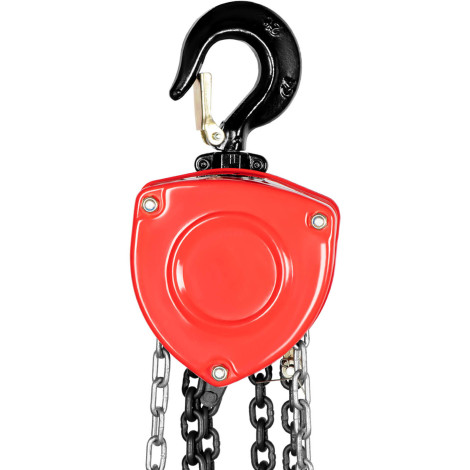

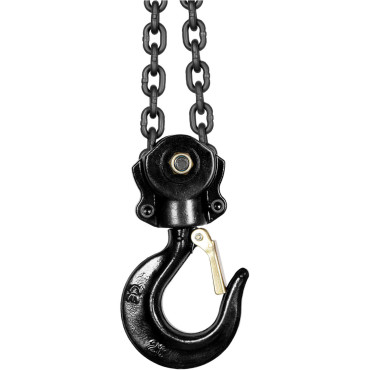

10030651Hand chain winch Brand Steinberg Systems Allows you to safe and conveniently raise objects about weighing
up to 2000 kg. Will work in workshops, factories, on construction sites etc. The device is supported
manually. Solid construction ensures safety during operation. The housing was made of low-carbon steel, a hardened steel chain, a carbon steel hook. Also used electronically and nuts were also used.
Product features: - - high load capacity up to 2000 kg,
- - lifting height to 6m,
- - Manual operation can be done without a power source,
- - high industrial quality due to the use of galvanized screws, nuts, hardened chain,
- - The reliable brake maintains the weight.
Technical parameters: - - Model - SBS-FZ 2000 / 6M
- - catalog number - 10030651
- - article - New
- - Haka material - Carbon steel
- - brake - Friction
- - drum length [m] - 175
- - gear transmission - 1/8
- - Engine - Manual
- - Rope length [m] - 6
- - Clutch - Gear
- - Drum diameter [mm] - 210
- - Material - Housing: low-carbon steel, chain: tardy steel
- - Permissible load [kg] - 2000
- - gear - 3
- - Maximum load [kg] - 2000
- - Max. Also [kg] - 2000
- - Rope diameter [mm] - 6
- - barren - Not
- - Wireless remote control - Not
- - Wired remote control - Not
- - Run forward and back - Not
- - chain length [m] - 6
- - Dimensions (DXSXW) [cm] - 616 x 19 x 24
- - weight [kg] - 22,4
- - Dimensions of shipment (DXSXW) [cm] - 32 x 22 x 23
- - shipping weight [kg] - 23,2
Included: - - chain winch
- - User manual
