Winch chain string handheld chain hoist 5000 kg / 3 m

€143.64
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10030652

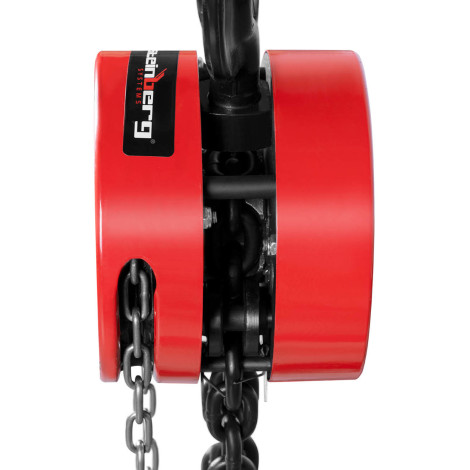

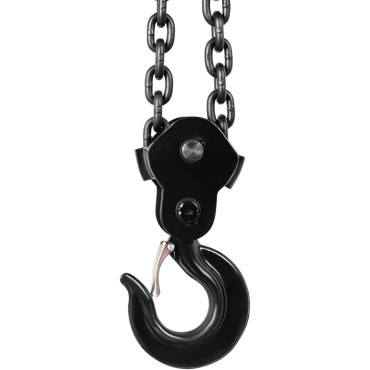

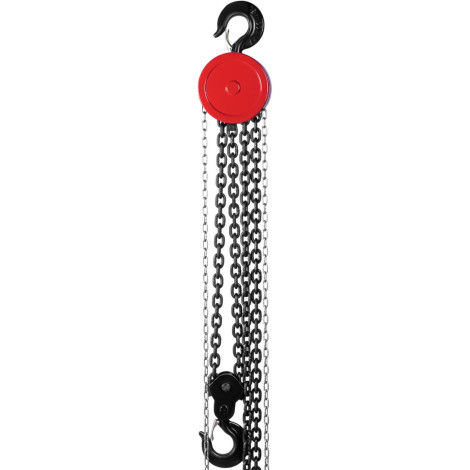

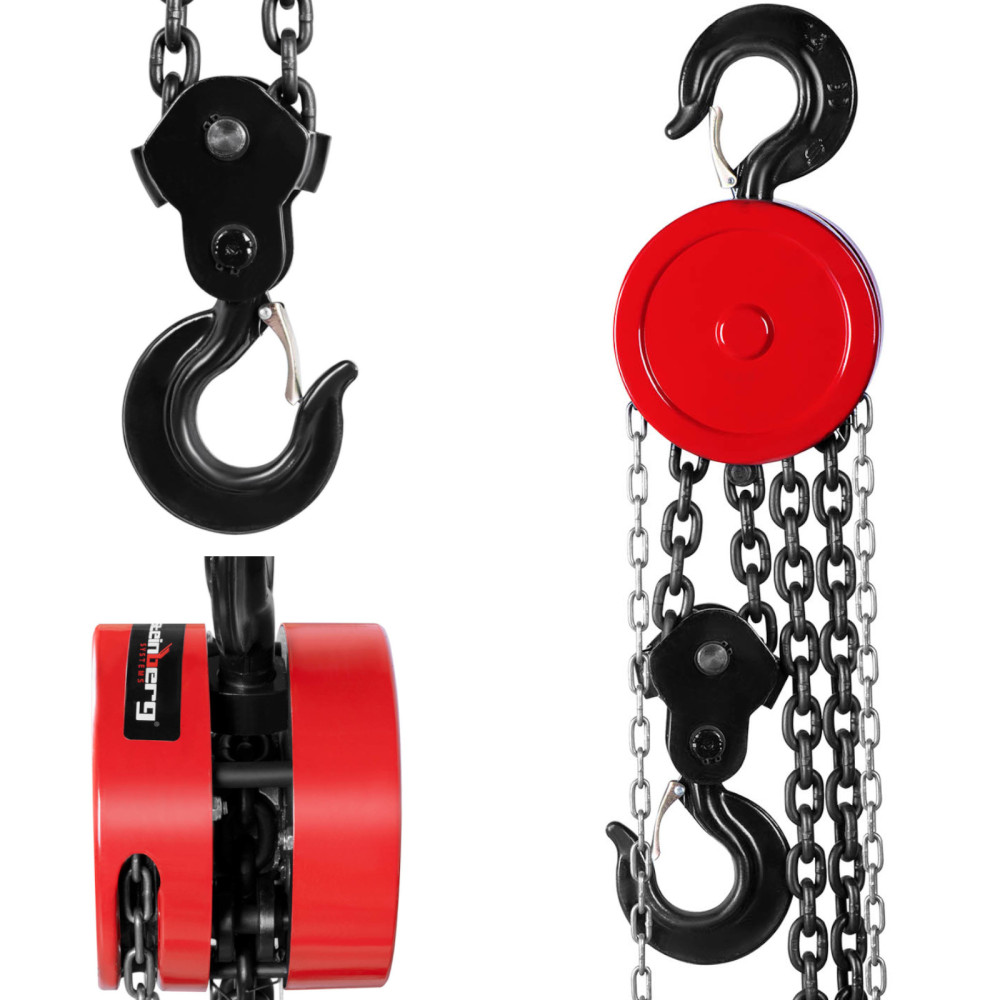

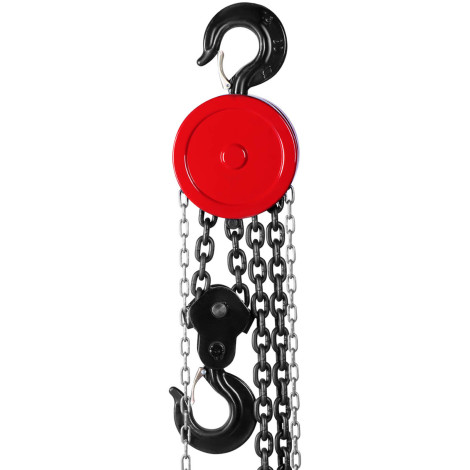

Brand chain winch Steinberg Systems It will work for convenient raising objects weighing up to 5000 kg in workshops, factories, on construction sites, etc. The device is hand-made, without access to electricity. The built-in hook allows you to hang a winch, eg under the ceiling. The chain has 3 m long. The housing was made of low-carbon steel, a hardened steel chain, hook at the end of carbon steel. Galvanized electronic screws and nuts were also used. Equipment is distinguished by resistance to high loads and durability.
Product features:
  • - lifting up to 5000 kg,
  • - lifting height 3 m,
  • - manual support without power source,
  • - galvanized screws, nuts, hardened chain,
  • - The brake maintains the weight.

Technical parameters:
  • - Model - SBS-FZ 5000 / 3M
  • - catalog number - 10030652
  • - article - New
  • - Haka material - Carbon steel
  • - brake - Friction
  • - drum length [m] - 0,189
  • - gear transmission - 1/8
  • - Engine - Manual
  • - Clutch - Gear
  • - Drum diameter [mm] - 280
  • - Material - Housing: low-carbon steel, chain: tardy steel
  • - Permissible load [kg] - 5000
  • - gear - 3
  • - Maximum load [kg] - 5000
  • - Max. Also [kg] - 5000
  • - Rope diameter [mm] - 10
  • - chain length [m] - 3
  • - Dimensions (DXSXW) [cm] - 313 x 19 x 24
  • - weight [kg] - 32,3
  • - Dimensions of shipment (DXSXW) [cm] - 39 x 25 x 22
  • - shipping weight [kg] - 33

Included:
  • - chain winch
  • - User manual
