Workshop chain winch Workshop 150 kg 6 m

€292.51
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10030800

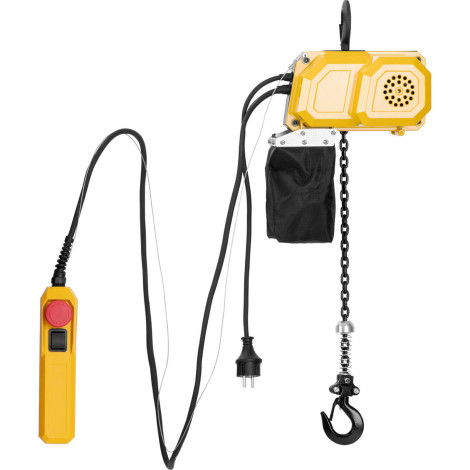

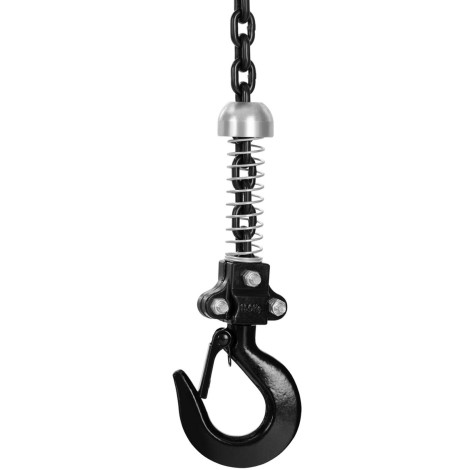

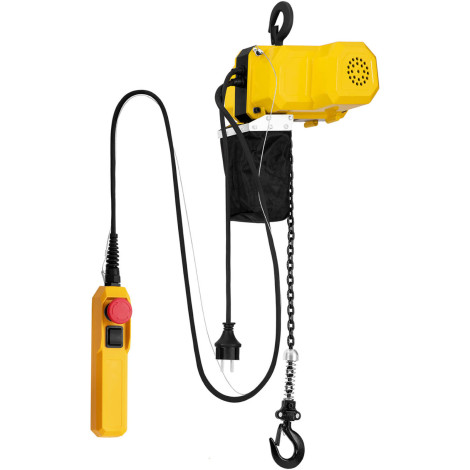

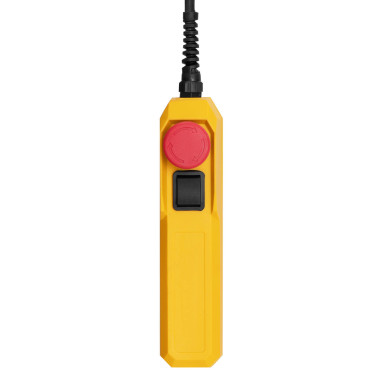

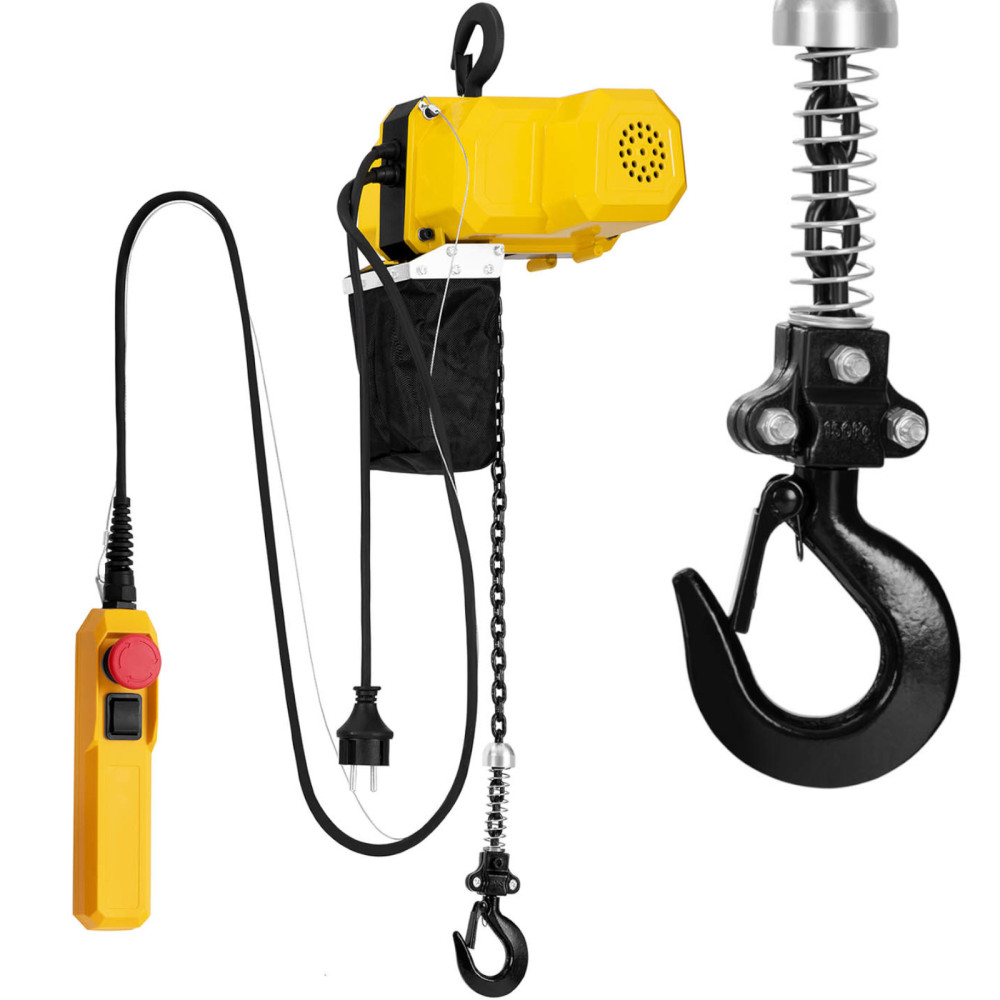

Brand winch Steinberg Systems It will work for lifting heavy loads in a warehouse and workshop. The winch has a power engine 240 Wwhich allows you to raise heavy loads to the height to 6 m. Lifting speed is 3m / min. The wired remote control allows you to control the device from a distance. The emergency switch stops the chain. Loading hook has Safety lock, which provides a secure transport of a mounted subject. Stainless steel chain O 4 mm diameter It is solid and wear resistant. Suitable for lifting heavy goods up to 150 kg. The device housing was made of durable steel, it is resistant to scratches, splashes or corrosion. The winch has a protection class Ip54, it is protected against dirt penetration or water. It also has protection against overload.
Product features:
  • - Chain hoist with a lifting capacity of 150 kg.
  • - lifting height 6 m,
  • - raises loads at 3 m / min,
  • - a steel chain with a diameter of 4 mm,
  • - IP54 protection class and emergency switch.

Technical parameters:
  • - Model - SBS-Eh-150/6
  • - catalog number - 10030800
  • - article - New
  • - Tension [V] - 230
  • - load [kg] - 150
  • - chain diameter [mm] - 4
  • - Material - Steel, copper
  • - Permissible load [kg] - 150
  • - Maximum load [kg] - 150
  • - engine power [W] - 240
  • - Max. Lifting height [m] - 6
  • - Max lifting speed - 3
  • - IP protection degree - Ip54
  • - Load hook - So
  • - Emergency switch - So
  • - Dimensions (DXSXW) [cm] - 22.5 x 18 x 21.5
  • - weight [kg] - 9
  • - Dimensions of shipment (DXSXW) [cm] - 31 x 31 x 26
  • - shipping weight [kg] - 9,9

Included:
  • - Rope winch
  • - User manual
