Manufacturer number:

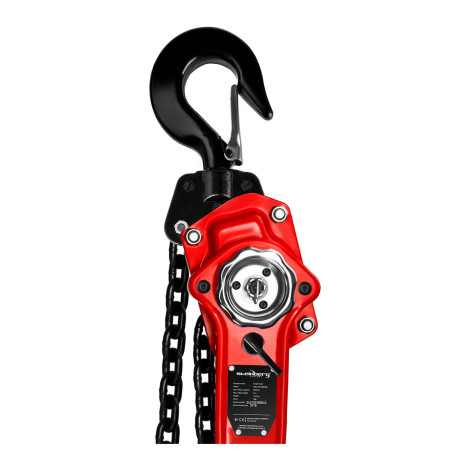

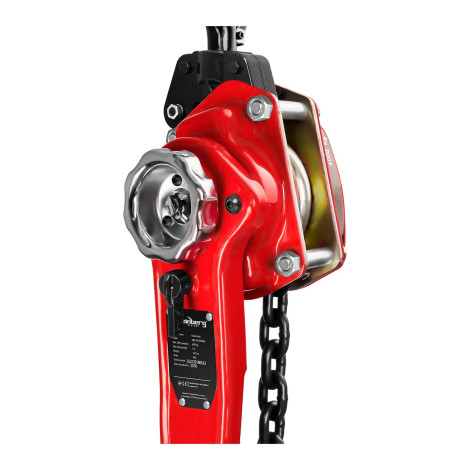

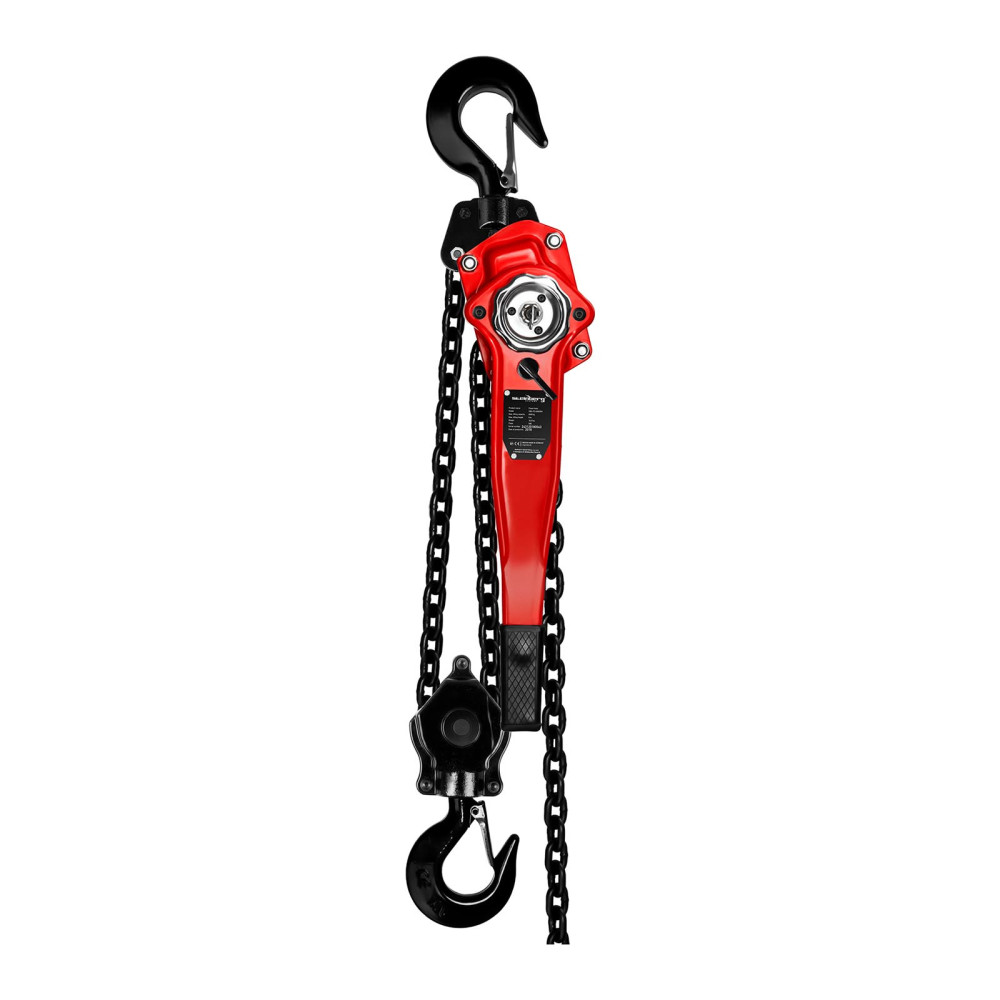

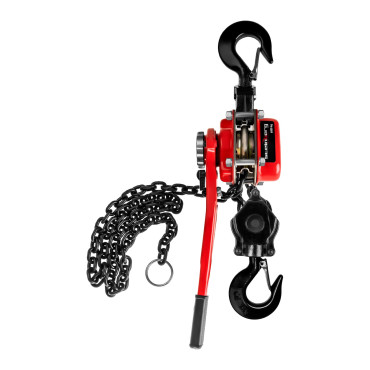

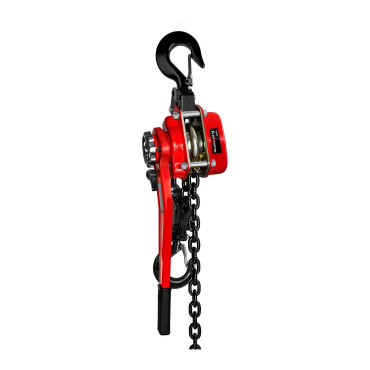

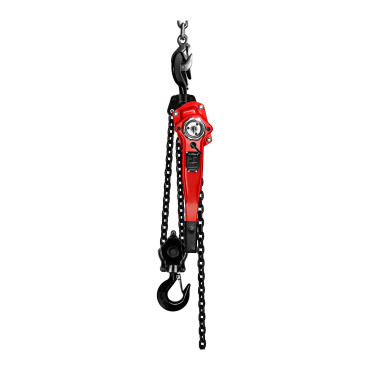

Steinberg Systems 10030381Chain winch German brand Steinberg Systems This is a versatile device that works perfectly in various production companies, mechanics plants, warehouses or construction sites. Its basic application is raising and lowering heavy objects.
A manual chain lift allows you to raise items about a weight of 6000 kg even to a height of five meters. Due to durable chains (G80 type, 10 mm diameter) and make elements from high quality steel, work using the model SBS-FZ 6000 / 5M is very secure. This also affects the rubber end of the control bar and a lock that allows you to stop the load on the height indicated. In order to increase the user's convenience, the hoist has been
Equipped with two swivel hooks and a light gear Connected with a mechanism located inside the housing. It allows you to comfortable lifting and lowering the object.
Product features: - - Performance - the maximum lifting capacity of up to 6000 kg allows you to raise objects to a height of 5 m,
- - Convenience - Control lever and lock that allows you to stop the winch,
- - Safety - Steel construction, high quality, two swivel hooks and lever with a non-slip handle.
Technical parameters: - - Model - SBS-FZ 6000 / 5M
- - catalog number - 10030381
- - article - New
- - Max. Lifting - 6000 kg
- - Material - Steel
- - Max. Lifting - 5 m
- - min. Distance between hooks - 640 mm
- - Required strength to raise the weight - 320 N
- - chain type - G80
- - Number of load-bearing chains - 2
- - Wed. Chain links - 10 mm
- - User manual - So
- - Dimensions (DXSXW) - 73 x 13 x 20.5 cm
- - weight - 42.5 kg
- - Dimensions of shipment (DXSXW) - 52 x 22.5 x 22 cm
- - shipping weight - 43.1 kg
Included:
