Manufacturer's code:

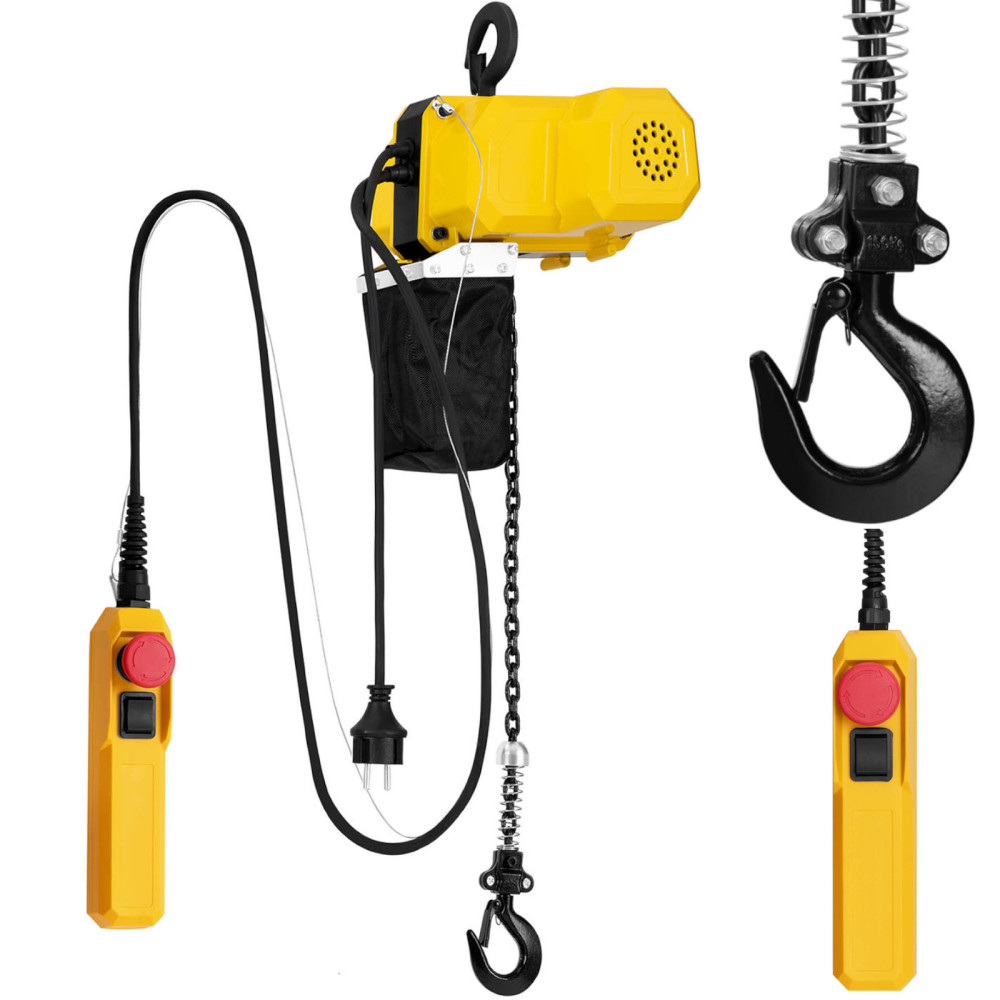

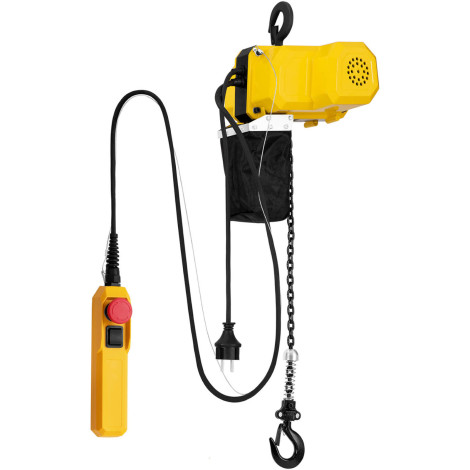

10030801Brand winch Steinberg Systems It will work for lifting heavy loads in a warehouse, garage or workshop. Power engine
240 W can raise
loads up to 150 kg to a height up to 3 m. Lifting speed is
3 m / min.

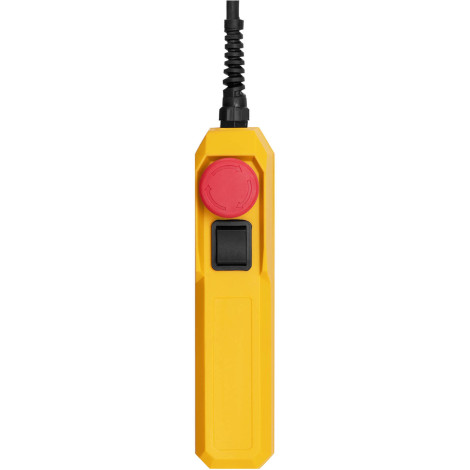

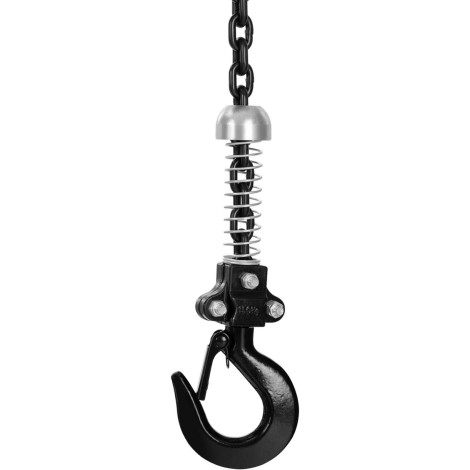

Wired remote Allows you to control the equipment from a safe distance. The emergency switch on the remote control causes a chain to stop. The cargo hook is equipped with a safety lock that provides a secure transport of the mounted goods. A steel chain with a diameter of 4 mm is wear resistant. The hoist housing was made of
steel, which is resistant to scratches, splashes and corrosion. Equipment has
IP54 protection class, i.e. protection against dirt and water penetration and thermal protection against overload.
Product features: - - a force force up to 150 kg,
- - lifting height 3 m,
- - lifting speed 3 m / min,
- - a steel chain with a diameter of 4 mm,
- - IP54 protection class and emergency switch.
Technical parameters: - - Model - SBS-Ech-150/18
- - catalog number - 10030801
- - article - New
- - Tension [V] - 230
- - load [kg] - 150
- - chain diameter [mm] - 4
- - Material - Steel, copper
- - Permissible load [kg] - 150
- - Maximum load [kg] - 150
- - engine power [W] - 240
- - Max. Lifting height [m] - 3
- - Max lifting speed - 3
- - IP protection degree - Ip54
- - Load hook - So
- - Emergency switch - So
- - Dimensions (DXSXW) [cm] - 22.5 x 18 x 21.5
- - weight [kg] - 8
- - Dimensions of shipment (DXSXW) [cm] - 31.5 x 31 x 26
- - shipping weight [kg] - 8,7
Included: - - Rope winch
- - User manual
