Manufacturer's code:

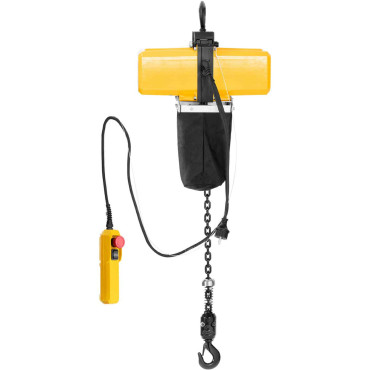

10030798Brand stretcher Steinberg Systems Allows you to raise and leave the loads of weight to
500 kg. Lifting height
3 m It will work in warehouses, garages, workshops, for work at altitudes, etc. Solid hook allows you to easily attach the device. The 680 W motor allows fast and effortless work. Lifting speed is up to 3m / min.

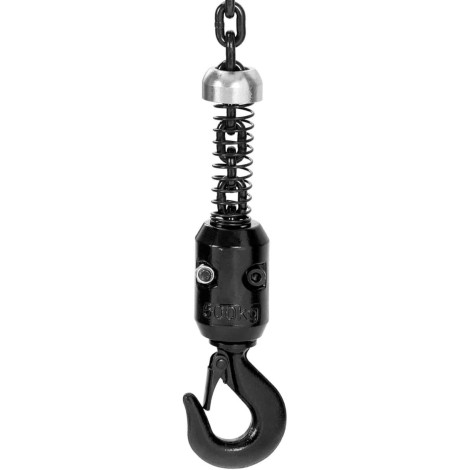

Pilot It is connected to a device using a long cable, which allows you to control the equipment from a safe distance. The emergency switch on the remote control stops the device in case of danger. The cargo hook is equipped with a safety lock that provides a secure transport of the mounted goods. A stainless steel chain with a diameter of 6.3 is solid and wear-resistant. The steel housing is resistant to scratches, splashes or corrosion. The Extractor has an IP54 protection class, is protected against dirt or water. It also has protection against overload.
Product features: - - 500 kg lifting capacity,
- - lifting height 3 m,
- - raises loads at 3 m / min,
- - a steel chain with a diameter of 6.3 mm,
- - IP54 protection class and emergency switch.
Technical parameters: - - catalog number - 10030798
- - article - New
- - Model - SBS-Ech-500/3
- - Tension [V] - 230
- - load [kg] - 500
- - chain diameter [mm] - 6,3
- - power [W] - 680
- - Material - Steel, copper
- - Permissible load [kg] - 500
- - Maximum load [kg] - 500
- - engine power [W] - 680
- - Max. Lifting height [m] - 3
- - Max lifting speed - 3
- - IP protection degree - Ip54
- - Load hook - So
- - Emergency switch - So
- - Dimensions (DXSXW) [cm] - 38 x 17.5 x 30
- - weight [kg] - 18,5
- - Dimensions of shipment (DXSXW) [cm] - 48 x 36 x 32
- - shipping weight [kg] - 21,9
Included: - - chain winch
- - User manual
