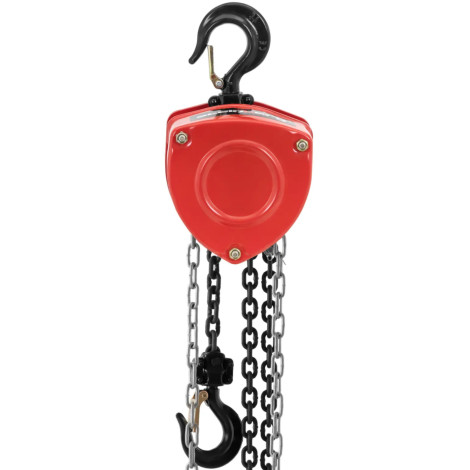

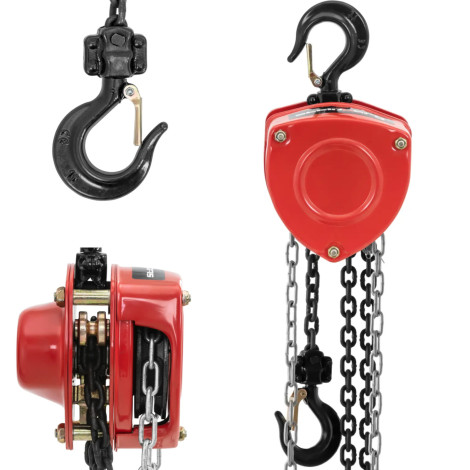

Winch chain string chain hoist 1000 kg / 10 m

Manufacturer's code: 10062883
Brand chain winch Steinberg Systems Facilitates lifting heavy loads. Thanks to the well-thought-out design, it can be used in many ways, whether on a construction site, in a workshop or warehouse. Chain hoist lifts up to 1 t. A solid construction of hardened steel and galvanized screws and nuts guarantees unusual resistance. The device is also resistant to corrosion and meets the highest industrial standards. Manual winch picking loads on Height up to 10 m. At the same time, it provides maximum freedom of movement during maneuvering. Additional power sources are not needed to operate. Three gears Inside the device will provide optimal power transfer and convenient work. When lifting and lowering, you can lock the pull chain if necessary.
Product features:

• - a solid chain winch with a G80 chain will force 1000 kg,
• - raise loads to a height of up to 10 m and provides great flexibility,
• - hand-operated without power to use, so you can use in many places,
• - galvanized screws and nuts, as well as a hardened chain guarantee the highest industrial quality,
• - In emergencies, reliable brakes block the chain of the hoist, providing full control when lifting and lowering.

Technical parameters:

• - catalog number - 10062883
• - article - New
• - Model - SBS-FZ 1000 / 10M
• - Material - Steel
• - Color - Black, red
• - brake - Brake disc
• - gear transmission - 1/8
• - Clutch - Gear
• - gear - 3
• - chain type - G80
• - barren - Not
• - battery power - Not
• - Wireless remote control - Not
• - Wired remote control - Not
• - Protection against overheating - Not
• - Run forward and back - So
• - chain length - 10 m
• - chain diameter - 6 mm
• - Maximum load - 1000 kg
• - Maximum lifting height - 10 m
• - Dimensions (DXSXW) - 15 x 16 x 1000 cm
• - weight - 22.4 kg
• - Dimensions of shipment (DXSXW) - 33 x 23 x 22 cm
• - shipping weight - 23 kg

Included:

• - chain winch
