Manufacturer number:

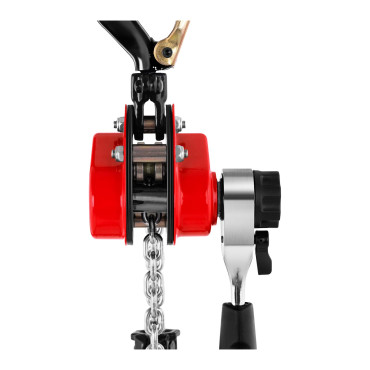

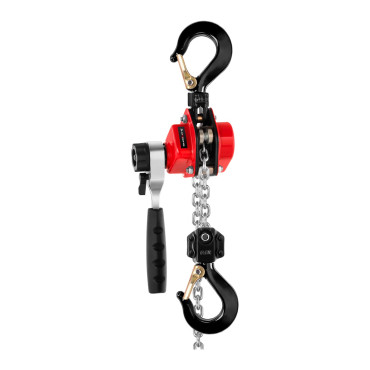

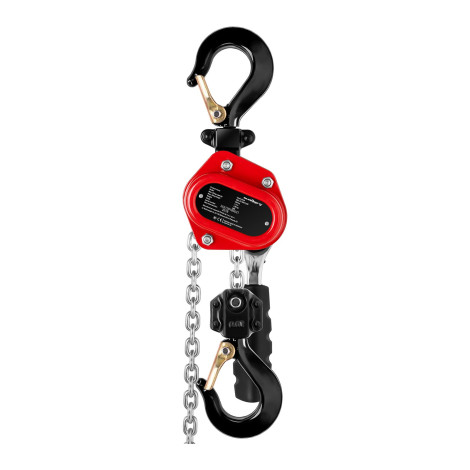

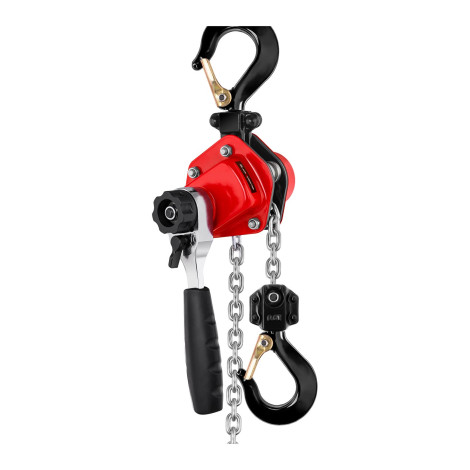

Steinberg Systems 10030376Chain winch German brand Steinberg Systems This is a versatile device that works perfectly in various production companies, mechanics plants, warehouses or construction sites. Its basic application is raising and lowering heavy objects.
A manual chain lift allows you to raise items about a weight of 500 kg even to a height of a half meter. Due to durable chains (G80 type, 4 mm diameter) and make elements from high quality steel, work using the model SBS-FZ 500 / 1.5m is very safe. It also affects the nylon-covered steering rod end and a lock that allows you to stop the load on the indicated height. In order to increase the user's convenience, the hoist has been
Equipped with two swivel hooks and a light gear Connected with a mechanism located inside the housing. It allows you to comfortable lifting and lowering the object.
Product features: - - Performance - the maximum lifting capacity of up to 500 kg allows you to raise items to a height of 1.5 m,
- - Convenience - Control lever and lock that allows you to stop the winch,
- - Safety - steel structure, high quality, two swivel hooks and lever with a non-slip handle,
- - Mobility - A convenient cotton bag is attached to the kit.
Technical parameters: - - Model - SBS-FZ 500 / 1.5M
- - catalog number - 10030376
- - article - New
- - Max. Lifting - 500 kg
- - Material - Steel
- - Max. Lifting - 1.5 m
- - min. Distance between hooks - 300 mm
- - Required strength to raise the weight - 260 N
- - chain type - G80
- - Number of load-bearing chains - 1
- - Wed. Chain links - 4 mm
- - User manual - So
- - Dimensions (DXSXW) - 23 x 12.5 x 10 cm
- - weight - 3.05 kg
- - Dimensions of shipment (DXSXW) - 26.5 x 16 x 16.5 cm
- - shipping weight - 3.45 kg
Included: - Chain winch
- Cotton cover
- User manual
