Manufacturer number:

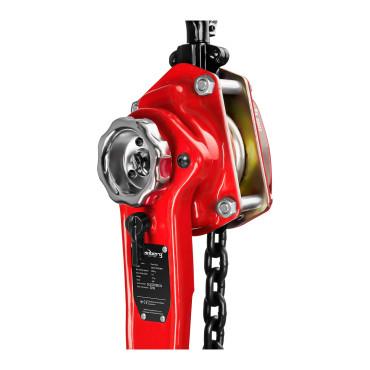

Steinberg Systems 10030379Chain winch German brand Steinberg Systems This is a versatile device that works perfectly in various production companies, mechanics plants, warehouses or construction sites. Its basic application is raising and lowering heavy objects.
A manual chain lift allows you to raise items about a weight of 3000 kg even to the height of three meters. Due to durable chains (G80 type, 10 mm diameter) and make elements from high quality steel, work using the model SBS-FZ 3000 / 3M is very safe. This also affects the rubber end of the control bar and a lock that allows you to stop the load on the height indicated. In order to increase the user's convenience, the hoist has been
Equipped with two swivel hooks and a light gear Connected with a mechanism located inside the housing. It allows you to comfortable lifting and lowering the object.
Product features: - - Performance - the maximum lifting capacity of up to 3 t allows you to raise items to a height of 3 m,
- - Convenience - Control lever and lock that allows you to stop the winch,
- - Safety - Steel construction, high quality, two swivel hooks and lever with a non-slip handle.
Technical parameters: - - Model - SBS-FZ 3000 / 3BM
- - catalog number - 10030379
- - article - New
- - Max. Lifting - 3000 kg
- - Material - Steel
- - Max. Lifting - 3 m
- - min. Distance between hooks - 480 mm
- - Required strength to raise the weight - 340 N
- - chain type - G80
- - Number of load-bearing chains - 1
- - Wed. Chain links - 10 mm
- - User manual - So
- - Dimensions (DXSXW) - 50 x 14.5 x 20,5 cm
- - weight - 21.35 kg
- - Dimensions of shipment (DXSXW) - 52.5 x 21.5 x 22 cm
- - shipping weight - 22.3 kg
Included:
