Diamond drilling machine vertical for stone concrete with a tripod 750 rpm 3200 w

€346.05
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062619

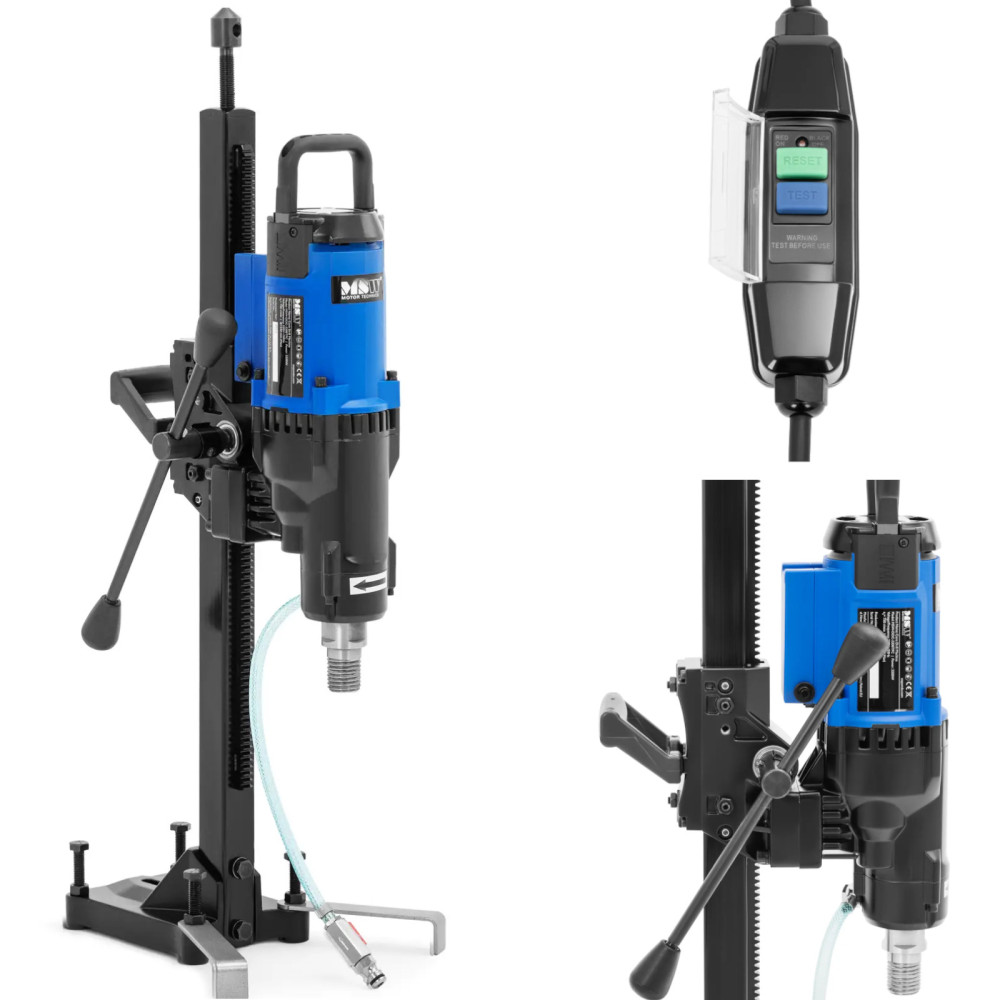

Mark's concrete drilling machine MSW It will allow cutting holes in hard building materials, such as concrete, wall or asphalt. Drilling tripod with the guide rail enables drilling even large Holes with a diameter up to 230 mm. Diamond drilling machine Provides 3200 in and Maximum rotational speed 750 rpm. Tripod with a stable base and guide will allow precise results even in hard building materials. To do this, slide the concrete drill bit using a large lever to get even power transfer. In addition, for safety, the wire is equipped with an integrated protection circuit against differential current (PRCD - Portable Residual Current Device). It will even work in high humidity environments. The device also has overload protection and a safety switch. During drilling, you can rely on reliable water cooling. The connector made of high-quality steel steel is integrated directly with a core drill. The use of water significantly reduces drill consumption. The machine therefore requires less maintenance and has longer life. The amount of dust arising during drilling is also reduced, and the core drill is less heats.
Product features:
  • - the concrete drilling engine impresses 3200 W power and suitable for hard building materials,
  • - thanks to a solid tripod with a core drilling guide, it can drill holes up to 230 mm diameter,
  • - the speed 750 rpm provides optimal results using a diamond crown drill, even for large holes in hard materials,
  • - the electric drilling rig can be used for dry or wet drilling by connecting to water, which reduces heat and dust production,
  • - The diamond concrete drilling machine is equipped with overload protection, and the wire has an integrated residual circuit breaker (PRCD) to ensure safe operation.

Technical parameters:
  • - catalog number - 10062619
  • - article - New
  • - Model - MSW-Ooc-3200tpc
  • - Material - Aluminum, Steel, Pa6 / gf30
  • - Color - Black, Red
  • - Tension [V] - 220
  • - power [W] - 3200
  • - Maximum drilling diameter [mm] - 230
  • - speed of rotation [obr./min] - 750
  • - PrcD protection module on the cable - So
  • - Control switch - So
  • - overload protection - So
  • - cable length [cm] - 226 cm
  • - Dimensions (DXSXW) - 19.5 x 31 x 109 cm
  • - weight - 17.8 kg
  • - Dimensions of shipment (DXSXW) - 88.5 x 35.5 x 23 cm
  • - shipping weight - 21.3 kg

Included:
  • - Concrete drilling machine
  • - Tripod with the guide
  • - Water hose
  • - 2 carbon brushes
  • - 2 keys (32/36 mm 17/19 mm)
  • - Mounting accessories
