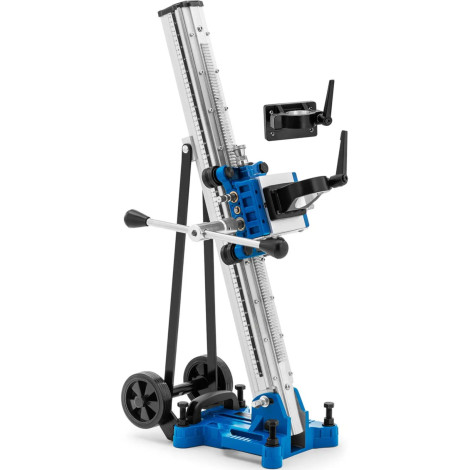

Tripod Stand for drilling machine on wheels to Wed. 350 mm 0-45 degrees

Manufacturer's code: 10062185
Tripod for the brand drilling rig MSW It will allow to work with a core drilling rig with the highest precision and stabilize it. In a few simple steps, you can attach the drill bit to the guide column and select the optimal drilling angle. Even large drills with a diameter of up to 350 mm are safely maintained in a drilling rack. Compact dimensions, two wheels and light design will allow you to quickly move the product into any place. A stand is equally easy to set the stand and attach the devices on it. The equipment has been optimally designed for brand machines MSW. The base allows a safe and stable placement of the drill where it is needed. A stand made of steel and aluminum alloy provides stability even in difficult conditions. This allows you to obtain a precise hole that can be drilled at an angle of 0 to 45deg. The crank will easily attach and guide the drill with ease. The guide rail is safely moving the drill. In addition, the built-in level provides accuracy. Thanks to this, drilling is safe and effectively.

Product features:

• - strong steel and aluminum alloys,
• - to drills with a diameter of up to 350 mm,
• - infinitely variable angle adjustment from 0 to 45Deg on the guide rail,
• - Easy operation with a crank and fast drilling machine,

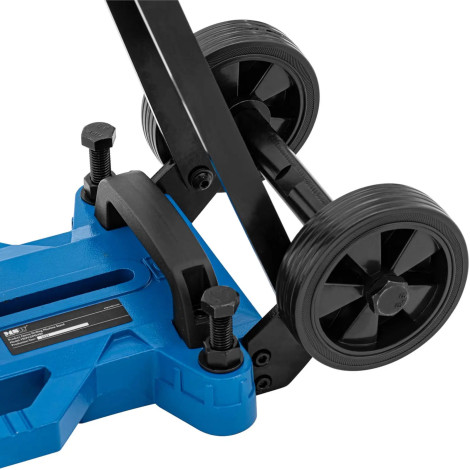

• - Mobile thanks to compact dimensions, two koles and light construction.

Technical parameters:

• - catalog number - 10062185
• - article - New
• - Model - MSW-Dms40
• - Material - Aluminum alloy, Steel
• - Color - Black, Blue, Silver
• - Column size [mm] - 900
• - machining angle [deg ] - 0 - 45
• - Max. Drilling diameter [mm] - 350
• - path length - 550 mm
• - engine installation buckle - 350 mm
• - Diameter of the hole for fixing - 350 mm
• - Dimensions (DXSXW) - 33 x 95 x 65 cm
• - weight - 22.25 kg
• - Dimensions of shipment (DXSXW) - 92 x 30.5 x 47.5 cm
• - shipping weight - 24.8 kg

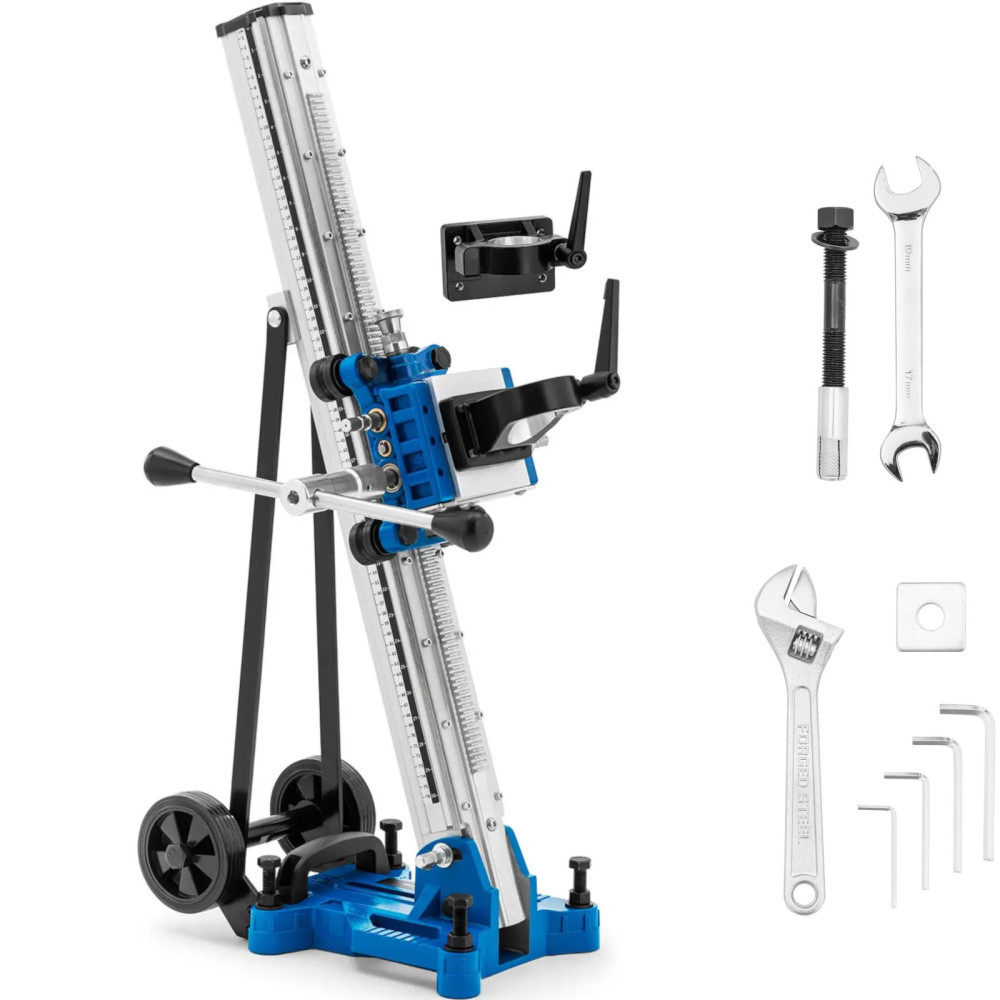

Included:

• - Tripod for drilling rig
