Diamond Diamond DRITNER for stone concrete with a tripod 730 rpm 3600 W

Manufacturer's code: 10062190

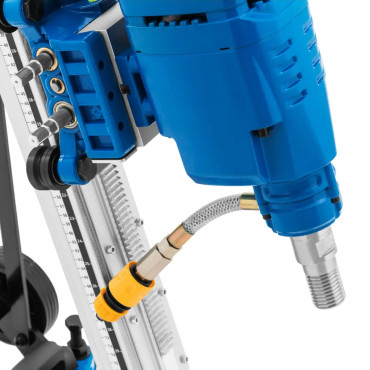

Mark's concrete drilling machine MSW It allows you to reliably drill holes in hard materials, such as concrete, wall or asphalt. With a drilling tripod, even large holes with a diameter can be done up to 300 mm. The power of the device is 3600 W A maximum Speed 730 rpm. These are ideal values for drilling core holes. The size of the drill can be changed depending on the material, eg in the cement, the holes with a diameter to the diameter can be drilled 180 mm. The railway rail on the stand allows precise results to depth ≤600 mm. The machine has Three power levels For optimal results. Use drill bit with the largest diameter at the lowest speed. Water cooling reduces drill consumption, limits machine maintenance and provides longer life. To serve carbon brushes, simply remove the protective cover. Diamond core drills with different diameters can be securely fastened in the device using the handle. Diamond drill can be drilled in reinforced concrete, cement, wall, asphalt and natural stone. Length power cord 3.5 m Provides maximum freedom of movement. Thanks to the built-in Differential circuit breaker (PRCD - Portable Residual Current Device) You can always use the device safely. In the event of a short circuit, the operation is immediate.
Product features:

• - strong engine 3600 W and with carbon brushes,
• - the tripod with the guide allows clean core drilling to a diameter of 300 mm,
• - depending on the run, speed up to 100 - 370/100 - 550/100 - 730 rpm,
• - for dry and wet drilling,
• - Differential current circuit breaker (PRCD - Portable Residual Current Device).

Technical parameters:

• - catalog number - 10062190
• - article - New
• - Model - MSW-Ddm-o5000s
• - Tension [V] - 230
• - current [A] - 17.5
• - power [W] - 3600
• - Drilling diameter 1/2/3 [mm] - 20-60 / 60-120 / 120-180
• - Adjusting the range of the guide [mm] - ≤600
• - water hose diameter [mm] - 10
• - Maximum drilling diameter [mm] - 300
• - water connector diameter ['] - 0.4
• - Drilling diameter with a 1/2/3 race tripod [mm] - 100/200 / 300
• - Diameter of the lace drill fastening [''] - 1 1/4 - 7 UNC and G1 / 2
• - PrcD protection module on the cable - So
• - drilling lace dry and wet method - So
• - acoustic power level [dB] - 105 dB
• - acoustic pressure level [dB] - 92 dB
• - length of the cooling hose [m] - 3.5 m
• - Dimensions (DXSXW) - 57 x 34 x 92 cm
• - weight - 35.1 kg
• - Dimensions and weight of shipping (DXSXW) - 15.8 kg 40 x 56 x 25 cm, 23.5 kg 92 x 45 x 30 cm

Included:

• - Concrete drilling machine
