Manufacturer's code:

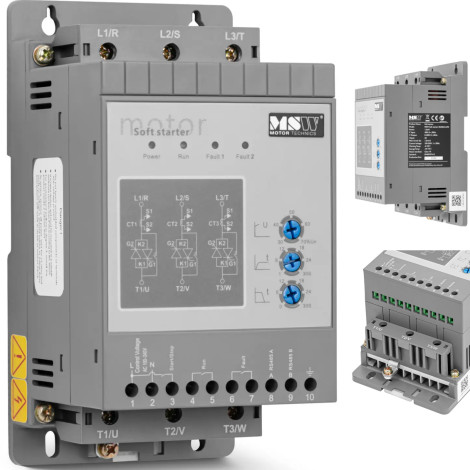

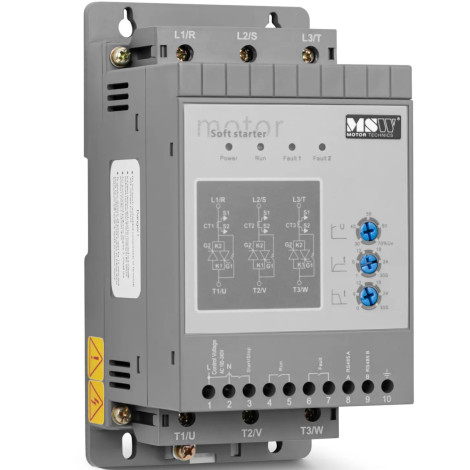

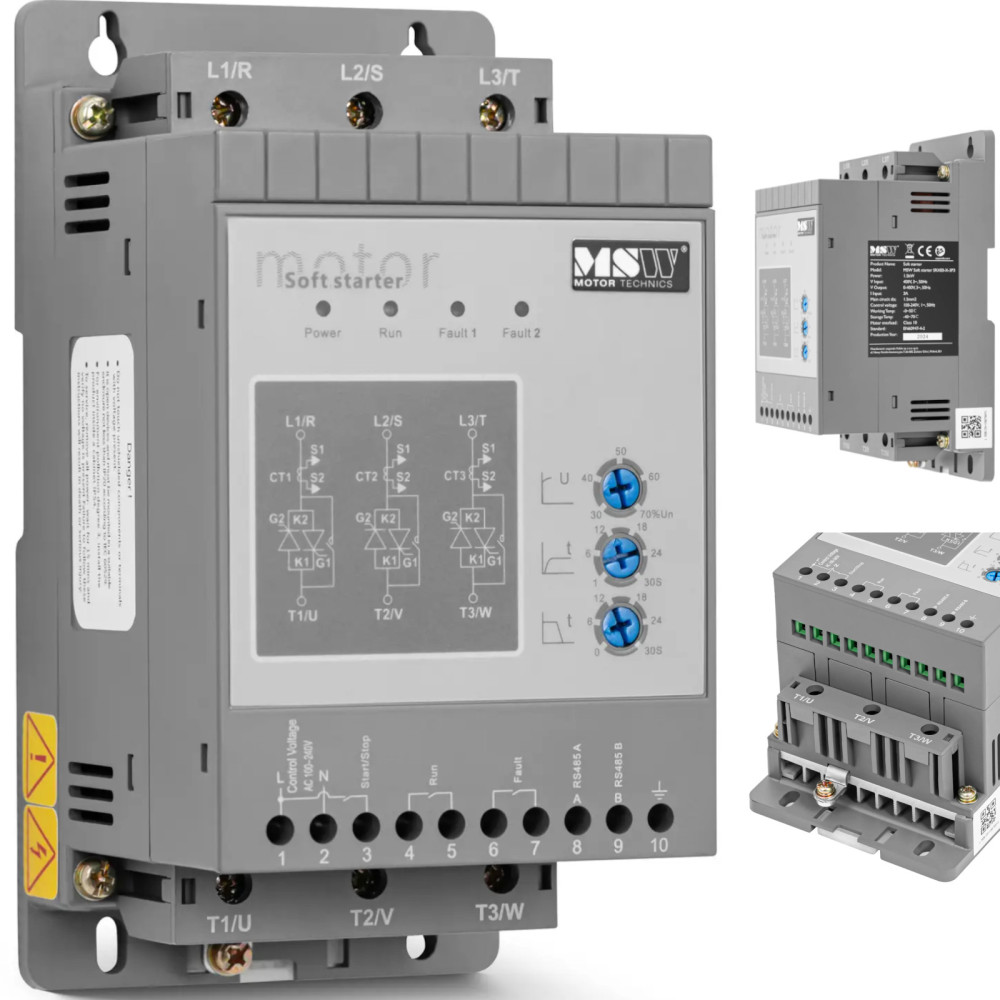

10062931Soft Starter Brand MSW It allows you to extend the lifespan of the equipment and turn on pump motors, compressors or conveyors
voltage 400 V. Control voltage with range
100 - 240 V It allows you to use it with different energy networks. The drive starts with a reduced voltage that will increase according to precisely set voltage to the operating value. As a result, the engine will work smoothly and without hesitation. The model also prevents the water pressure shock during the pump operation. High-quality Soft Start module can be connected to devices with maximum power
1.5 kW. That is why it is ideal for commercial and industrial applications. In addition to high performance mild starting arrangement MSW Provides optimal energy efficiency. The integrated bypass reduces the loss of power as soon as the engine reaches full power. Automatic, non-contact Start / Stop function reduces wear during operation. In addition, three-phase control allows you to reliably adjust the torque, which will result in a smooth start of the motor without jerk.
Overload protection 10 classes cares for safe operation, preventing damage to the machine, and thus improving the engine resistance. Soft Start 400 V delights easy operation, and thanks to a compact design takes a little space.
Product features: - - with a voltage of 400 V and power 1.5 kW Soft Starter gently and securely start motors at a reduced voltage,
- - a mild start system with a pump control function avoids water pressure strokes,
- - thanks to the overload protection of 10 class Soft Starter provides adequate engine protection,
- - a non-contact Start / alloy function of the Soft Starter module enables delicate and smooth starting of the engine,
- - With the 100 - 240 V control voltage, the 240 V softstarter can be used all over the world with different energy networks.
Technical parameters: - - catalog number - 10062931
- - article - New
- - Model - MSW Soft Starter SRX03-X-3P3
- - Color - Gray
- - Maximum power - 1.5 kW
- - Material - ABS
- - Tension [V] - 400, 100-240
- - IP protection degree - -
- - storage temperature [deg C] - 0-50
- - Work temperature range [deg C] - -40-70
- - Rated entrance current [A] - 3
- - weight - 0.8
- - shipping weight - 1
- - Dimensions (DXSXW) - 17.5 x 9 x 9 cm
- - Dimensions of shipment (DXSXW) - 23x15x16
Included:
