Service Laboratory Power Supply 0-60 V 0-5 A 300 W

€113.93
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10021178

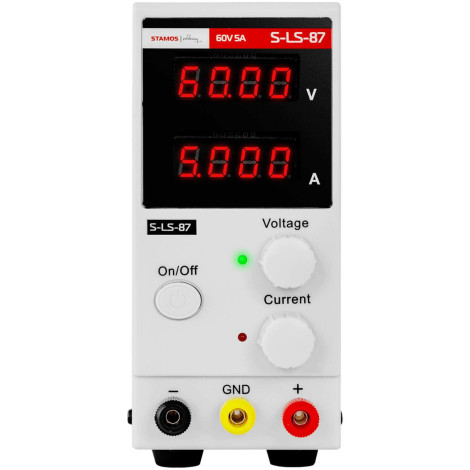

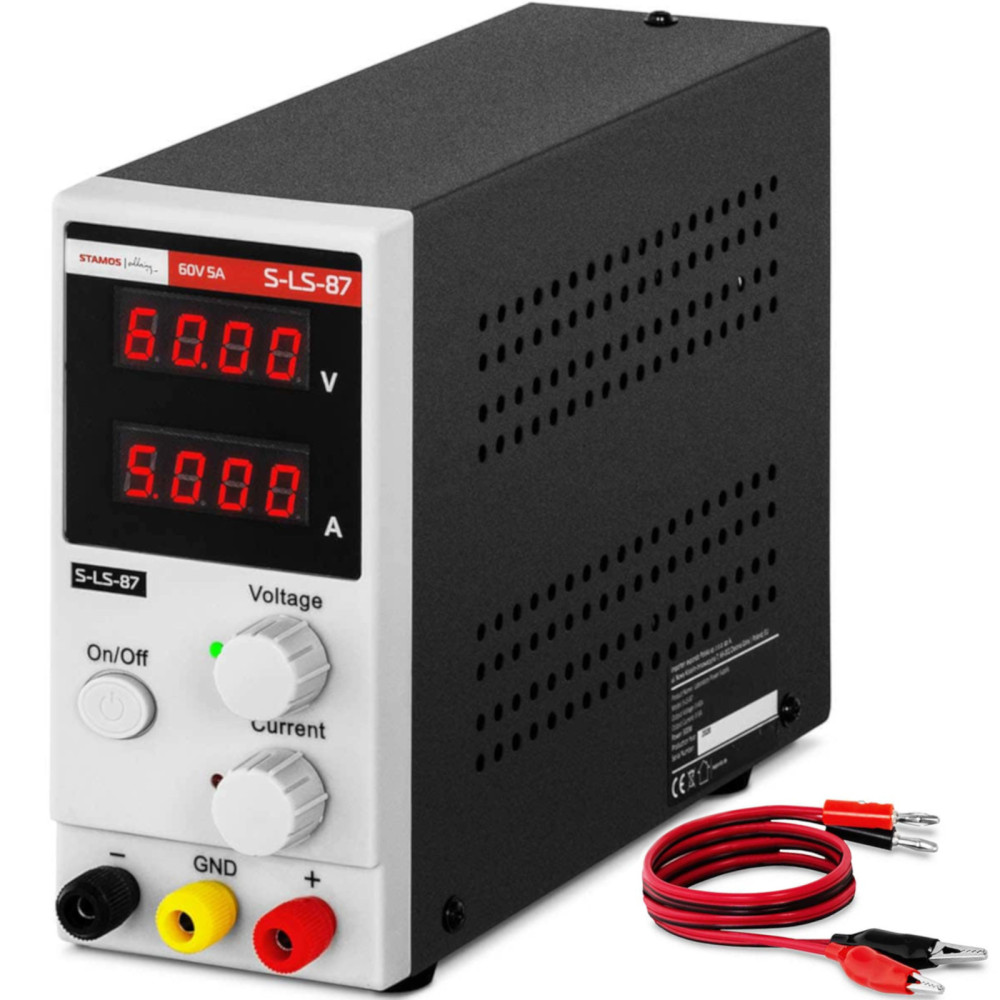

Laboratory power supply Stamos Soldering Allows you to process the current to constant current. It will work in production, industrial, websites and laboratories and research institutes. The device has one channelwhich enables precise voltage adjustment in the range 0-60 V and starting current 0-5 a Use knobs. The power of the device is 300 W. Display Led It allows you to conveniently read the current and voltage values. The power supply is equipped with mode Stabilization of the output current (CC) and tension stabilization (CVS). Has thermal protection (OTP) and overload (OPP). The fan provides the correct temperature inside. Rubber legs prevent slipping and do not draw surfaces.
Product features:
  • - 300 W power,
  • - adjustment in the range 0-60 V and 0-5 A,
  • - knobs for adjusting voltage and intensity,
  • - parameters visible on the LED display,
  • - OTP and OPP protection.

Technical parameters:
  • - catalog number - 10021178
  • - article - New
  • - Model - SEC-ĺş-87
  • - connector [mm] - Output sockets, mains power socket, earthing terminal

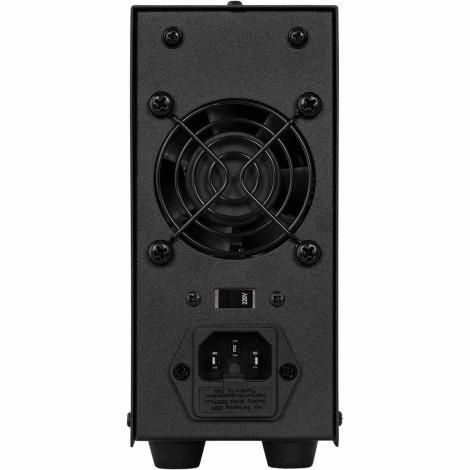

  • - Cooling - Fan, Temperature control
  • - Color - Black
  • - fuse [A] - 5
  • - voltage stabilization coefficient - CV≤20 MV, CC≤20 MA
  • - Current stabilization coefficient - CV≤50 MV, CC≤20 MA
  • - type - Pulse
  • - starting current [A] - 0 - 5
  • - Security - OTP, OPP
  • - Power cord [m] - 1,1
  • - Output voltage [V] - 0 - 60
  • - Display - Led
  • - Tension [V] - 230
  • - power [W] - 300
  • - Rated entrance current [A] - 5
  • - Rainting - 30 MV, 20 mA
  • - Dimensions (DXSXW) - 21.7 x 7.1 x 16 cm
  • - weight - 1.5 kg
  • - Dimensions of shipment (DXSXW) - 30.3 x 10.8 x 20 cm
  • - shipping weight - 1.78 kg

Included:
  • - Laboratory power supply
  • - Connection cable
  • - Power cord
  • - User manual
