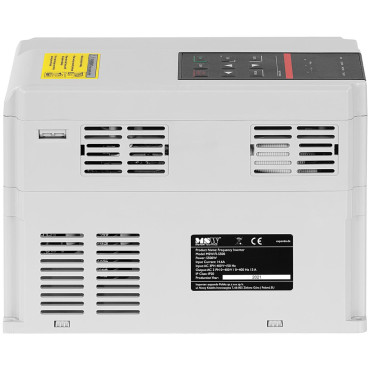

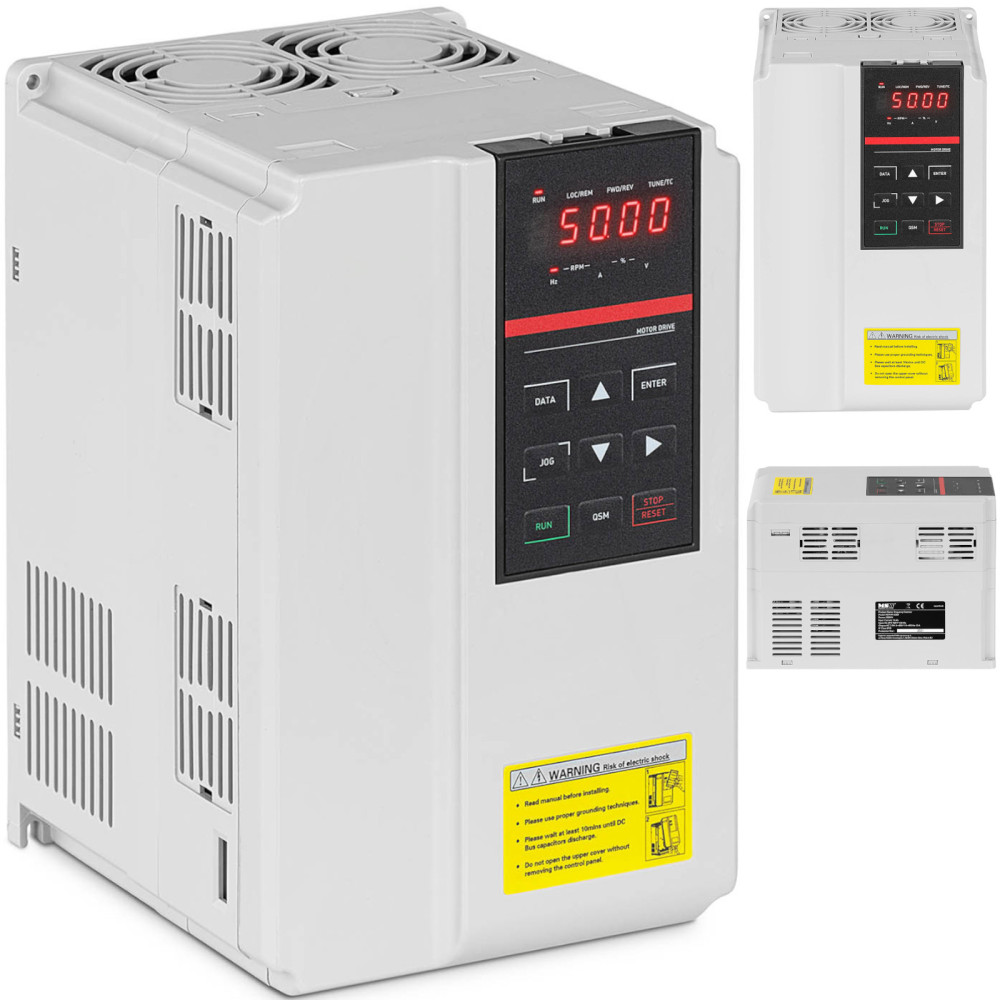

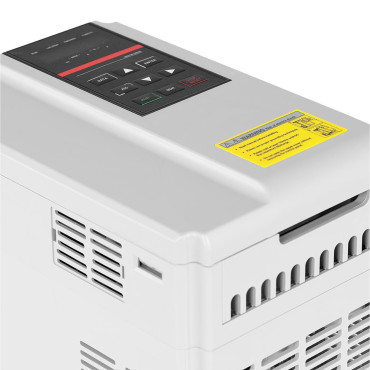

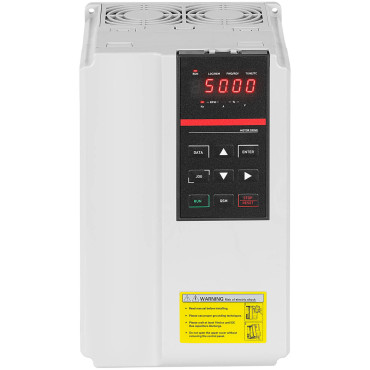

55 kW 75km 400V 50-60Hz frequency converter

Manufacturer's code: 10061531
Brand converter MSW With the power range to 5.5 kW, 7.5 km and three-phase voltage support 400 V It is a precision, easy-to-use and versatile device. This high-performance vector inverter of general low-speed destination and high torque. Use the device inside the rooms and protect against direct sunlight, dust, corrosion gases and flammable, oil mist, steam, water, salt, etc. The three-phase converter 400 V has a speed sensor vector control, Vector control without sensor and V / F control. It also supports V / F separation control. Easy setting control allows the display Led. The equipment is equipped with a brake. 5.5 kW engine has a number of security, including before overheating, an optional multifunction card and analog input A L 3. The engine temperature sensor input is acceptable. The supporting frequency can be adjusted automatically according to the load characteristics. The frequency converter has a linear and linear acceleration or by curve S and four types of acceleration and release time (0.0-6500.0 SEC). Allows you to achieve the speed of work up to 16 segments thanks to the built-in controller PLC or control terminal. Automatic voltage adjustment makes when the mains voltage changes, the output voltage can still be kept constant (13 a). Automatic current and voltage restriction During operation, it prevents switching off due to overcurrent or overvoltage. Automatic torque limitation avoids overcurrent shutdown Control can be held in a closed loop vector mode.
Product features:

• - 5.5 kW engine, 7.5 km with 300 V three-phase support,
• - Precise vector control (with and without sensor) and V / F control for the optimal torque curve,

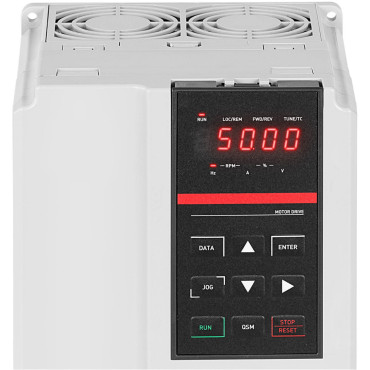

• - LED display ensuring uncomplicated configuration and control,
• - various interfaces and extensive configuration parameters for a wide range of applications,
• - Safe by overheating, overheating, overloading, overloading, overloading and short circuits, protects engines.

Technical parameters:

• - catalog number - 10061531
• - article - New
• - Model - MSW-Fi-5500
• - acceleration and release curve - Accelerating and releasing linear or co-curve S, four types of acceleration and releasing time 0.0 ~ 6500.0 s, range of acceleration and releasing time 0.0 ~ 6500.0 s
• - Accuracy of digital regulation [Hz] - 0.01
• - Current value [%] - 0.0-100
• - braking time - Braking time 0.0 S ~ 36.0 S
• - carrier frequency - 0.5 kHz ~ 16 kHz
• - Control mode - Vector Control in Open Loop (SVC) V / F, Vector Control in Closed Loop (FVC) Control V / F
• - ambient temperature [deg C] - 10 - 40
• - DC braking frequency - 0.00 Hz ~ Maximum frequency
• - Key lock - So
• - IP protection degree - 20
• - current on the entrance [A] - 14.6
• - frequency [Hz] - 50-60
• - Working humidity [%] - Less than 95%
• - current on the exit [A] - 13
• - overload protection - So
• - Engine - 5.5 kW, 7.5 km
• - engine protection against overheating - Optional multifunction card, analog input A L 3, engine temperature sensor input is acceptable
• - short circuit protection - So
• - Protection against exceeding the maximum current - So
• - Protection against overheating - So
• - Possibility of overloading - Machine type G: 150% rated current 60 S 180% rated current type 3S machine, machine P: 120% of the rated current 60 S 150% rated current 3S
• - Display - Led
• - Maximum frequency - 0 ~ 300 Hz Vector Control, 0 ~ 3200 Hz Control V / F
• - point frequency range [Hz] - 0.00-50.00
• - Tension [V] - 400
• - point time acceleration and release [s] - 0.0-6500.0
• - power [W] - 5500
• - power [W] - 7,5
• - Protection against too high voltage - So
• - PLC driver for working with multiple speeds - Work speed up to 16 segments thanks to the built-in PLC controller or control terminal
• - simulation adjustment - Maximum frequency x 0.025%
• - precision of torque control - + 0.5% (FVC)
• - storage temperature [deg C] - 20-60
• - Raising torque - Automatic torque lifting Manual torque lifting 0.1% ~ 30.0%
• - Speed range - 1: 100 (SVC) 1: 1000 (FVC)
• - Separation V / F - Full separation, semi-separation
• - V / F crook - V / F Three Roads: Linear type Multi-point type V / F W power N
• - Time Control Function [min] - 0.0-6500.0
• - starting moment - Machine G: 0.5 Hz / 150% (SVC) 0 Hz / 180% (FVC), Machine P: 0.5 Hz / 100%
• - accuracy of constant speed - + 0.5% (SVC) ± 0.02% (FVC)
• - rotational protection - So
• - Dimensions (DXSXW) - 25 x 16 x 17 cm
• - weight - 3.3 kg
• - Dimensions of shipment (DXSXW) - 29 x 24 x 25 cm
• - shipping weight - 3.8 kg

Included:

• - Frequency converter
• - No plug in the set
