Manufacturer's code:

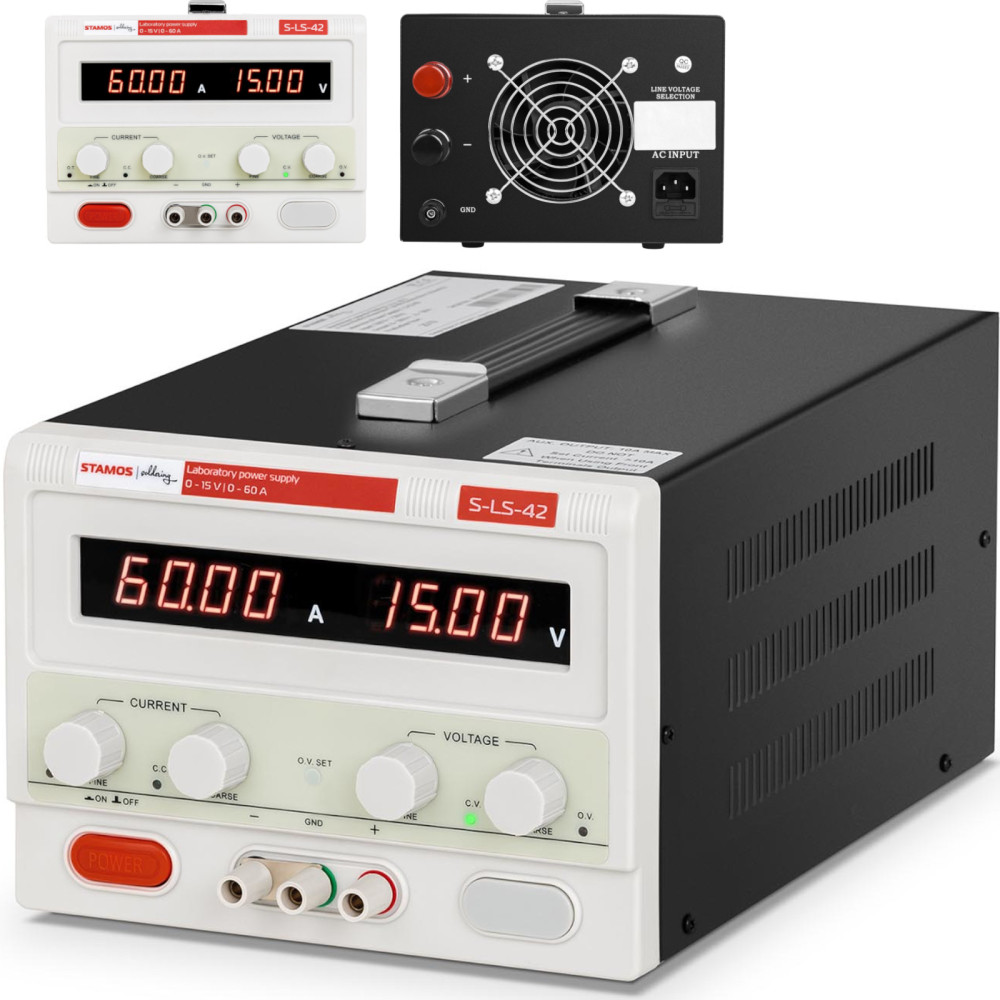

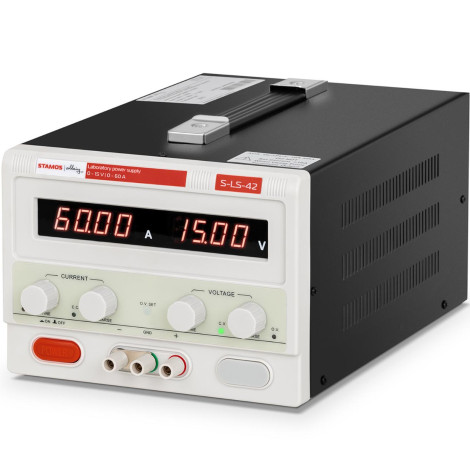

10021072 Laboratory power supply brand Stamos It will work in production, industrial plants and in the telecommunications industry. The power supply will be used in workshops, electronics, laboratories and research institutes. It is used to process a variable current in electricity electricity with a certain voltage and provides it to external electrical devices. The device is effective due to placing faeces with an additional and negative output. The power supply precisely generates low racks current
≤1% RMS and small noise, which prevents damage to the circuit. It has voltage to
15 V and the output current to

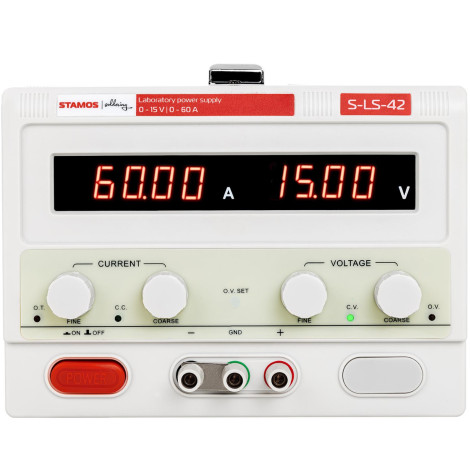

60 a. The power supply has a display
LedOn which we will check the value of electricity and voltage. Precise adjustment of the intensity and output current voltage facilitate the adjustment of the appropriate parameter value. As a result, the power supply offers sustainable parameters. Allows you to work in two modes
C.V. and
C.C.. Safety of work with the device from Stamos Soldering It was provided by four functions: overvoltage protection (
OVP), an overload of the stabilizer (
OCP), overheating (
OTP) and overloading the entire power supply (
OPP). The S-LS-33 power supply is mobile due to a small weight (
3.6 kg) and compact size.
Product features: - - efficiency thanks to the 0-15 V channel and 0-60 A voltage,
- - a simple and precise change of work parameters using knobs,
- - the LED display allows control of voltage and intensity,
- - Work in two modes:C.V. (fixed output voltage) and C.C. (permanent load current),
- - safe thanks to protection against overheating, too high voltage and electricity,
Technical parameters: - - catalog number - 10021072
- - article - New
- - Model - SEC-ĺş-42
- - type - Pulse
- - Display - Led
- - Tension [V] - 230
- - Color - Black
- - fuse [A] - 10
- - power [W] - 900
- - Cooling - Fan, Temperature control
- - Rainting - ≤1% RMS full scale

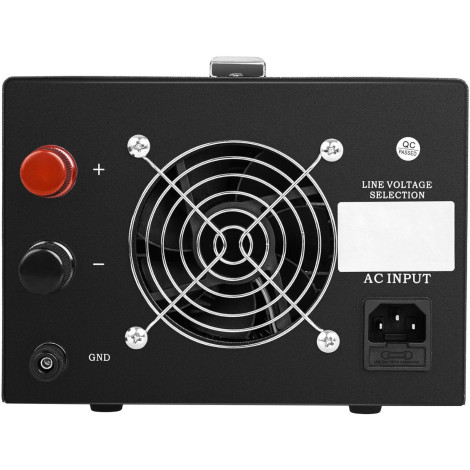

- - connector [mm] - Output sockets, mains power socket, earthing terminal
- - Power cord [m] - 1,75
- - Security - OVP, OCP, OTP, OPP
- - resolution - 100 mV / 10 mA
- - Output voltage [V] - 0 - 15
- - Rated entrance current [A] - 60
- - Current current - N / a
- - starting current [A] - 0 - 60
- - voltage stabilization coefficient - CV≤0.2% reading + 2 digits, CC≤0.5% reading + 2 digits
- - Current stabilization coefficient - ≤0.5% reading + 2 digits
- - storage temperature [deg C] - -80
- - a connection to a computer - N / a
- - Current regulation range [A] - N / a
- - Work temperature range [deg C] - 0-40
- - DC voltage adjustment range [V] - N / a
- - Work stabilization coefficient - CV≤0.2% + 2D / CC≤0.5% + 2D
- - Work stabilization coefficient during load - ≤0.5% + 2D
- - Protection against too high voltage - So
- - Protection against exceeding the maximum current - So
- - Dimensions (DXSXW) [cm] - 32.5 x 20 x 16.5
- - weight [kg] - 3.6
- - Dimensions of shipment (DXSXW) [cm] - 37 x 25 x 21
- - shipping weight [kg] - 3.8
Included: - - Laboratory power supply
- - plugs - 2 pcs.
- - wiring connections - 2 x 30 A
- - Power cord
- - User manual
