Service Laboratory Power Supply 0-30 V 0-5 A DC 205 W

€87.07
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10021064

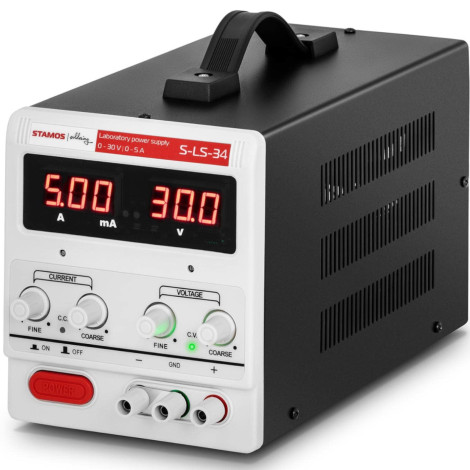

Laboratory power supply Stamos Soldering It will work in production plants, services, laboratories, workshops as well as in the telecommunications industry. The device is used for processing A variable current in the electrical energy of the DC current with a certain voltage and delivery to electronic external devices. The power supply has a channel with a positive and negative output. Equipment precisely generates low rack current currents ≤10% RMS and small noise, which prevents damage to the circuit. It has voltage to 30 V and the output current to 5 a. Clear LED display Allows you to check the current and voltage values. Parameter adjustment takes place using knobs. The equipment allows you to work in two modes C.V. (fixed output voltage) and C.C. (Permanent load current). For safety, it has an overheating protection function. The fan turns on automatically when the power supply exceeds the 40DEG C temperature and turn it off when it drops to 35Deg C. Security systems Before too high voltage and electricity, they reduce the risk of failure. A small weight and compact sizes allow you to easily transport the device. Rubber legs prevent sliding and do not draw work surfaces.
Product features:
  • - Tension up to 30 V and intensity to 5 A,
  • - knobs for adjusting settings,
  • - a clear LED display,
  • - Protection against too high voltage and current and overheating.

Technical parameters:
  • - catalog number - 10021064
  • - article - New
  • - Model - SEC-ĺş-34
  • - connector [mm] - Output sockets, mains power socket, earthing terminal

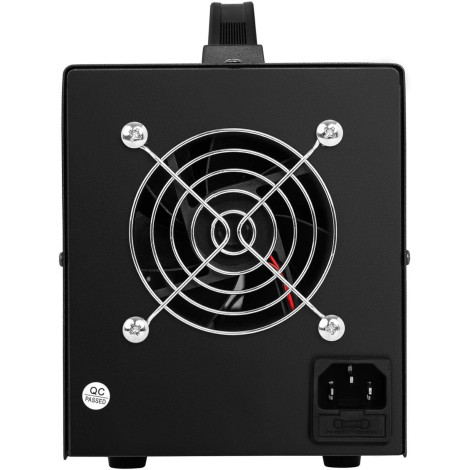

  • - Cooling - Fan, Temperature control
  • - Current regulation range [A] - N / a
  • - Current indication [mA] - 000-999
  • - Color - Black
  • - Current current - N / a
  • - DC voltage adjustment range [V] - N / a
  • - fuse [A] - 5
  • - Work stabilization coefficient during load - N / a
  • - voltage stabilization coefficient - CV≤0.05% + 1MV CC≤0.05% + 10MA
  • - Current stabilization coefficient - CV≤0.1% + 5MV CC≤0.1% + 10mA
  • - Work stabilization coefficient - N / a
  • - Working humidity [%] - <80% relative humidity
  • - type - Pulse
  • - starting current [A] - 0 - 5
  • - Security - OVP, OCP, OTP
  • - Power cord [m] - 1,2
  • - Output voltage [V] - 0 - 30
  • - resolution - 100 mV / 10 mA
  • - Protection against exceeding the maximum current - So
  • - Display - Led
  • - Tension [V] - 230
  • - power [W] - 205
  • - Protection against too high voltage - So
  • - a connection to a computer - N / a
  • - Rainting - CV≤10 MV (RMS) / CC≤20 MA (RMS)
  • - storage temperature [deg C] - -10 - 70
  • - Work temperature range [deg C] - 0-40
  • - storage humidity -
1019572
