Manufacturer's code:

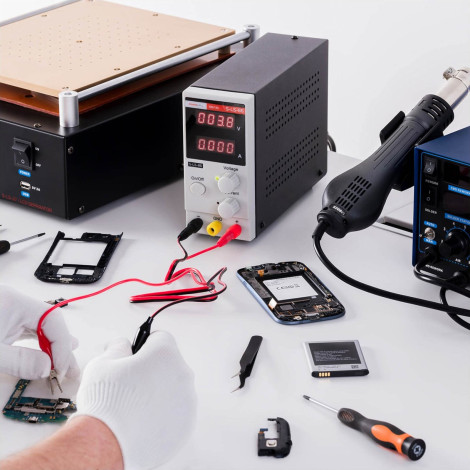

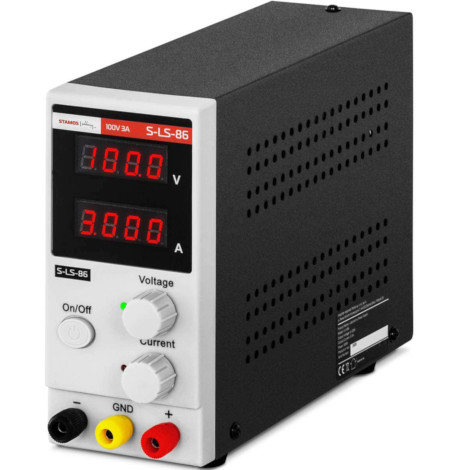

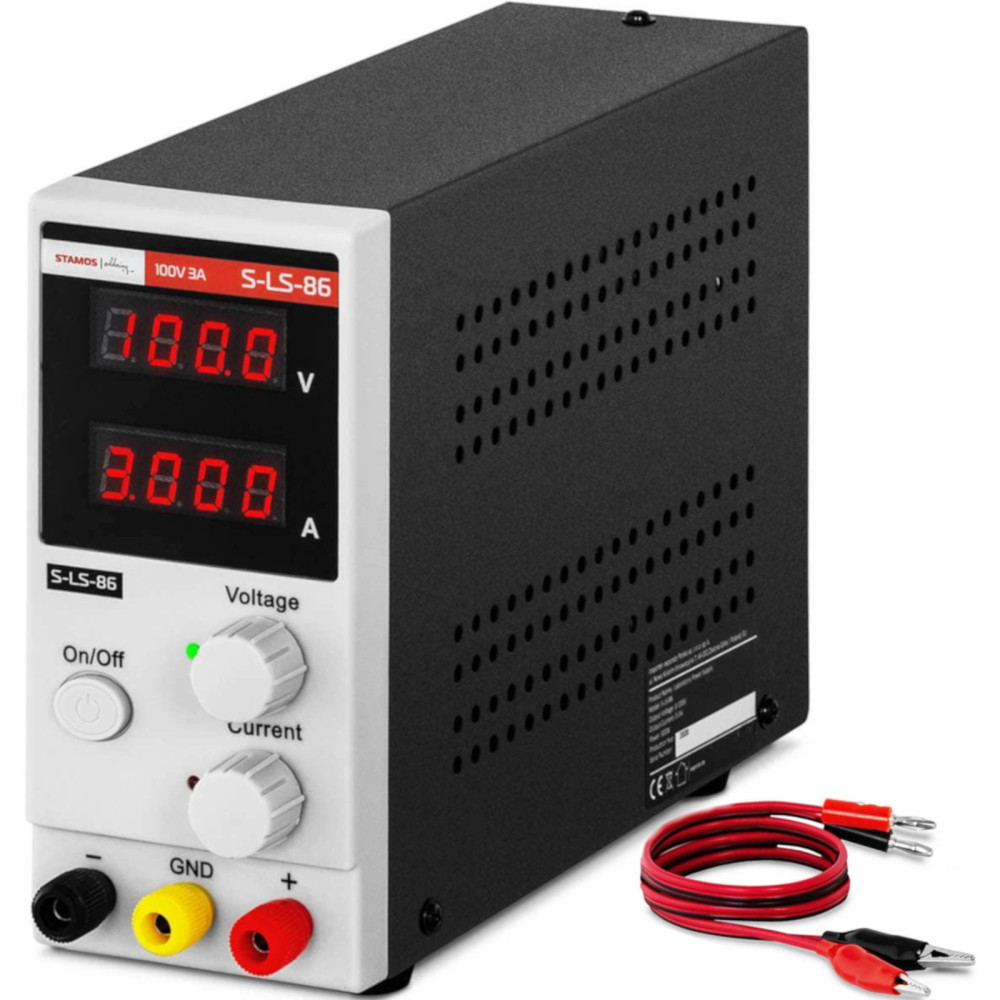

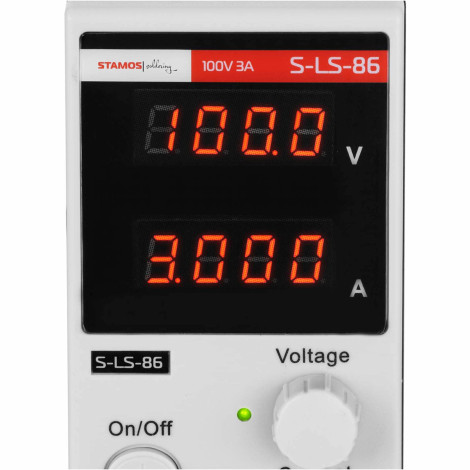

10021177Laboratory power supply Stamos Soldering It will work in industry, laboratories, telecommunications, workshops, etc. The technology used provides a low level of backtotures and noise. Large

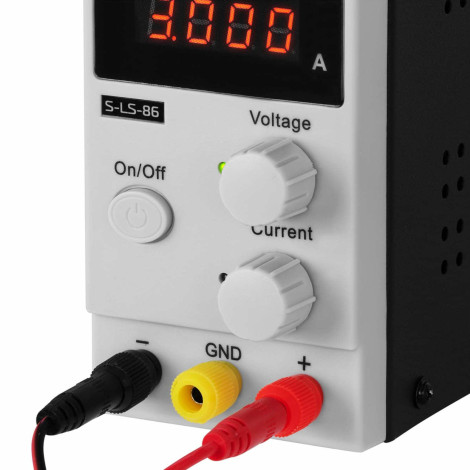

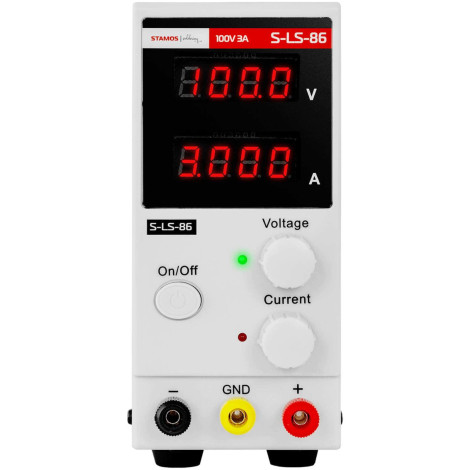

LED displays They allow you to read the set values anytime. Adjusting the settings follow the knob. They allow you to accurately setting the output voltage from
0 to 100 V and output current from
0 to 3 a. If the power supply works as a fixed voltage source (CV), it automatically switches to a fixed current (CA) after reaching the set load limit. This prevents damage to the connected devices. The equipment is equipped with
overload protection (OPP) and
overheating protection (OTP) that automatically starts the fan after exceeding the maximum temperature. Non-slip rubber legs provide stability of the device and protect the surface from scratches.
Product features: - - DC voltage from 0 to 100 V and electricity from 0 to 3 A,
- - quick checking of electricity and output voltage,
- - knobs to set voltage and voltage values,
- - rubber legs do not slip and do not draw surfaces,
- - Transparent control panel with two knobs.
Technical parameters: - - catalog number - 10021177
- - article - New
- - Model - SEC-ĺş-86
- - connector [mm] - Output slots, Network socket, Earthing output

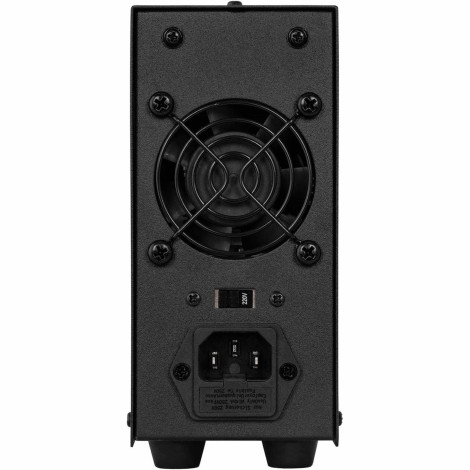

- - Cooling - Fan, Temperature control
- - Color - Black
- - fuse [A] - 5
- - voltage stabilization coefficient - CV 20 MV / CC 20 mA
- - Current stabilization coefficient - CV 50 MV / CC 20 mA
- - type - Pulse
- - starting current [A] - 0 - 3
- - Security - OTP, OPP

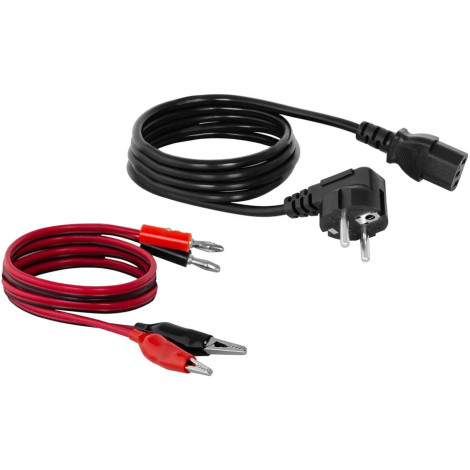

- - Power cord [m] - 1,1
- - Output voltage [V] - 0 - 100
- - Display - Led
- - Tension [V] - 230
- - power [W] - 300
- - Rated entrance current [A] - 3
- - Rainting - 30 MV / 20 mA

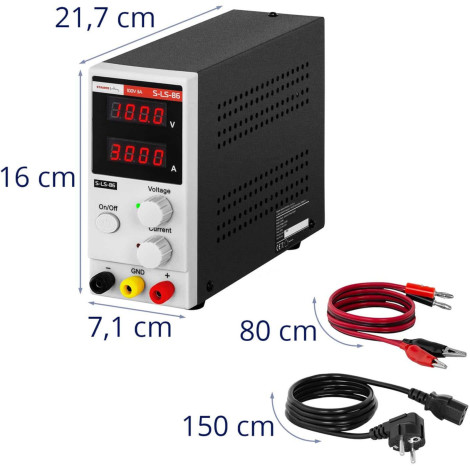

- - Dimensions (DXSXW) - 21.7 x 7.1 x 16 cm
- - weight - 1.5 kg
- - Dimensions of shipment (DXSXW) - 30.3 x 10.8 x 20 cm
- - shipping weight - 1.78 kg
Included: - - Laboratory power supply
- - User manual
