Electronic load S-LS-118 programmable 500W 0-40A

€851.06
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10021494

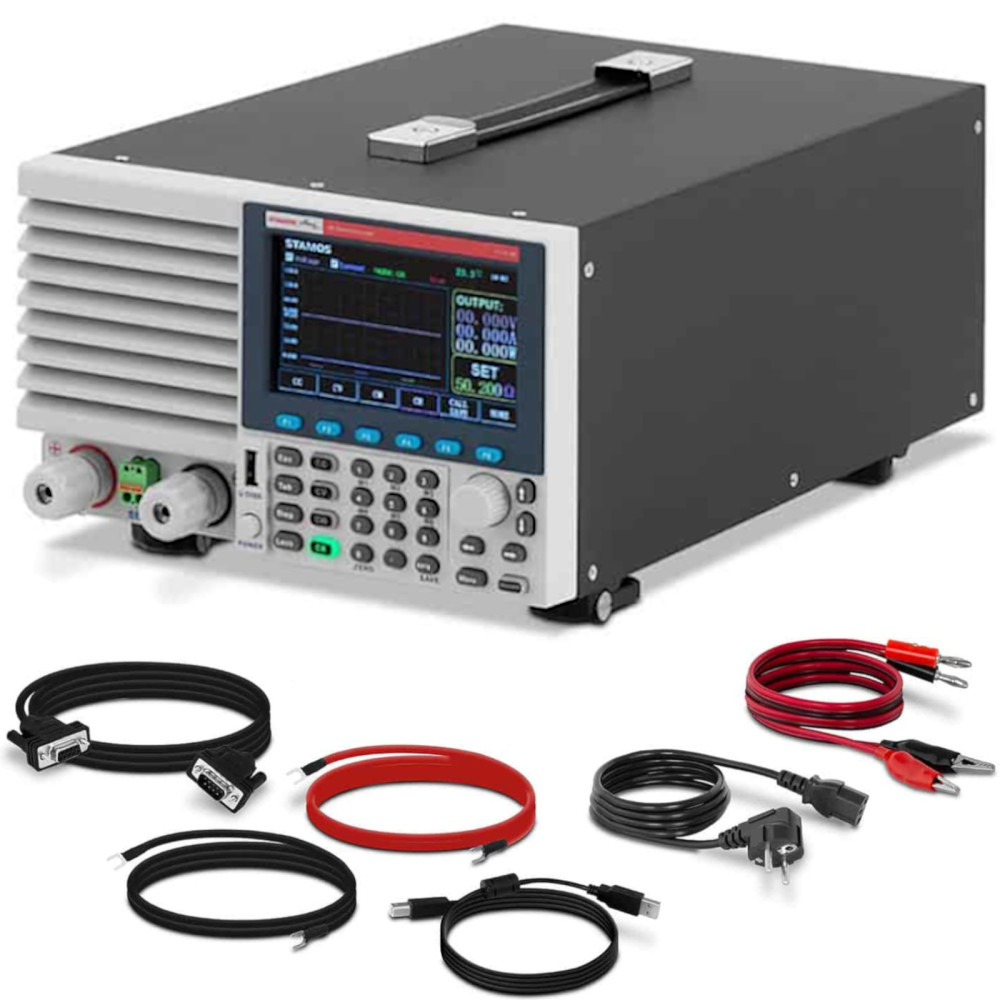

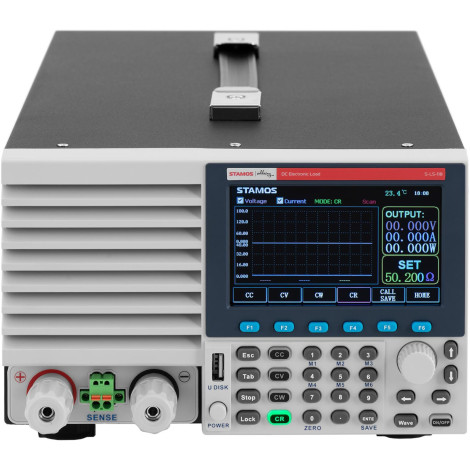

Electronic load brand Stamos Soldering Provides reliable results of measurements both in simple and complex applications. The device has connectors USB, RS232, GPIB and LANYou can connect them to your computer without any problem. Electronic load ensures precise power supply with precise resolution. There are four operating modes to choose from: CV / CC / CR / CP. The device is supported using a transparent control panel. The adjustment knob is voltage and current. The LCD display also shows the course. The course of the course is saved by USB. In addition, you have access to 100 memory. A clear LCD display shows the current and voltage values with accuracy accordingly 0.1 MA and 0.1 MV. The voltage is set in the range of 0 - 150 V, and the current can be adjusted in the range of 0 - 40 A. Thanks to 100 programmable memory places, service is extremely convenient. Solid load setting (CV), constant current (CC), constant load resistance (CR) or constant power (CP), allows for precise adjustment. The electronic load is used for automatic testing, for testing batteries or solar panels, as well as for OPP and OCP tests. In addition, the device offers short-circuit analysis functions, current monitoring, shutdown memory and remote inquiry. The DC electrical load is protected against excessive power, temperature, voltage and current. Thanks to this, you can always use them safely in everyday work and take full advantage of 500 in even in dynamic mode up to 10 kHz.
Product features:
  • - voltage and current runs are displayed on the LCD screen with an accuracy of 0.1 MV / 0.1 mA,
  • - USB, RS232, LAN and GPIB interfaces,
  • - 100 memory places and 4 operating modes are available: CV / CC / CR / CP,
  • - numerous test functions for OPP, OCP and batteries, as well as short-circuit functions, electricity monitoring, shutdown memory and remote query,
  • - 500W yield plus Dynamic mode up to 10 kHz.

Technical parameters:
  • - catalog number - 10021494
  • - article - New
  • - Model - SEC-ĺş-118
  • - Material - Powder-painted steel
  • - Accuracy - CC mode (0.05% Settings + 0.045% Off) / CV mode (0.05% Settings + 0.025% Off) / CR mode (0.05% SETTINGS + 0.025% OFF) / CW mode (0.1% SETTING + 0.1% off)
  • - Current regulation range [A] - 0 - 3/0 - 40
  • - Color - Black, gray
  • - Input resistance [MΩ] - 0,15
  • - overload protection - Not
  • - Protection against too high voltage [V] - 155
  • - protection temperature [deg C] - 85
  • - Security - Starting from over 520 W and 42 a
  • - Power cord [m] - 1,2
  • - resolution - CC mode 0.1 MA, 1 MA / CR mode 0.1 Ω / CW mode 0.01 w / voltage measurement 0.1 MV, 1 MV / Current measurement 0.1 MA, 1 mA / Measurement of power 0.1 W
  • - Protection against exceeding the maximum current - So
  • - Protection against overheating - Not
  • - Display - LCD
  • - power [W] - 500
  • - Protection against too high voltage - So

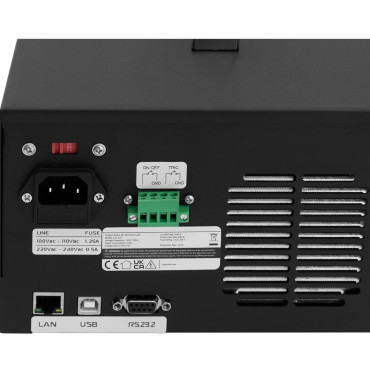

  • - a connection to a computer - LAN / USB / RS232 / GPIB
  • - Rated entrance current [A] - 0 - 40
  • - voltage range [V] - 0 - 18/0 - 150
  • - possible to use - 100 settings
  • - Dimensions (DXSXW) - 38.5 x 21.5 x 15 cm
  • - weight - 7 kg
  • - Dimensions of shipment (DXSXW) - 49 x 35 x 48 cm
  • - shipping weight - 7.94 kg

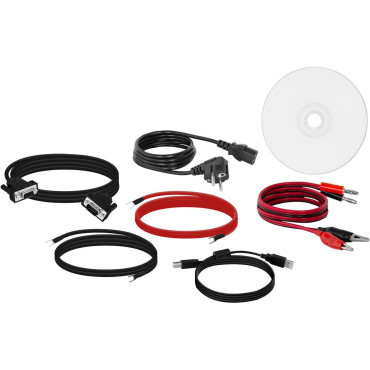

Included:
  • - S-LS-118 electronic load
  • - CD software
  • - USB cable
  • - RS232 cable
  • - Power cord
