Manufacturer's code:

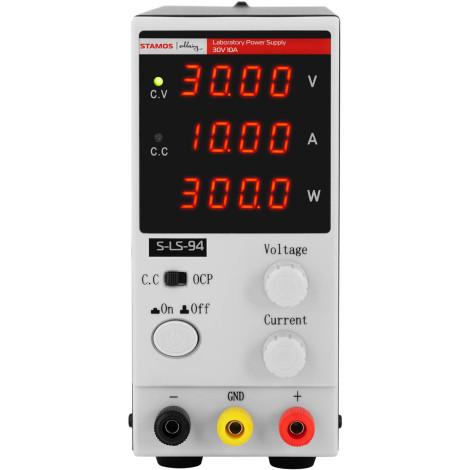

10021173Laboratory power supply Stamos Soldering Used to power external devices with a solid. Equipment will work in workshops, sites, laboratories and research institutes. A large LED display allows you to easily read the set values of the output, current and power voltage. The voltage is adjusted in the range
0-30 V A current
0-10 a. If the power supply acts as a fixed voltage source (CV), the device automatically switches to a fixed current operation (CA) as soon as the load limit is reached. This prevents damage to the connected devices. The equipment has overcurrent protection (OCP), overload protection (OPP) and protection against overheating (OTP). The integrated fan adapts to the temperature conditions on the device, thus providing optimal cooling. In addition, the audible alarm informs about the threat. Non-slip legs ensure stability of equipment on the work surface.
Product features: - - wide range of 0-30 V voltage, electricity 0-10 A,
- - 4 digital LED display,
- - protection against overheating, overcurrent and excessive load,
- - intelligent temperature control and automatic change from constant current permanently tension,
- - Transparent control panel with knob and 4 mm socket.
Technical parameters: - - catalog number - 10021173
- - article - New
- - Model - SEC-ĺş-94
- - current stability - CC ≤ 0.3% FS
- - connector [mm] - 4
- - Cooling - Fan
- - Current regulation range [A] - 0-10
- - Display accuracy - 0,1-0,001
- - Color - Gray
- - Current current - 0-10
- - DC voltage adjustment range [V] - 0-30
- - fuse [A] - 10
- - Insulation resistance [MΩ] - ≥100
- - voltage stabilization coefficient - CV ≤ 0.3% + 10 MV CC ≤ 0.3% + 10 mA
- - Current stabilization coefficient - CV ≤ 0.5% FS CC ≤ 0.3% FS
- - Work stabilization coefficient - CV ≤ 0.3% +10 MV CC ≤ 0.3% +10 mA
- - Working humidity [%] -
