Manufacturer's code:

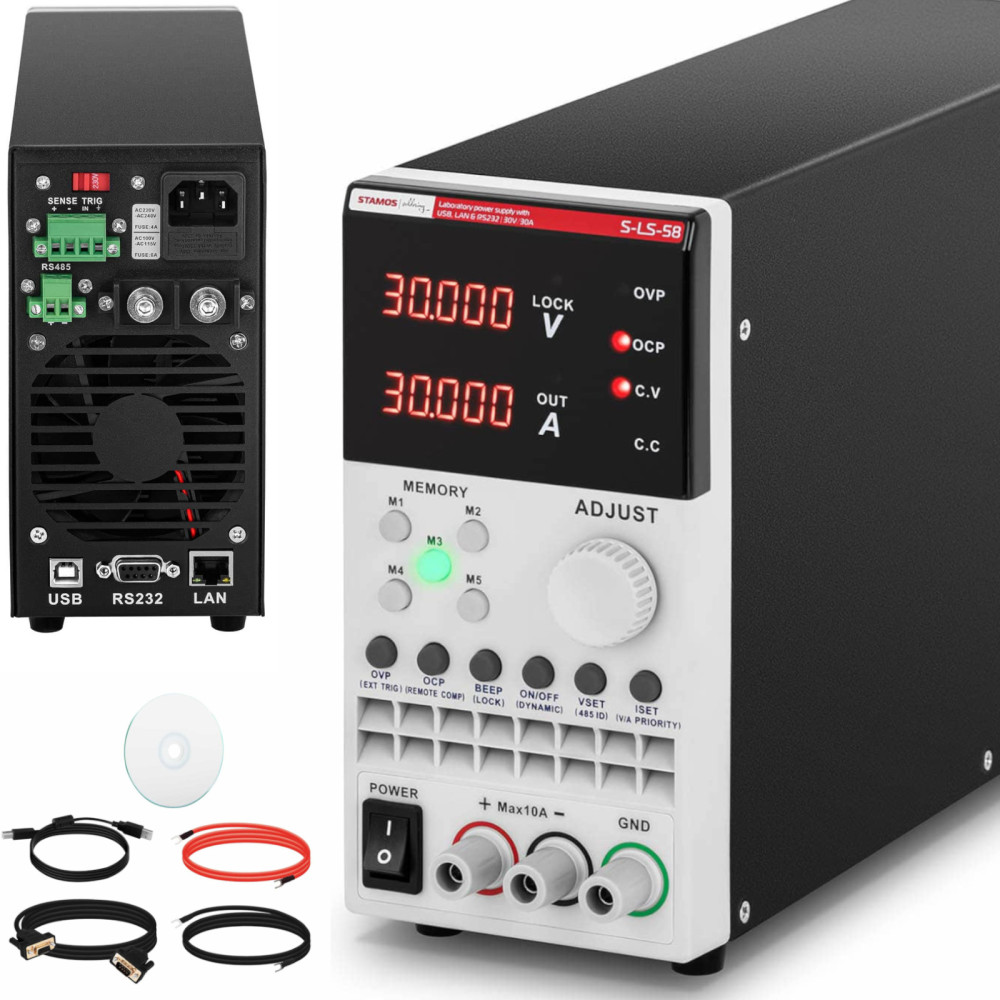

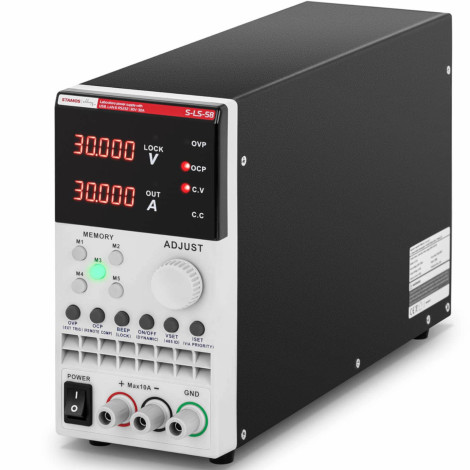

10021135Laboratory power supply Stamos Soldering It is used to process a variable current in the electricity electricity with a certain voltage and delivering it to electronic external devices. Equipment will work in workshops, sites, laboratories and research institutes. The efficiency of the power supply is the merit of the channel with the output
positive and negative. The voltage is adjustable in the range
0-30 V, starting current
0-30 a. The power of the device is
300 W, 1mA resolution. A five-digit display ensures free control of parameters. The device's memory is 5 records. There is also the option of choosing one of 2 operation modes: stabilization of output current (CC) and voltage stabilization (CV). Communication with computer equipment was provided via USB, RS232 and LAN ports. The set includes cables and a CD with software. Safety of use provides and IEC protection class, IP20 protection class, as well as fuse 4 and 250 V. The fan prevents overheating of the equipment.
Product features: - - adjustment range 0-30 V, 0-30 A, 300W with high frequency 1 mA,
- - low noise and pulsation,
- - programmable DC power supply with USB, RS232 and LAN interfaces,

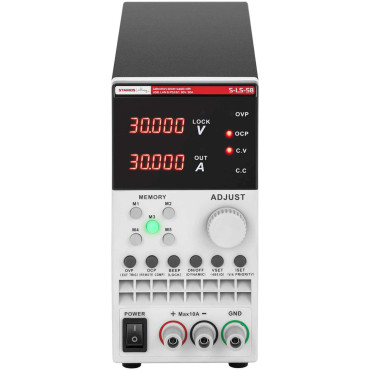

- - a five-digit LED screen (for voltage and intensity),
- - 5 record memory capacity,
- - Protection against exceeding the permissible voltage, intensity and temperature limit.
Technical parameters: - - catalog number - 10021135
- - article - New
- - Model - SEC-ĺş-58
- - current stability - ≤0.5% + 5 ma
- - Cooling - Fan
- - Current regulation range [A] - 0 - 30
- - Display accuracy - ≤0.5% + 3 MV
- - Ammeter - 5 digits
- - Color - Black
- - DC voltage adjustment range [V] - 0 - 30
- - fuse [A] - 4 A / 250 V
- - Insulation resistance [MΩ] - > 500
- - Work stabilization coefficient during load - ≤ 0.01% + 3 MV
- - voltage stabilization coefficient - Voltage: ≤0,01% + 3 MV current: ≤0.1% + 3 mA
- - Current stabilization coefficient - Voltage: ≤0,01% + 2 MV current: ≤0.1% + 5 mA
- - Work stabilization coefficient - ≤ 0.01% + 3 MV
- - Working humidity [%] - <80
- - type - Pulse
- - starting current [A] - 0 - 30
- - Returning resolution - Voltage: 1 MV Electricity: 1 MA
- - Security - OVP, OCP
- - Power cord [m] - 1,2
- - reaction time [s] - 100 s
- - Output voltage [V] - 0 - 30
- - resolution - Voltage: 1 MV Electricity: 1 MA
- - Display - Led
- - Relative permissible humidity of escaplet and storage [%] - <70
- - Accuracy of parameter settings (25DEG C ± 5DEG C) - Voltage: ≤0.5% + 3 MV current: ≤0.5% + 5 mA
- - Memory - 5 groups
- - Tension [V] - 230
- - power [W] - 300
- - Response time to the increase / voltage / current decrease (at 10% load) [ms] - 50

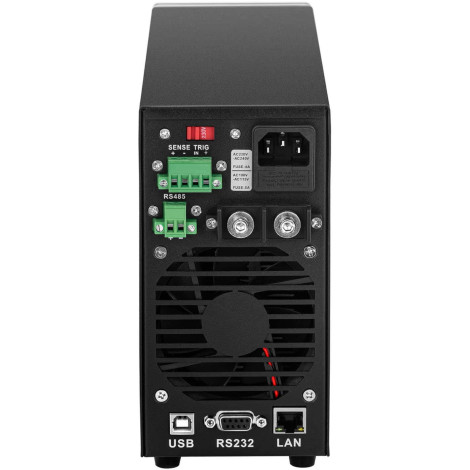

- - a connection to a computer - USB, RS232, LAN
- - Rated entrance current [A] - Max. 30.5
- - Rainting - Voltage: ≤ 1 MV RMS Electricity: ≤ 3 MA RMS
- - voltmeter - 5 digits
- - storage temperature [deg C] - -10 ~ 70
- - Temperature coefficient - ≤150 ppm
- - Work temperature range [deg C] - 0 - 40
- - voltage stability - ≤0.5% + 3 MV
- - storage humidity - <70%
- - USB cable length [m] - 1,5
- - Dimensions (DXSXW) - 34 x 9.1 x 18.4 cm
- - weight - 4.44 kg
- - Dimensions of shipment (DXSXW) - 28.5 x 40.5 x 20 cm
- - shipping weight - 5.04 kg

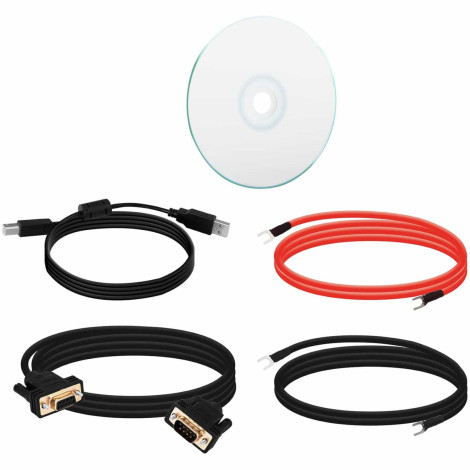

Included: - - Laboratory power supply

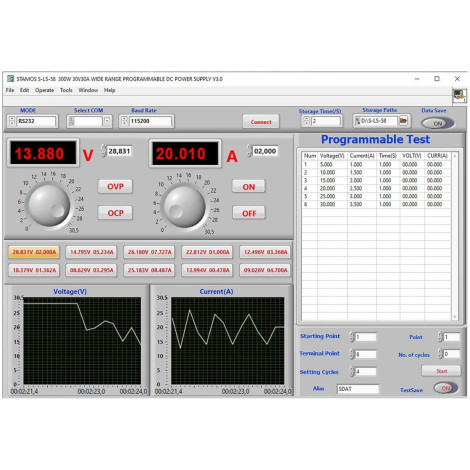

- - CD with software
- - Power cord
- - USB cable
- - RS232 cable
- - Measuring wire 30 A
- - User manual
