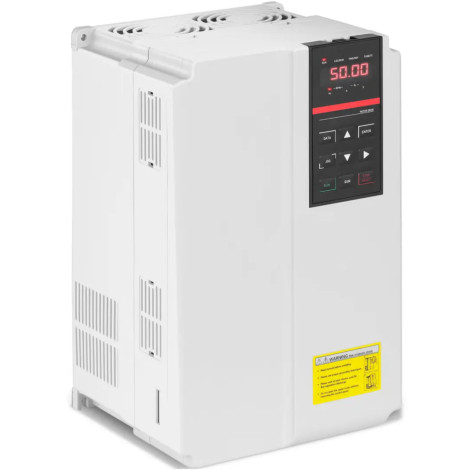

LED frequency converter 11 kW 15 HP 380V 50-60 Hz

€488.90
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10061536
Brand frequency converter MSW This high-performance vector inverter of general low-speed destination and high torque. Devices should be used inside the rooms and protect against direct sunlight, dust, corrosion gases and flammable, oil mist, steam, water, salt, etc. inverter Three-phase 380 V It has a speed sensor vector control, sensorless and v / F control vector control. It also supports Separation control V / F. Easy control of settings enables LED display. The equipment is equipped with a brake. Motor 11 kW power It has a number of collateral, including before overheating - an optional multifunction card and analog input A L 3. The engine temperature sensor input is acceptable. The supporting frequency can be adjusted automatically according to the load characteristics. The frequency converter has a linear and linear acceleration or by curve S and four types of acceleration and release time (0.0-6500.0 SEC). It allows you to achieve the speed of work up to 16 segments thanks to the built-in PLC controller or control terminal. Automatic voltage adjustment makes when the mains voltage changes, the output voltage can still be kept constant (25 A). Automatic current and voltage restriction During operation, it prevents switching off due to overcurrent or overvoltage. Automatic torque limitation avoids overcurrent shutdown Control can be held in a closed loop vector mode.
Product features:
  • - 11 kW / 15 HP motor with 380 V three-phase support,
  • - vector control (with and without sensor) and V / F control for the optimal torque curve,
  • - the LED display ensures a convenient setting of parameters and their control,
  • - various interfaces and extensive configuration parameters for a wide range of applications,
  • - Thanks to the protection against overheating, overvoltage, updating, overcurrent, overload and short circuits (motor-protected motor).

Technical parameters:
  • - catalog number - 10061536
  • - article - New
  • - Model - MSW-Fi-11000
  • - Display - Led
  • - Tension [V] - 380
  • - V / F crook - Three Roads V / F: Multi-point type, Linear type, Infinite curve V / F power
  • - braking time - Braking time: 0 ~ 36 S
  • - Control mode - Vector Control in Open Loop (SVC) V / F, Vector Control in Closed Loop (FVC), Control V / F
  • - Current value [%] - 0.0-100
  • - Raising torque - Automatic torque lifting, manual lifting of torque 0.1-30%
  • - power [W] - 7,500
  • - starting moment - Machine G: 0.5 Hz / 150% (SVC), 0 Hz / 180%, Machine P (FVC): 0.5 Hz / 100%
  • - Separation V / F - Full separation, Separation
  • - carrier frequency - 0.5 ~ 16 kHz
  • - Maximum frequency - Vector Control: 0 ~ 300 Hz, Control V / F: 0 ~ 3200 Hz V / F
  • - Possibility of overloading - Machine type G: 150% of the 60S rated current, 180% of the 3S rated current, type P: 120% of the rated current 60s, 150% rated current 3S
  • - DC braking frequency - Up to 0.00 Hz to approx. Max. Frequency
  • - simulation adjustment - Maximum frequency x 0.025%
  • - current on the exit [A] - 25
  • - point frequency range [Hz] - 0.00-50.00
  • - Speed range - 1: 100 (SVC), 1: 1000 (FVC)
  • - accuracy of constant speed - + 0.5% (SVC), ± 0.02% (FVC)
  • - Time Control Function [min] - 0.0-6500.0
  • - precision of torque control - + 0.5% (FVC)
  • - engine protection against overheating - Optional multi-purpose card, analogue A L 3, acceptable engine temperature sensor input
  • - ambient temperature [deg C] - 10-40
  • - Work humidity [%] - Less than 90%
  • - storage temperature [deg C] - 20-60
  • - PLC driver for working with multiple speeds - Achieve the speed of operation up to 16 segments thanks to the built-in PLC controller or control terminal
  • - acceleration and release curve - Exemption and releasing linear or according to curve S, four types of acceleration and release time 0.0 ~ 6500.0 s Range of acceleration and releasing time 0.0 ~ 6500.0 S
  • - point time acceleration and release [s] - 0.0-6500.0
  • - Key lock - So
  • - Protection against overheating - So
  • - overload protection - So
  • - rotational protection - So
  • - short circuit protection - So
  • - Protection against too high voltage - So
  • - Protection against exceeding the maximum current - So
  • - Accuracy of digital regulation [Hz] - 0.01 Hz
  • - current on the entrance [A] - 26 A
  • - Dimensions (DXSXW) - 32 x 21 x 19 cm
  • - weight - 6 kg
  • - Dimensions of shipment (DXSXW) - 41 x 31 x 29 cm
  • - shipping weight - 7 kg

Included:
  • - Frequency converter
