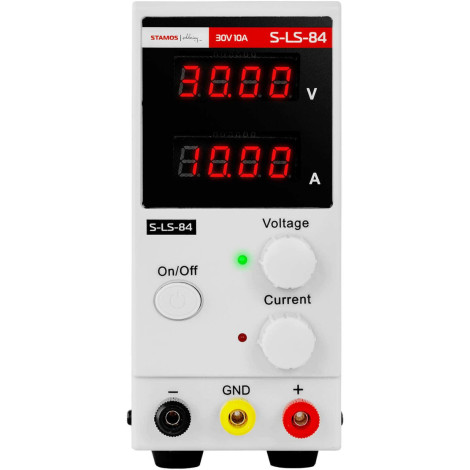

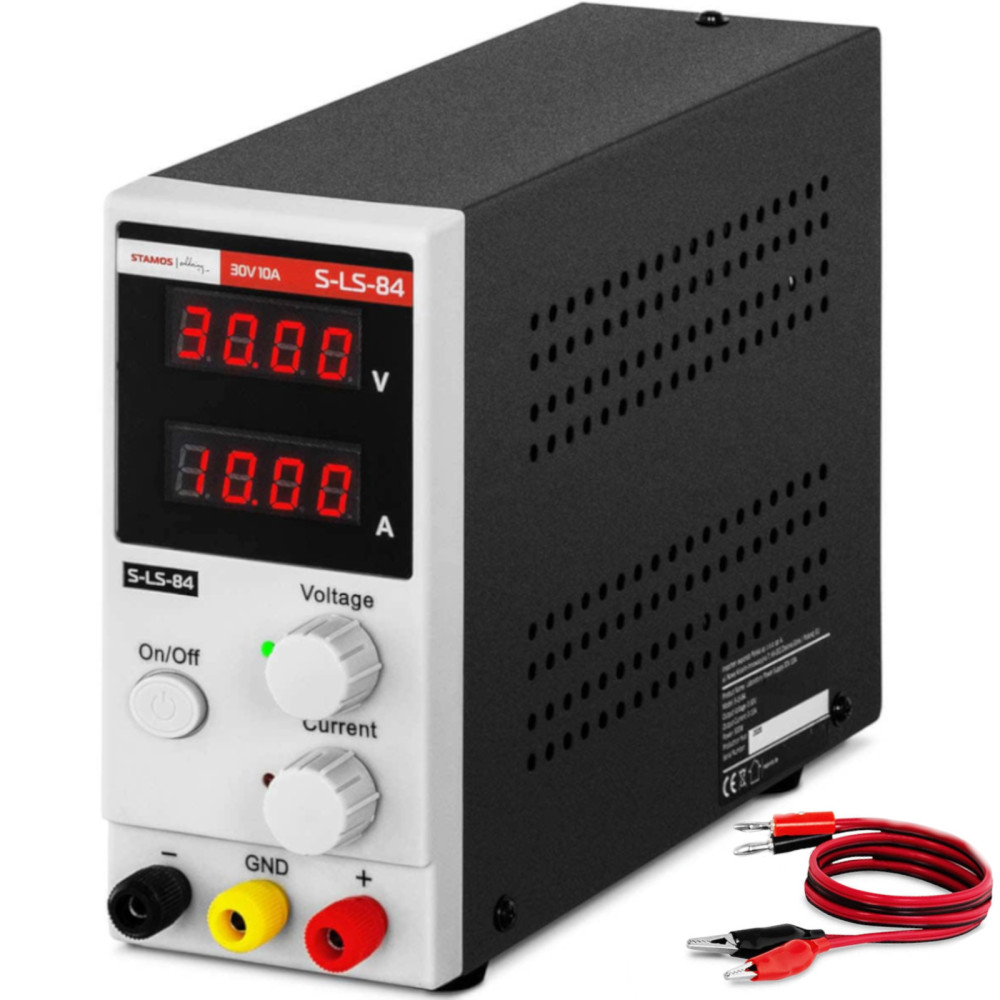

Service Laboratory Power Supply 0-30 V 0-10 A 300 W

Manufacturer's code: 10021175
Laboratory power supply Stamos Soldering It will work in production, industrial, laboratories and research institutes as well as a telecommunications industry. Serve Processing of the power supply in the electrical energy of the DC current with a certain voltage and delivery to electronic external devices. The power supply is equipped with one channel. It allows precise voltage adjustment in the 0-30 V and output current of 0-10 A. The parameter adjustment takes place using knobs. The power of the device is 300 W. The LED display allows you to conveniently read the current values and output voltage. The device has a starting current stabilization mode (CC) and voltage stabilization (CV). It has also been equipped with thermal protection (OTP) and overloading (OPP). The fan provides the optimal temperature of the hardware. Rubber legs prevent slipping and do not draw surfaces.
Product features:

• - 300 W power,
• - 0-30 V and 0-10 A regulation,
• - adjustment using knobs,
• - LED display,
• - OTP and OPP protection.

Technical parameters:

• - catalog number - 10021175
• - article - New
• - Model - SEC-ĺş-84
• - connector [mm] - Output sockets, mains power socket, earthing terminal

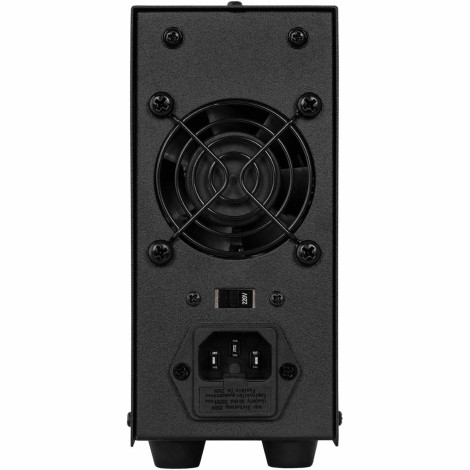

• - Cooling - Fan, Temperature control
• - Color - Black
• - fuse [A] - 10
• - voltage stabilization coefficient - CV≤20 MV, CC≤20 MA
• - Current stabilization coefficient - CV≤50 MV, CC≤20 MA
• - type - Pulse
• - starting current [A] - 0 - 10
• - Security - OTP, OPP
• - Power cord [m] - 1,1
• - Output voltage [V] - 0 - 30
• - Display - Led
• - Tension [V] - 230
• - power [W] - 300
• - Rated entrance current [A] - 10
• - Rainting - 30 MV, 20 mA
• - Dimensions (DXSXW) - 21.7 x 7.1 x 16 cm
• - weight - 1.5 kg
• - Dimensions of shipment (DXSXW) - 30.5 x 11 x 19.8 cm
• - shipping weight - 1.77 kg

Included:

• - Laboratory power supply
• - Connection cable
• - Power cord
• - User manual
