Manufacturer's code:

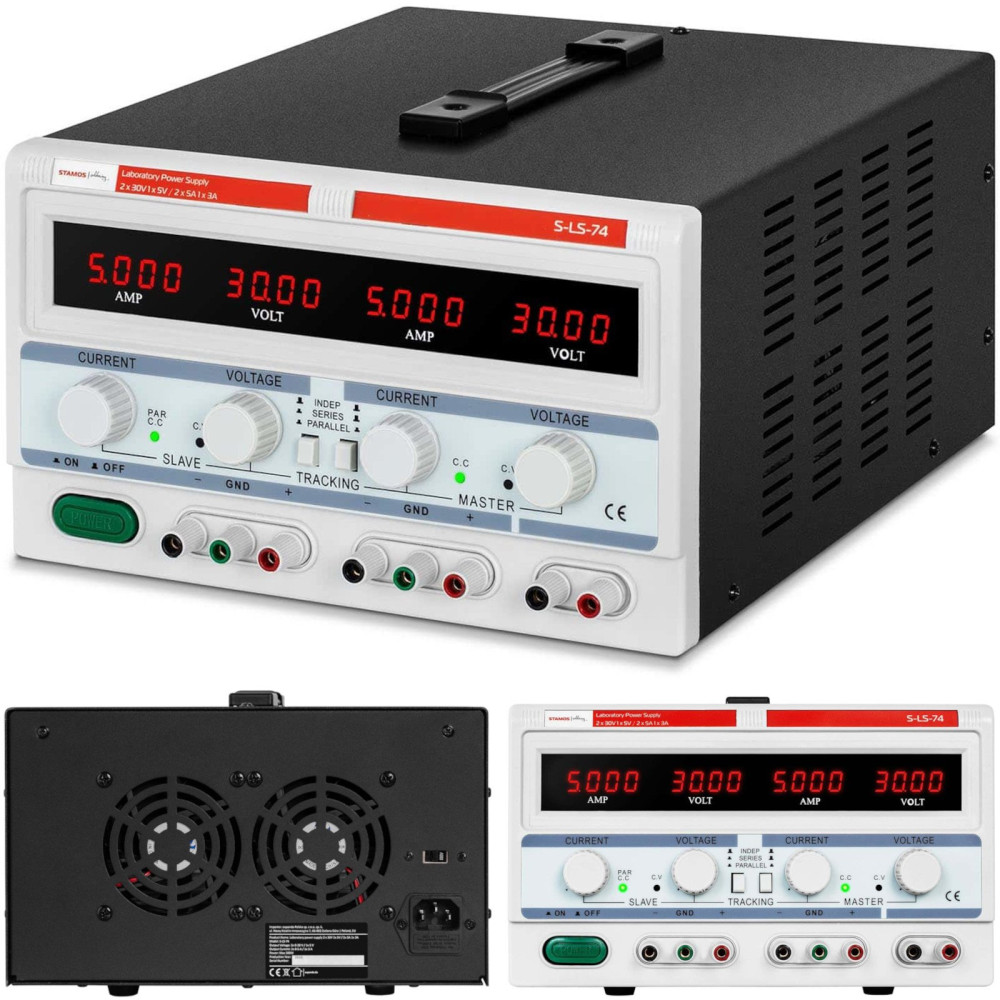

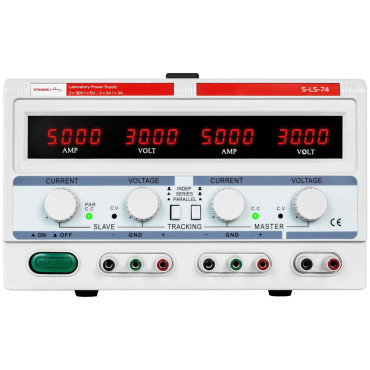

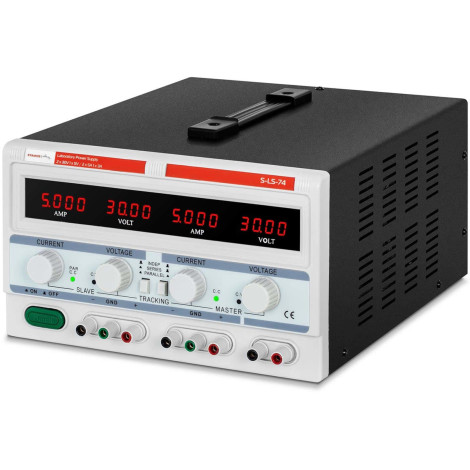

10021165Laboratory power supply Stamos Soldering Allows you to provide an external fixed current with a certain voltage. It will work in industry, laboratories, telecommunications, workshops and more. The device has
Three channels. The first two are distinguished by parameters 0-30 V, 0-5 A, and the third 5 V, 3 A. Additionally for channels I and II, it is possible to set
parallel or serial work. Thanks to this, two independent inputs or one with a double voltage (60 V) or output current 10 A can be obtained. Adjusting the parameters of the power supply by means of knobs. They are displayed using
4 LED displays. Screens present 4-digit values. The security system provides protection against overheating, starts the fan when the temperature is too high. Compact dimensions allow you to fit the device even on a small position.
Product features: - - maximum output power at the level of 300 W,
- - the possibility of choosing three channels (channels I and II - 0-30 V, 0-5 A, channel III - 5 V, 3 a),
- - the knobs panel provides easy and accurate setting of voltage and current values,
- - readability - 4 LED displays present parameters,
- - Rubber legs prevent the surface to slide and draw the surface.
Technical parameters: - - catalog number - 10021165
- - article - New
- - Model - SEC-ĺş-74
- - connector [mm] - Output socket, Network socket, Earth output terminal

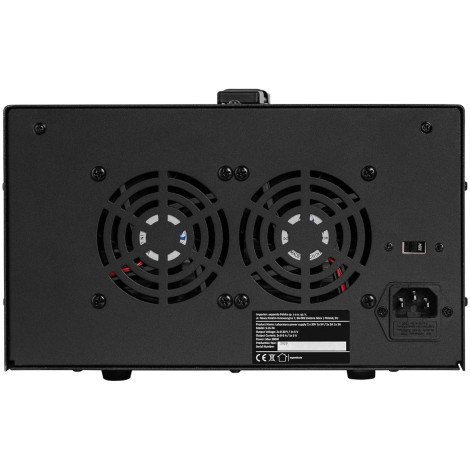

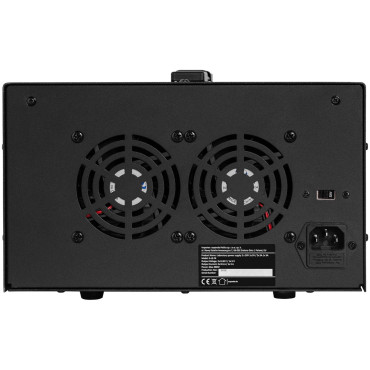

- - Cooling - Fan, Temperature control
- - Current regulation range [A] - Channel I / II 0 ÷ 5, channel III 3
- - Color - Black
- - DC voltage adjustment range [V] - Channel I / II 0-30, channel III 5
- - fuse [A] - 10
- - Work stabilization coefficient during load - CV≤0,01% + 5 MV, CC≤0.2% + 3 MA
- - Work stabilization coefficient - CV≤0,01% + 2 MV, CC≤0.1% + 3 MA
- - type - Transformer
- - Security - OTP
- - Power cord [m] - 1,1
- - Display - Led
- - Tension [V] - 230
- - power [W] - 300
- - Rainting - > 5 MV RMS <3 MA RMS
- - voltage range [V] - -
- - Dimensions (DXSXW) - 26.1 x 31.3 x 16 cm
- - weight - 10 kg
- - Dimensions of shipment (DXSXW) - 41.5 x 33 x 22.5 cm
- - shipping weight - 11.76 kg
Included: - - Laboratory power supply

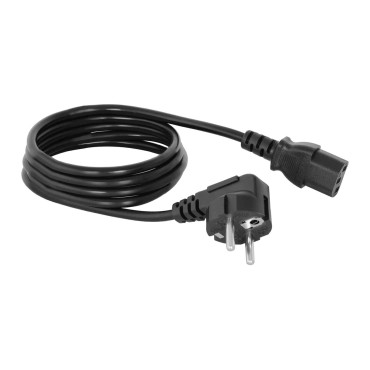

- - Power cord
- - User manual
