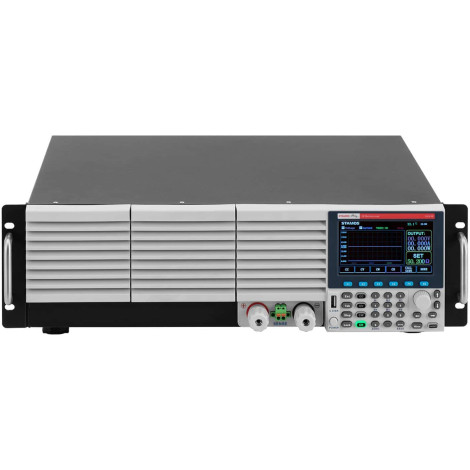

Electronic load S-LS-119 programmable 1500w 0-40a

€1,613.35
Tax included
Last items in stock
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10021495
Electronic load brand Stamos Soldering Provides reliable results of measurements both in simple and complex applications. The device has a USB, RS232, GPIB and LAN connectors, which allows you to easily connect them to your computer. Electronic load ensures precise power supply with precise resolution. The load has 4 modes of operation: CV / CC / CR / CP. The device is supported using a transparent control panel. The knob allows precise voltage and current setting. LCD display This also shows as a course. The course of the course is saved by USB. Equipment has up to 100 memory. A clear LCD display shows the current and voltage values with an accuracy of 0.1 mA and 0.1 MV. The voltage is set in the range 0 - 150 Vand the current can be adjusted in the range 0 - 40 a. Thanks to 100 programmable memory places, service is extremely convenient. Solid load setting (CV), constant current (CC), constant load resistance (CR) or constant power (CP), allows for precise adjustment. The electronic load is used for automatic testing, for testing batteries or solar panels, as well as for OPP and OCP tests. In addition, the device offers short-circuit analysis functions, current monitoring, shutdown memory and remote inquiry. The DC electrical load is protected against excessive power, temperature, voltage and current. Thanks to this, you can always use them safely in everyday work and take full advantage of 1500 power even in dynamic mode up to 10 kHz.
Product features:
  • - voltage and current runs are displayed on the LCD screen with an accuracy of 0.1 MV / 0.1 mA,
  • - USB, RS232, LAN and GPIB interfaces,
  • - 100 memory places and 4 operating modes are available: CV / CC / CR / CP,
  • - numerous test functions for OPP, OCP and batteries, as well as short-circuit functions, electricity monitoring, shutdown memory and remote query,
  • - 1500 power plus dynamic mode up to 10 kHz.

Technical parameters:
  • - catalog number - 10021495
  • - article - New
  • - Model - SEC-ĺş-119
  • - Material - Powder-painted steel
  • - Accuracy - CC mode (0.05% Settings + 0.045% Off) / CV mode (0.05% Settings + 0.025% Off) / CR mode (0.05% SETTINGS + 0.025% OFF) / CW mode (0.1% SETTING + 0.1% off)
  • - Current regulation range [A] - 0 - 3/0 - 40
  • - Color - Black, gray
  • - Input resistance [MΩ] - 0,15
  • - Protection against too high voltage [V] - 155
  • - protection temperature [deg C] - 85
  • - Security - Starting from over 1550 W and 42 A
  • - Power cord [m] - 1,2
  • - resolution - CC mode 0.1 MA, 1 MA / CR 16 bit / mode / CW mode 0.01 w / voltage measurement 0.1 MV, 1 MV / Current measurement 0.1 MA, 1 MA / Power Measurement 0.1 W
  • - Protection against exceeding the maximum current - So
  • - Display - LCD
  • - power [W] - 1500
  • - Protection against too high voltage - So
  • - a connection to a computer - LAN / USB / RS232 / GPIB
  • - Rated entrance current [A] - 0 - 40
  • - voltage range [V] - 0 - 18/0 - 150
  • - possible to use - 100 settings
  • - Dimensions (DXSXW) - 47 x 38 x 15 cm
  • - weight - 14.85 kg
  • - Dimensions of shipment (DXSXW) - 66 x 63 x 33 cm
  • - shipping weight - 19 kg

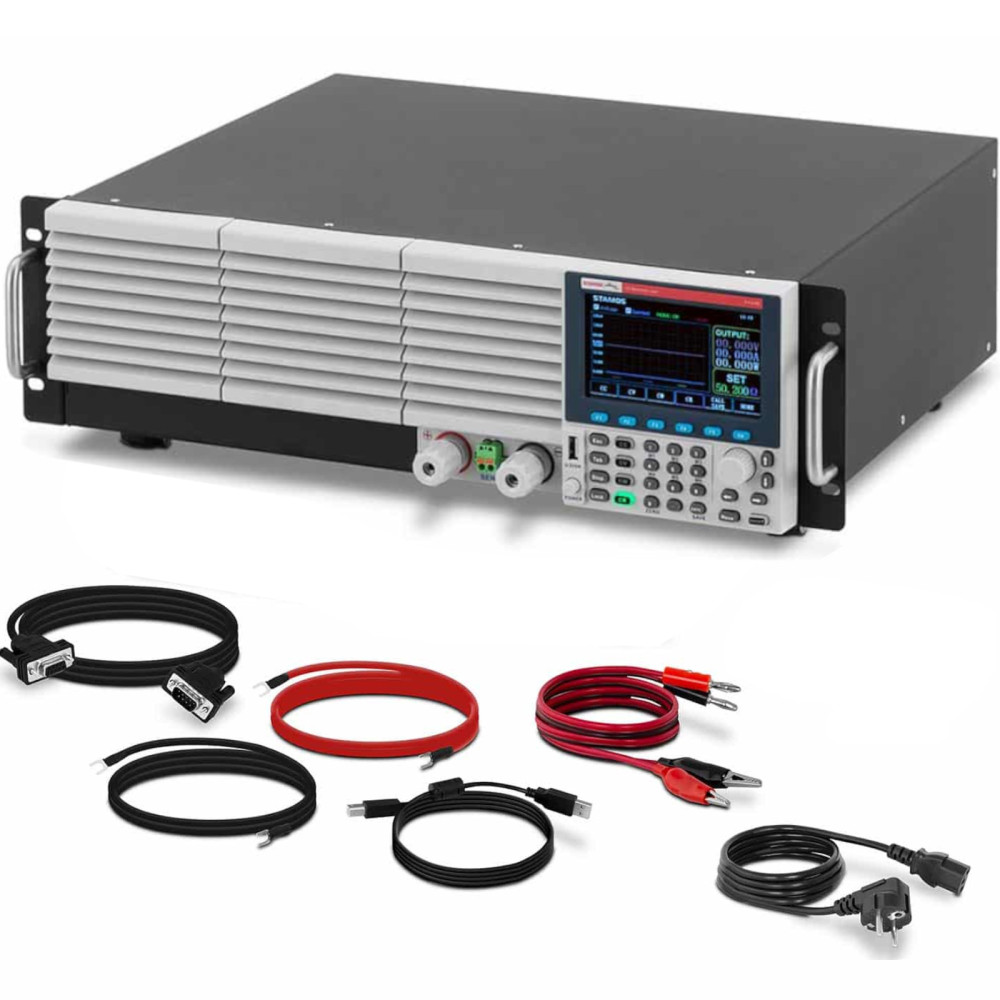

Included:
  • - S-LS-119 electronic load
  • - CD software
  • - USB cable
  • - RS232 cable
  • - Power cord
