Manufacturer's code:
10021071Laboratory power supply Stamos Soldering It will work in production, industrial, laboratories and research institutes as well as a telecommunications industry. Serve
Processing of the power supply in the electrical energy of the DC current with a certain voltage and delivery to electronic external devices. The equipment is equipped with one channel (plus, minus, grounding). Equipment precisely generates low rack current currents
≤1% RMS and small noise, which prevents damage to the circuit. It has a voltage from
0 to 60 V and electricity from
0 to 20 A. Display
Led Allows you to check the current and voltage values. Parameter adjustment takes place using knobs. The power supply works in two modes C.V. (fixed output voltage) and C.C. (Permanent load current). For safety, it has functions of protection against
przepięciem (OVP),
stabilizer overload (OCP),
overheating (OTP) and
overload of the entire power supply (OPP).
Fan Provides temperature control, switches over 40 ℃ and turns off below 35 ℃.

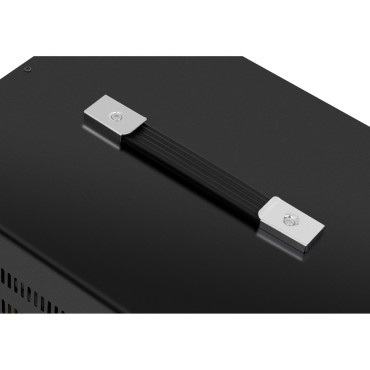

A small weight, a compact size and handle allow you to easily transport the equipment. Rubber legs prevent slipping and do not draw surfaces.
Product features: - - 1200 W power,
- - Max. Output voltage 60 V, Max output current 20 A,
- - adjustment using knobs,
- - LED display,
- - OVP protection, OCP, OTP, OPP.
Technical parameters: - - catalog number - 10021071
- - article - New
- - Model - SEC-ĺş-41
- - power - 1200 W
- - tension - 230 V / 50 Hz
- - rated current - 20 a
- - output voltage - 0-60 V
- - starting current - 0-20 a
- - Display - Led
- - type - Pulse
- - Working temperature - 0DEG C - 40DEG C
- - storage temperature - -10Deg C - 70DEG C
- - Working humidity - 80% RH
- - storage humidity - 70% RH
- - Power cord - 1.75 m
- - Regulation coefficient under load - ≤0.5% + 2D
- - Regulation factor - CV ≤0.2% + 2D / CC ≤0.5% + 2D
- - resolution - 100 mV / 10 mA
- - Rainting - ≤1% RMS full scale
- - Security - OVP, OCP, OTP, OPP
- - fuse - 20 a
- - Dimensions (DXSXW) - 38.00 x 26.00 x 16.50 cm
- - weight - 4.97 kg
- - Dimensions of shipment (DXSXW) - 41.50 x 33.00 x 22.00 cm
- - shipping weight - 5.89 kg
- - Dimensions (DXSXW) - 31.5 x 20 x 16 cm
- - weight - 3.2 kg
- - Dimensions of shipment (DXSXW) - 37.5 x 25.5 x 21 cm
- - shipping weight - 3.8 kg
Included: - - Laboratory power supply
- - plugs - 2 pcs.
- - Wiring connections - 2 x 30 A
- - Power cord
- - User manual
