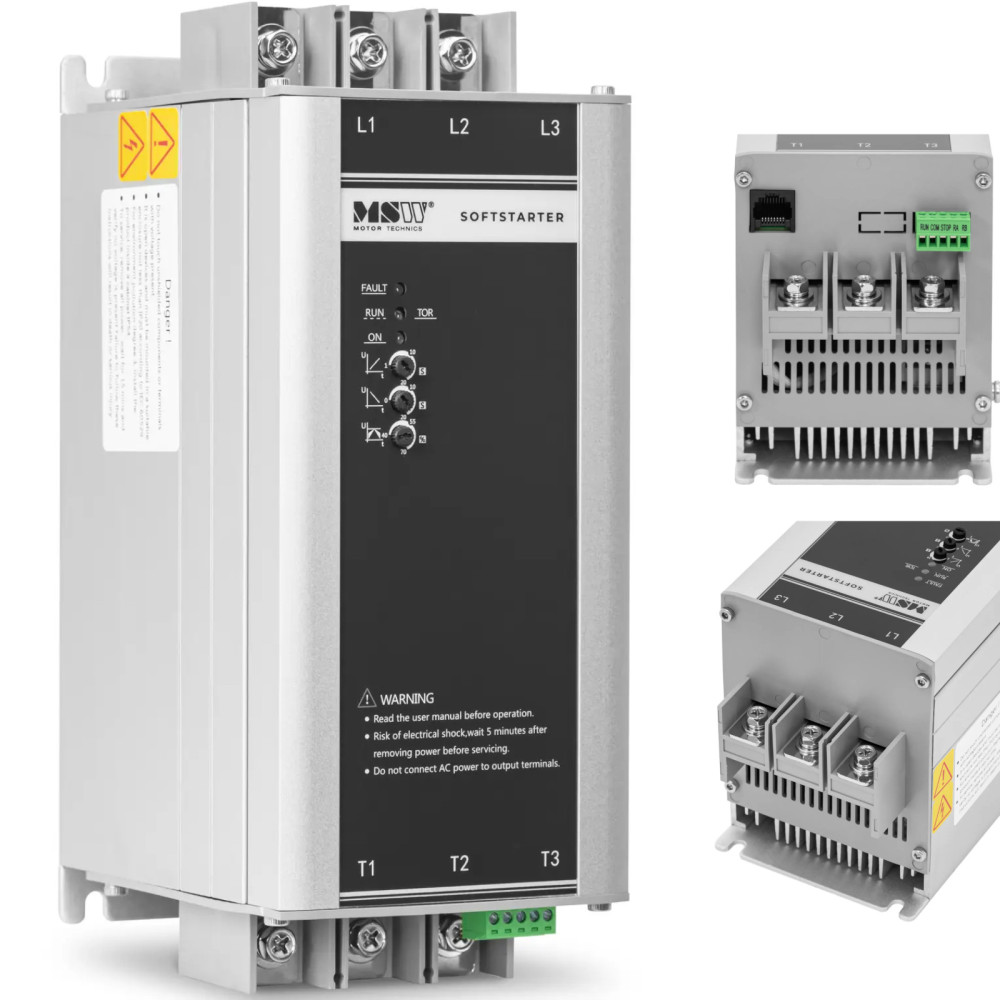

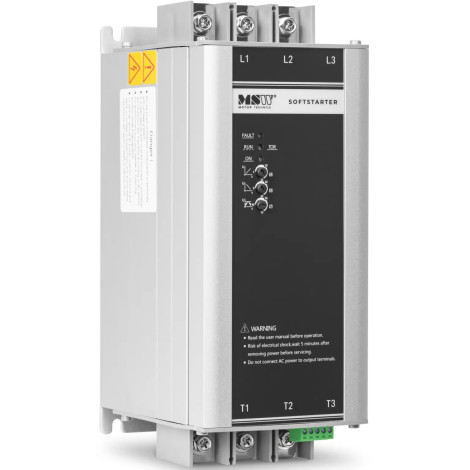

Soft Starter for mild starting engines 45 A 22 kW 400 V

Manufacturer's code: 10062930
Soft Starter Brand MSW It allows you to prolong the lifespan of the hardware and turn on pumps, compressors, HVAC systems or conveyors voltage 400 V. The drive will start when reduced voltage that will increase according to precisely set voltage to the working value. As a result, the engine will work smoothly and without hesitation. High quality Soft Start module is connected to devices with maximum power 22 kW. That is why it is ideal for commercial and industrial applications. In addition to high efficiency, the device will provide optimal energy efficiency. Integrated bypass will reduce the loss of power when only the engine reaches full power. In addition, the two-phase control allows you to reliably adjust the torque, which will result in a smooth start-up without jerk. Overload protection 10 class It takes care of a safe work, preventing the damage to the machine, and thus improving the engine resistance. Soft Start 400 V is easy to use and thanks to a compact design takes a few space.
Product features:

• - with a maximum voltage of 400 V and the capacity of 22 kW Soft Starter gently and securely launches even strong motors with reduced voltage,
• - integrated bypass in a mild start-up system effectively reduces the loss of power when the engine reaches full performance,
• - the growing voltage of the Soft Start module enables gentle and smooth engine starting,
• - thanks to the overload protection of 10 class Soft Starter will provide adequate engine protection,
• - Thanks to a small construction, it will fit almost everywhere.

Technical parameters:

• - catalog number - 10062930
• - article - New
• - Model - MSW Soft Starter NX22
• - Color - Silver
• - Maximum power - 22 kW
• - Material - Aluminum
• - Tension [V] - 400
• - IP protection degree - Ip20
• - storage temperature [deg C] - -25 - 60
• - Work temperature range [deg C] - -40 - 70
• - Rated entrance current [A] - 45
• - weight - 1.8 kg
• - shipping weight - 2 kg
• - Dimensions (DXSXW) - 11.8 x 8.8 x 22 cm
• - Dimensions of shipment (DXSXW) - 28 x 14 x 20 cm

Included:

• - Starter MSW
