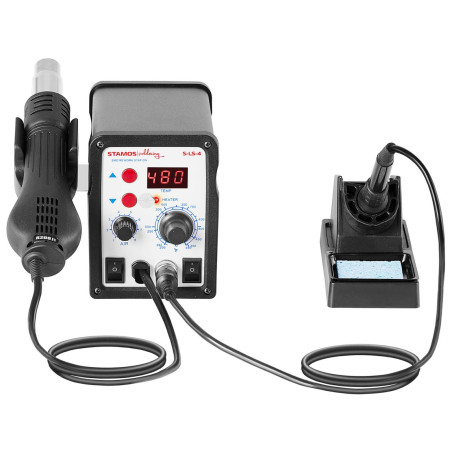

SEC-ĺş-4Universal Soldering Station of the German manufacturer Stamos Soldering made of high quality, original components.
The device combines several functions necessary when performing
Professional soldering works with electronic systems such as
SOIC, QFP, PLCC, BGA, SMD etc.
The controlled is fully digital and controlled by an advanced layout
PID Providing very precise temperature control.
The integrated soldering station includes devices:

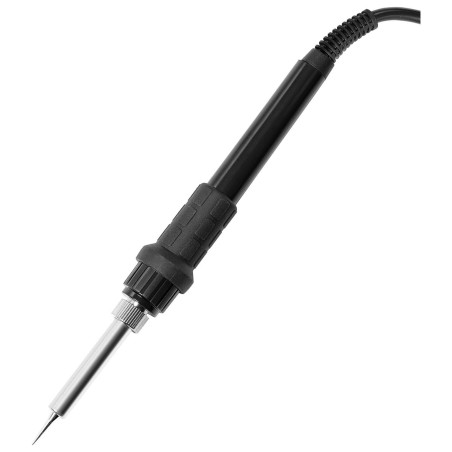

Soldering iron - grotto flask with power
60w with protection protecting electronic circuits
ESD SafeHot Air module with an efficient heater
650w and a fan that ensures air flow
120 l / min. The flask with a blowing hot air has many applications, among others:
-
Soldering and loosening Surface-mounted components (SMD)
- Heating and thawing
- shrinking of heat-shrinking shirts
- Dissolution of adhesives
- Farb tanning
-
Plastic welding- Many other applications where the temperature is required
100 to 450 DEG CTechnical parameters: - - Model - SEC-ĺş-4
- - catalog number - 6103
- - article - New
- - tension - 230 V / 50 Hz
- - power - 700 W
- - rated current - 6 a
- - Display - Led
Soldering flask - - output power - 60 W
- - temperature adjustment range - from 200 to 480DEG C
Hot air flask - - output power - 650 W
- - temperature adjustment range - from 100 to 450deg C
- - Air stream speed - 120 l / min

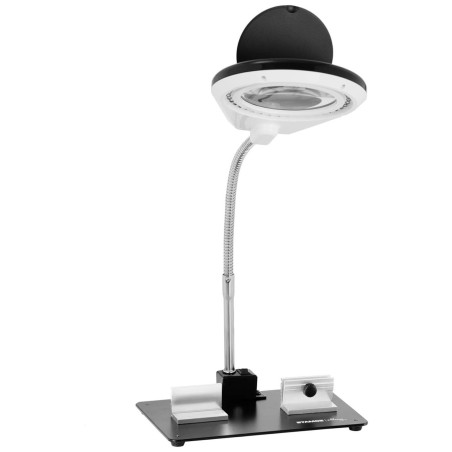

Lamp with a magnifying glass - - power - 3W
- - Type of light - Led
- - Number of diodes - 40 pcs
- - zoom - 5x / 10x (dioptrie)
- - light intensity - 8000 LX
- - Max. Lamp height - 300 mm
- - Basics dimensions - 200 x 125 x 3 mm
- - Dimensions (DXSXW) - 17.5 x 16 x 14 cm
- - weight - 1.95 kg
- - Dimensions of shipment (DXSXW) - 30.5 x 21 x 24 cm
- - shipping weight - 4.15 kg

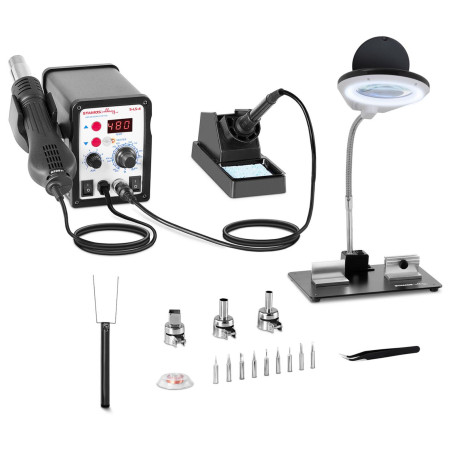

The set includes a rich set of accessories: - - 2in1 soldering station (control module, grotto soldering iron, Hot Air module)

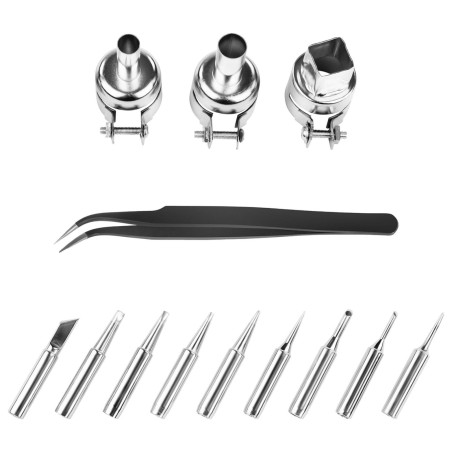

- - 9 soldering tips (except this in the soldering flask)
- - 3 nozzles on the hot air
- - Magnifying glass with integrated lamp
- - tweezers for gripping heated components

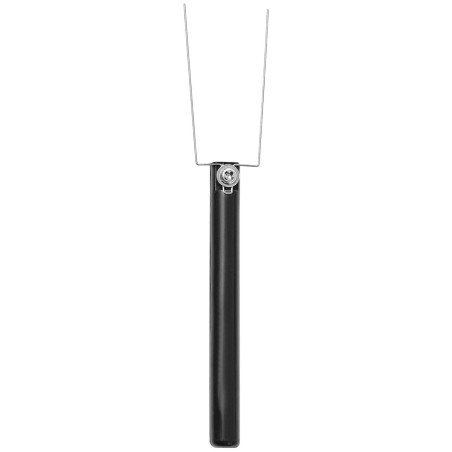

- - Component lifts (so-called IC Popper)
- - Split tape

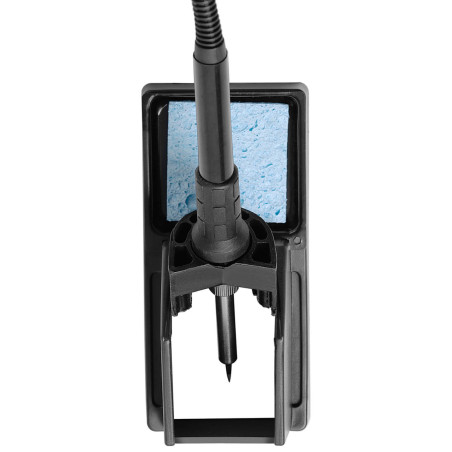

- - A stand with a sponge under the soldering flask
In the download tab there is an instruction manual in which all elements of the device are described in detail.
