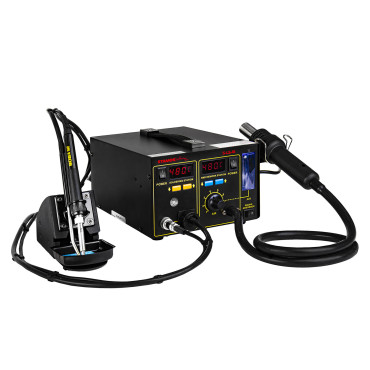

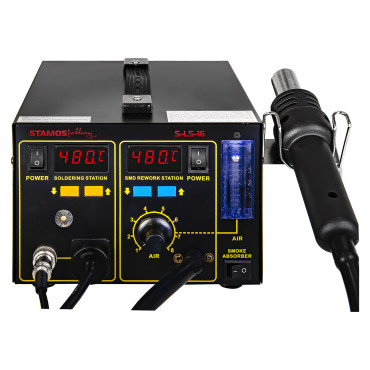

Soldering station Hot Air Stamos Soldering S-LS-16 BASIC

Manufacturer name: S-LS-16 BASIC
Professional solder station of the German manufacturer Stamos Soldering Made of high quality, original components.
The device combines several functions necessary when performing Professional soldering works with electronic systems such as SOIC, QFP, PLCC, BGA, SMD, chip etc. The controlled is fully digital and controlled by an advanced layout PID brand SAMSUNG Providing very precise temperature control.
A hot air flask (also used as plastic welder) Has the air blowing force and a ball indicator showing the current blowing speed. Hot Air flask module It cools automatically, Which allows to extend the viability of its construction parts. Individual stations Stamos Soldering They work independently of each other. Thanks to this, you can run work with all elements that are included simultaneously, as well as with each separately.
The integrated soldering station includes devices:

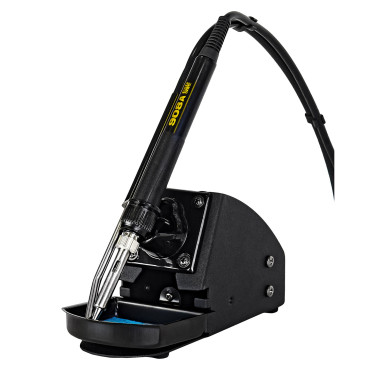

Soldering flask with the option of suction of soldering smoke:

• - Working voltage: AC 26 V
• - starting power: 75 W
• - Temperature range: from 200 to 480 DEG C
• - Temperature stability: + / - 1 DEG C
• - Display type: LED
• - Grot voltage: <2 M V
• - Grot resistance: <2 Ω
• - SHOES protected by high temperature resistant to high temperatures

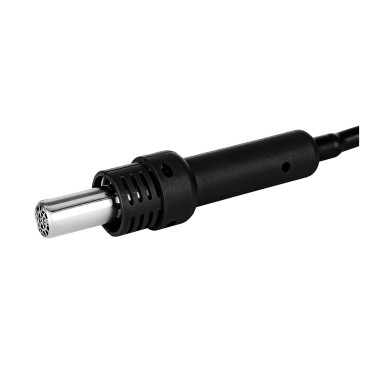

A hot air flask - a plastic welder:

• - Working voltage: 230 V / 50 Hz
• - Output power: 550 W
• - Airflow: max. 28 l / min
• - Temperature range: from 100 to 480 DEG C
• - Temperature stability: + / -1 DEG C
• - Display type: LED
• - Air blow source: Pump
• - SHOES protected by high temperature resistant to high temperatures

Technical parameters:

• - Model - S-LS-16 BASIC
• - catalog number - 6133
• - article - New
• - power supply - 230 V
• - power - 720 W
• - rated current - 6 a
• - Power of the soldering flask - 75 W
• - Temp. Solder flask - 200-480deg C
• - power of hot air flask - 550 W
• - Range of the hot air flask - 100 to 480DEG C
• - DC power supply - Not
• - Digital Soldering Station - Not
• - Soldering station with heating plate - Not
• - Smoke suction - So
• - Memory buttons - Not
• - Display - Led
• - Vacuum gripper - Not
• - air flow - 28 l / min
• - length of the power cord - 1.5 m
• - Dimensions (DXSXW) - 29.5 x 25 x 15 cm
• - weight - 3.95 kg
• - Dimensions of shipment (DXSXW) - 34 x 28 x 21 cm
• - shipping weight - 5 kg

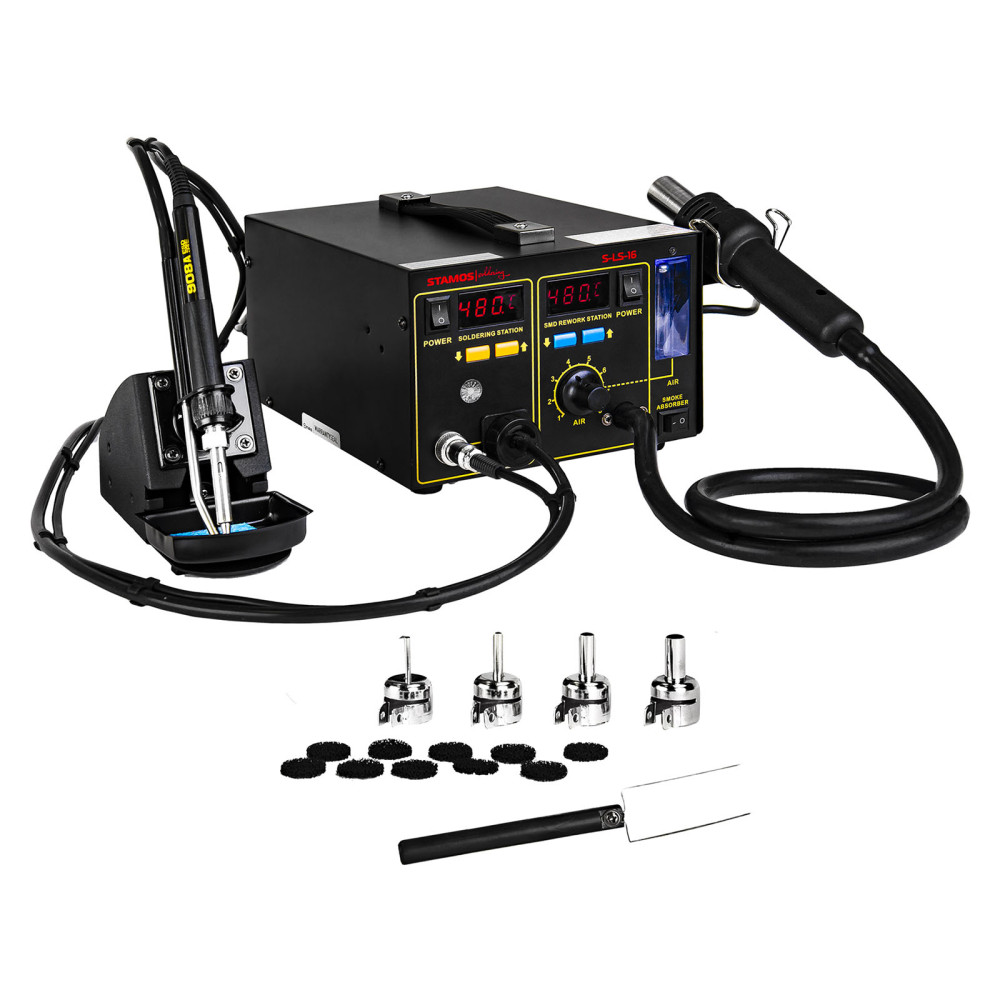

The set includes a rich set of accessories:
- an integrated 3in1 soldering station (control module, grotto soldering iron, HOT AIR module)
- Hot Air flask holder
- Set of 4 Hot Air nozzles
- Soldering flask with a tip and tip for suction of soldering smoke
- Soldering flask with cleaning sponge and with a handle on Feb
- Spare Solderness Filter Filter
- Component lifts (so-called IC Popper)
- EN statement
