Professional Soldering Soldering Station Hot Air Lab A Power Supply S-LS-1

Manufacturer name: SEC-ĺş-1
Professional soldering station German producer Stamos Soldering Made of high quality, original components.
The device combines three equipment: Soldering station, hot air flask and DC power supply. It will work both on soldering, electronics repair, when welding plastic, drying paint or foil shrinking. Perfect station in a computer, telecommunications industry or in a home workshop.
The device has power 1000 W. The temperature is adjustable in the range 200 - 480DEG C. Hot air flask with power 650 W Thanks to the brushless fan, it ensures air flow with yield to 120l / min with the possibility of changing temperature in the field 100-480deg C. This is an excellent soldering and highlighting surface (SMD). The integrated heating element guarantees a trouble-free heat flow. The flask can also be placed in a special grip Mounted on the side of the station. Excellent visibility Provides attached magnifying lamp. The emitted light allows you to see a larger number of details. Control panel It has steel buttons that are used to set the soldering temperature, air flow volume (8 levels) and also to the voltage and output current. 4 readable LED displays are used to control parameters. Small dimensions and handle provide mobility of the device and the rubber feet stability.
Product features:

• - Versatility - combination of soldering station capabilities, hot air flask and power supply in one device
• - Multi - for soldering, tinting, shrinking, drying paint, removing glue, plastic welding,
• - Performance - 1000 W S-Soldering Station and Temperature Regulation in the range 200 - 480DEG C
• - Practicality - soldering flask - power 75 w, hot air gun - 650 W power,
• - Readability - Four LED displays

Technical parameters:

• - Model - SEC-ĺş-1
• - catalog number - 6100
• - article - New
• - tension - 230 V / 50 Hz
• - power - 1000 W
• - rated current - 6 a
• - Display - 4 x LED

Soldering flask

• - output power - 75 W
• - temperature adjustment range - from 200 to 480DEG C
• - Grotto resistance - <2 Ω
• - Grot's voltage - <2 M V

Hot air flask

• - power - 650 W
• - temperature adjustment range - from 100 to 480DEG C
• - Air stream speed - 120 l / min

DC power supply

• - Max. Tension - 30 V
• - starting current - from 0 to 5 a

General dimensions

• - Dimensions (DXSXW) - 33.5 x 27 x 20 cm
• - weight - 7.3 kg
• - Dimensions of shipment (DXSXW) - 41 x 30 x 24 cm
• - shipping weight - 9.1 kg

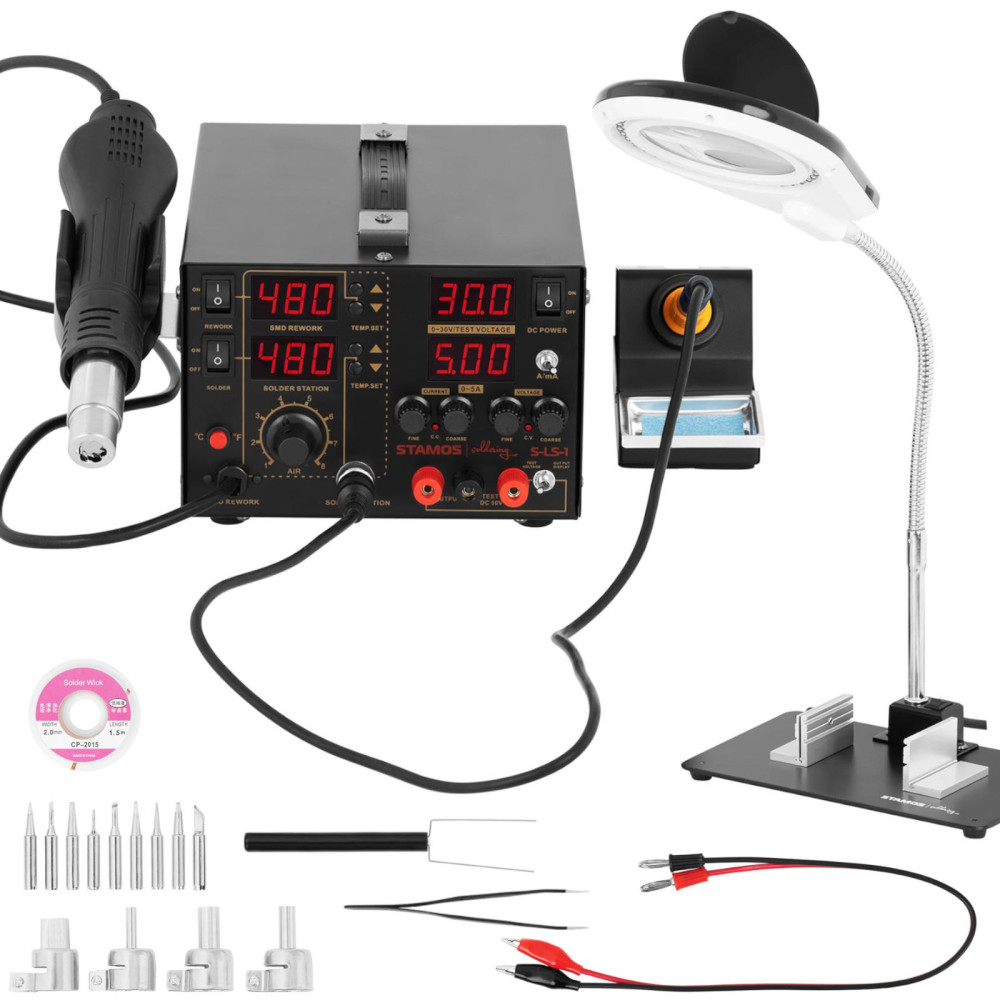

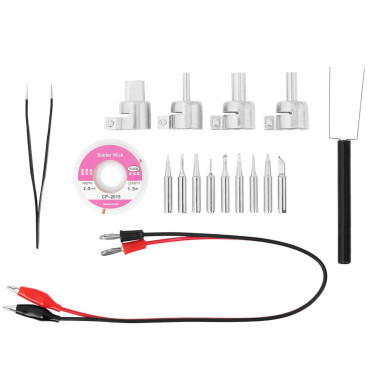

The set includes a rich set of accessories:

• - 4 x hot air nozzles
• - 9 x soldering tips (except this in the soldering flask)
• - Plap with a sponge to the soldering flask
• - Tweezers for gripping heated elements
• - Measuring cable for testing

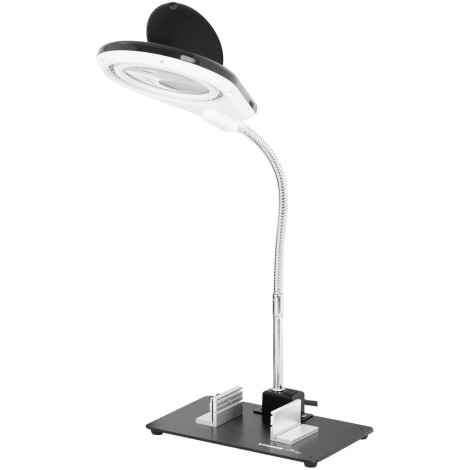

• - Magnifying glass with integrated lamp
• - Component lifts (so-called IC Popper)
• - Split tape

In the download tab there is an instruction manual in which all elements of the device are described in detail.
