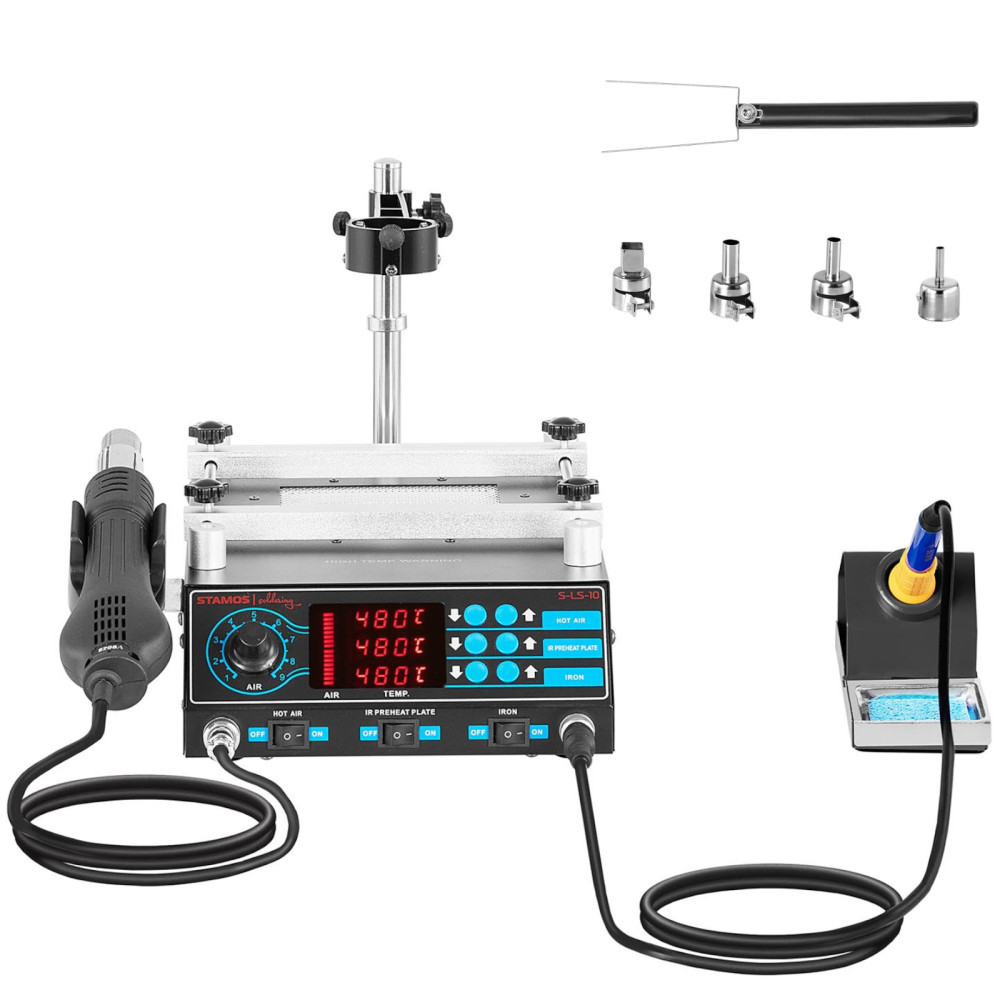

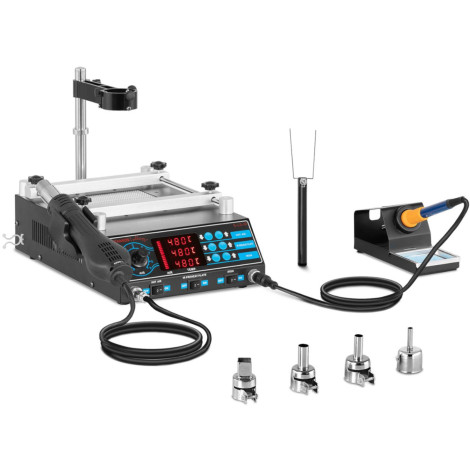

Soldering station Hot Air Preheater Stamos Soldering S-LS-10 BASIC

Manufacturer name: S-LS-10 BASIC
Professional solder station of the German manufacturer Stamos Soldering Made of high quality, original components.
The device combines several functions necessary when performing Professional soldering works with electronic systems such as SOIC, QFP, PLCC, BGA, SMD etc. The controlled is fully digital and controlled by an advanced layout PID Providing very precise temperature control.
The integrated soldering station includes devices:

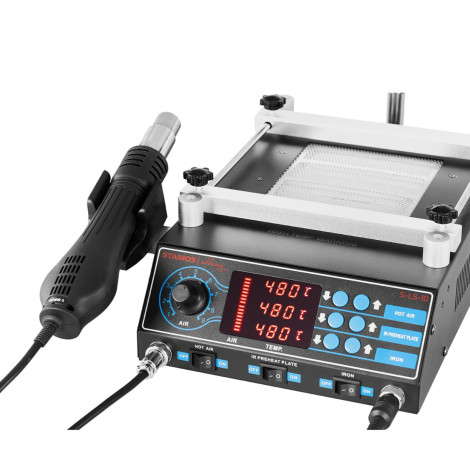

• Advanced control unit It enables precise determination of all parameters of the patch flask and hot air flask. It has a large LED Display Defining the temperature of two spray: soldering and hot air. The buttons on the control panel allow you to control:

1. - Temperature of the soldering flask
2. - Hot Air flask temperature
3. - Disc temperature Preheater

• Soldering station has Comfortable gripper on the hot air flask increasing the comfort and efficacy of soldering work and a heating plate for pre-heating the integrated circuits of the so-called Preheater.

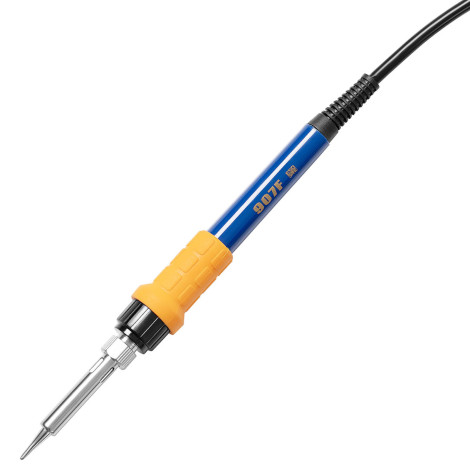

• Soldering iron - grotto flask with power 75w with protection protecting electronic circuits ESD Safe.
• Hot Air module with an efficient heater 650w and a fan that ensures air flow 130 l / min. The flask with a blowing hot air has many applications, among others:

1. - Soldering and loosening Surface-mounted components (SMD)
2. - Heating and thawing
3. - shrinking of heat-shrinking shirts
4. - Dissolution of adhesives
5. - Farb tanning
6. - Plastic welding
7. - Many other applications where the temperature is required 100 to 480 DEG C

Technical parameters:

• - Model - S-LS-10 BASIC
• - catalog number - 6125
• - article - New
• - tension - 230 V / 50 Hz
• - power - 1270 W
• - rated current - 15 a
• - Display - Led

Soldering flask

• - power - 75 W
• - temperature adjustment range - from 200 to 480DEG C
• - Grotto resistance - <2 Ω
• - Grot's voltage - <2 M V

Hot air flask

• - power - 650 W
• - temperature adjustment range - from 100 to 480DEG C
• - Air stream speed - 130 l / min

Heater

• - temperature adjustment range - from 50 to 400DEG C
• - plate surface (DXS) - 120 x 120 mm

General dimensions

• - Dimensions (DXSXW) - 32.5 x 27.5 x 11 cm
• - weight - 4.15 kg
• - Dimensions of shipment (DXSXW) - 38 x 37 x 19 cm
• - shipping weight - 5.2 kg

The set includes a rich set of accessories:

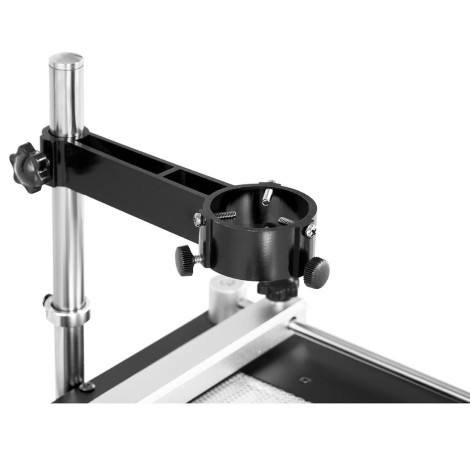

• - Hot AIR flask holder

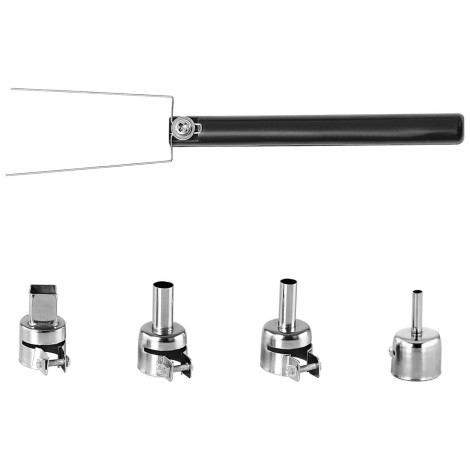

• - 4x hot air nozzles for different size and shape

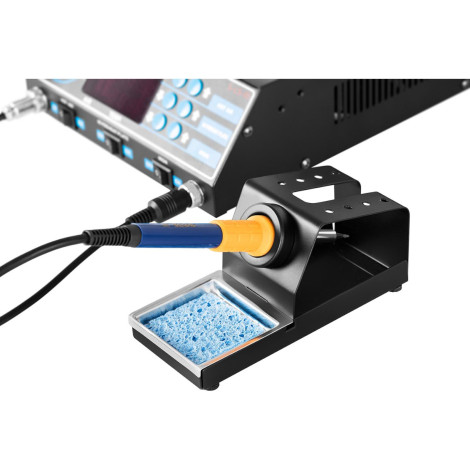

• - A stand with a sponge to a soldering flask
• - Component lifts (so-called IC Popper)
• - EN statement

In the download tab there is an instruction manual in which all elements of the device are described in detail.
