Soldering station Hot Air Stamos Soldering SEC-ĺş-17

€161.03
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer name: SEC-ĺş-17

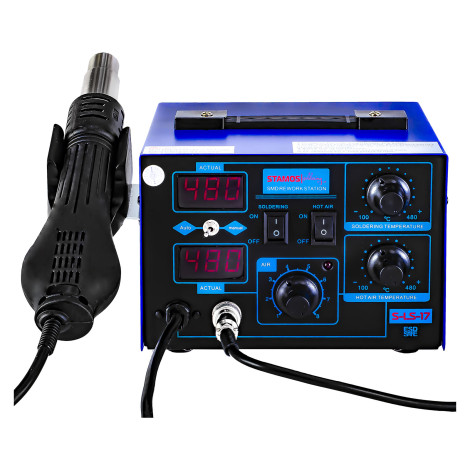

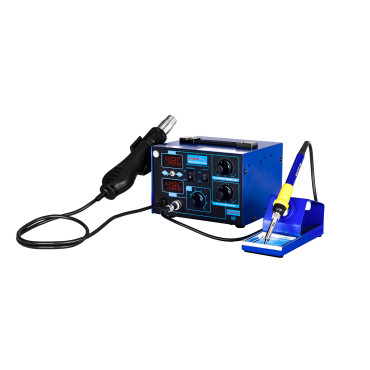

Professional solder station of the German manufacturer Stamos Soldering Made of high quality, original components.
The device combines several functions necessary when performing Professional soldering works with electronic systems such as SOIC, QFP, PLCC, BGA, SMD, chip etc. The controlled is fully digital and controlled by an advanced layout PID Providing very precise temperature control.
The Hot Air flask module is equipped with mode automatic cooling. After inserting the flask into the tool holder reduces its temperature. This extends the life of the design elements itself. An additional advantage of the offered model is the possibility to use it for work related to Welding of plastic.
The integrated soldering station includes devices:

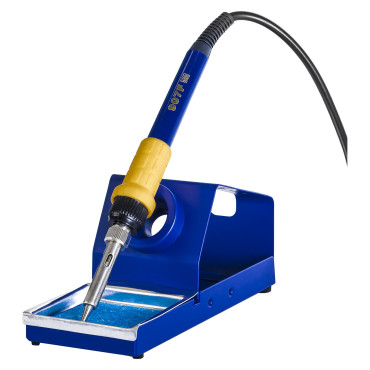

Solder flask:
  • - Working voltage: AC 26 V
  • - starting power: 75 W
  • - Temperature range: from 100 to 480 DEG C
  • - Temperature stability: + / - 2 DEG C
  • - Display type: LED
  • - Grot voltage: <2 MV
  • - Grot resistance: <2 Ω
  • - SHOES protected by high temperature resistant to high temperatures

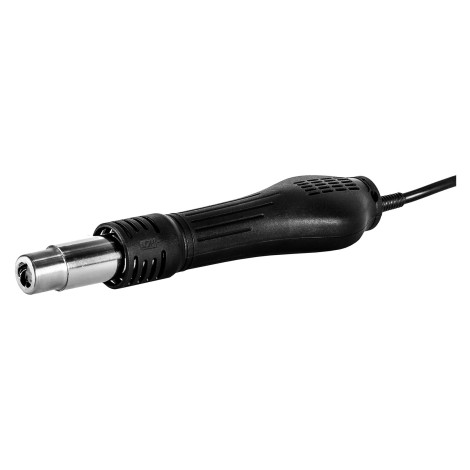

A hot air flask - a plastic welder:
  • - Working voltage: 230 V / 50 Hz
  • - starting power: 650 W
  • - Airflow: 120 l / min
  • - Temperature range: from 100 to 480 DEG C
  • - Temperature stability: + / - 2 DEG C
  • - Display type: LED
  • - Air blow source: Fan with brushless motor
  • - SHOES protected by high temperature resistant to high temperatures

Technical parameters:
  • - Model - SEC-ĺş-17
  • - catalog number - 6134
  • - tension - 230 V
  • - power - 700 W
  • - rated current - 6 a
  • - Power of the soldering flask - 75 W
  • - Temperature range of the soldering flask - 100 - 480DEG C
  • - power of hot air flask - 650 W
  • - Temperature range of hot air flask - 100 - 480DEG C
  • - Power supply - Not
  • - Digital Soldering Station - Not
  • - hot air flask - So
  • - Soldering station with a pre-heating plate - Not
  • - smoke extractor - Not
  • - Memory buttons - Not
  • - Display - Led
  • - Vacuum gripper - Not
  • - air flow - 120 l / min
  • - Smoke filter - Not
  • - Power cord - 1.35 m
  • - User manual - So
  • - Dimensions (DXSXW) - 18 x 18.5 x 14.5 cm
  • - weight - 2.9 kg
  • - Dimensions of shipment (DXSXW) - 41 x 29 x 24 cm
  • - shipping weight - 5.1 kg

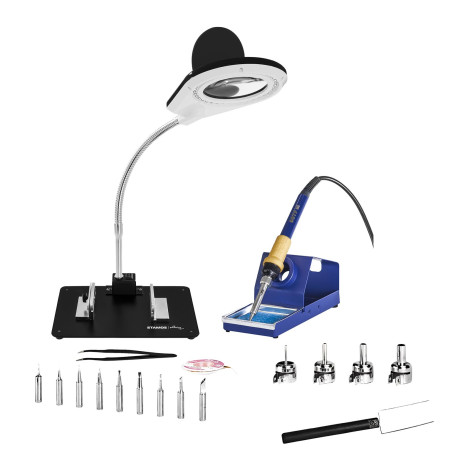

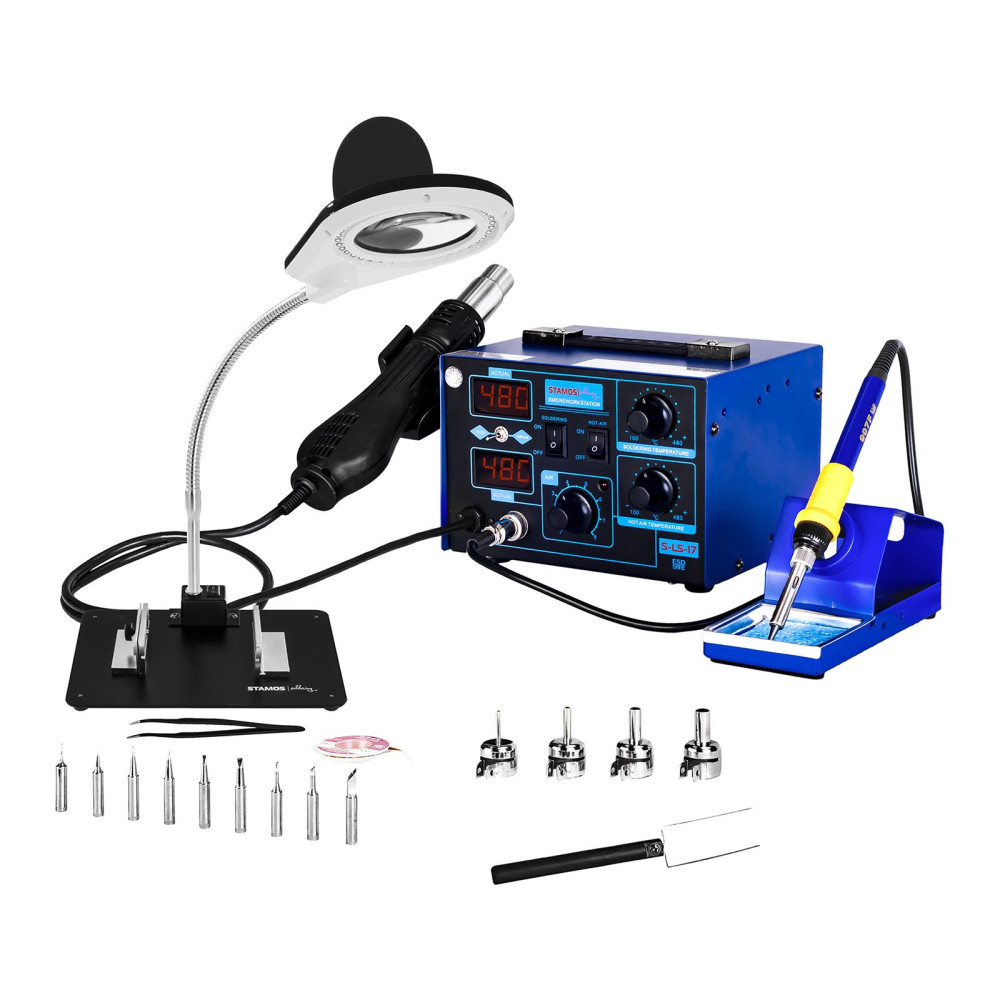

The set includes a rich set of accessories:
  • - an integrated 3in1 soldering station (control module, grotto soldering iron, HOT AIR module)
  • - hot air flask
  • - Hot Air flask holder
  • - Set of 4 Hot Air nozzles
  • - Soldering flask with a grot
  • - Solder flask handle with cleaning sponge
  • - A set of 9 pieces of the tip of the soldering flask
  • - Component lifts (so-called IC Popper)
  • - Suction tape for loosening
  • - Desktop lamp with a magnifying glass
  • - Antilleectrostatic tweezer
  • - EN statement
