Professional solder station with 3in1 USB magnifying lamp Stamos Soldering SEC-ĺş-22

€205.78
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer name: SEC-ĺş-22

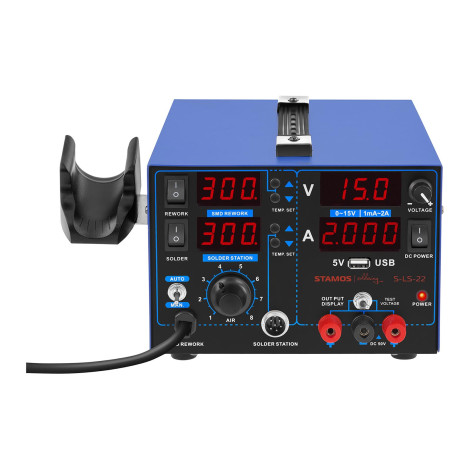

Soldering station brand Stamos Soldering This device 3 in 1, which additionally combines the features of a hot air gun and a laboratory power supply. Using this equipment, you can, for example, soldering (SOIC, chip, QFP, PLCC, BGA, SMD, etc.), sealing of plastics, drying of paint, adhesive removal, repair of electronic equipment, galvanizing, power supply Laboratory tests. The power tool will be useful in electronic workshops, automotive workshops, services, pharmacies, private use, etc. The presented equipment has four LED displays on which the temperature of the hot air flask, the temperature of the soldering station, Voltage and output current. The S-LS-22 model has a voltage station with a voluminel station ≤ 800 W and a temperature range of 200 - 500Deg C. Kolb Hot Air offers a flow of hot air at a speed of up to 120 l / min and adjusting its temperature from 100 to 480DEG C. It also allows you to work in manual or automatic mode. The USB port allows you to connect compatible devices for example to charge them. Made of steel switches are permanent, readable and easy to use.
Features and functions:
- Soldering station
- hot air flask
- Laboratory power supply
- magnifying lamp
- USB port
Technical parameters:
  • - Model - SEC-ĺş-22
  • - catalog number - 10021007
  • - article - New
  • - voltage / frequency - 230 V / 50 Hz
  • - power - ≤ 800 W
  • - USB - 5 VDC / 2 A
  • - rated current - 6 a
  • - Output current range - 0 - 2a
  • - Displays - Led

Soldering flask
  • - Temperature range - 200 - 500DEG C
  • - temperature stability - ± 2Deg C
  • - Grotto resistance - <2 Ω
  • - Grot's voltage - <2 MV

Hot air flask
  • - Temperature range - 100 - 480DEG C
  • - temperature stability - ± 1Deg C
  • - air flow - 4.7 m / s ≤ 120 l / min

DC power supply
  • - DC output voltage - 0-15 V ± 10%
  • - starting current - 1/2/3 A
  • - Voltage stability with load - <0.01 ± 2 MV
  • - Temperature coefficient - <300 ppm / ⁰c
  • - Rainting - <1MV RMS
  • - Dimensions (DXSXW) - 27.5 x 18.5 x 14 cm
  • - weight - 3.5 kg
  • - Dimensions of shipment (DXSXW) - 41 x 29.5 x 24 cm
  • - shipping weight - 6.6 kg

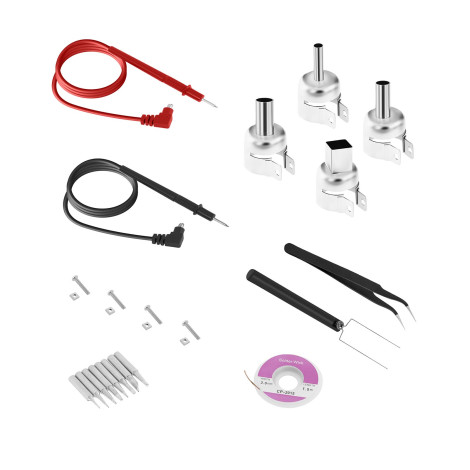

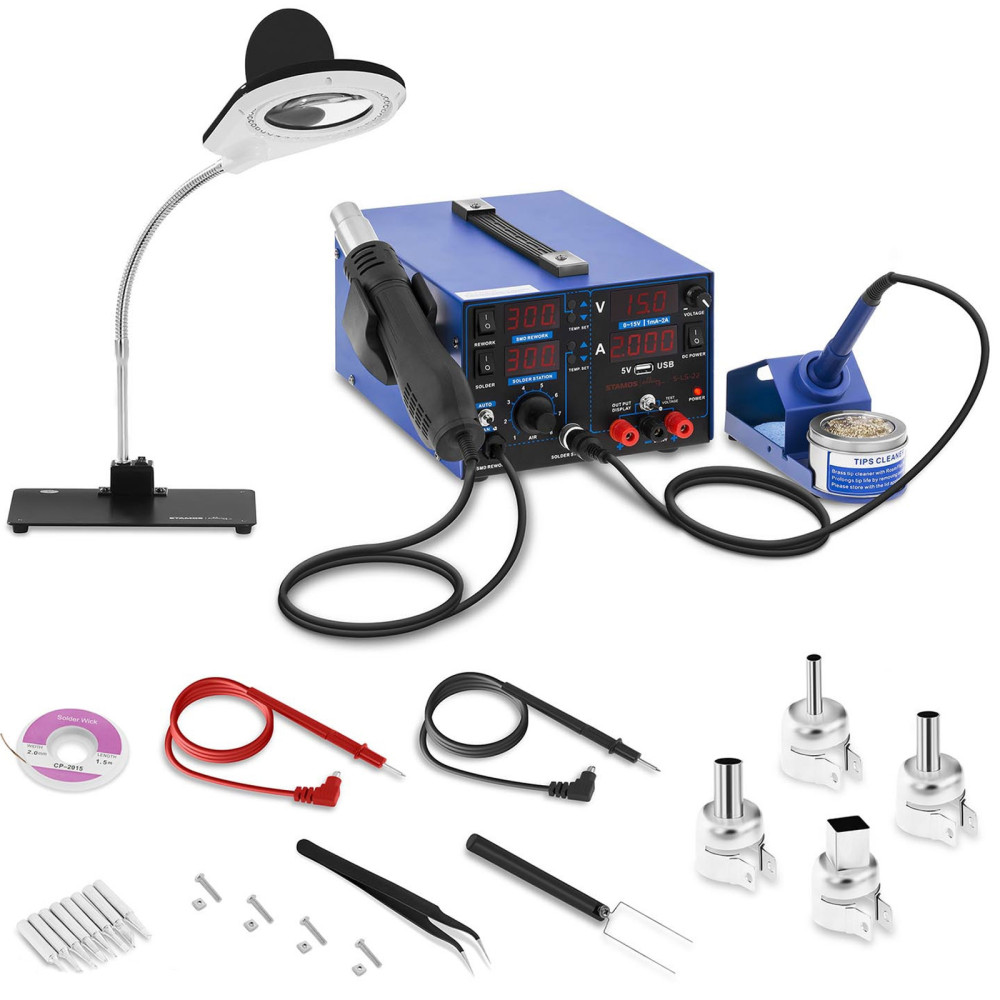

Included:
- S-LS-22 Solder Station
- Measurement wires

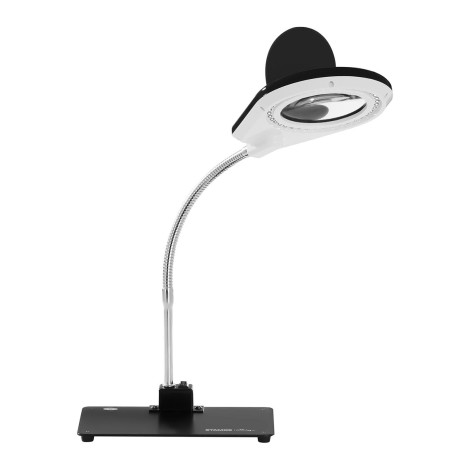

- magnifying lamp

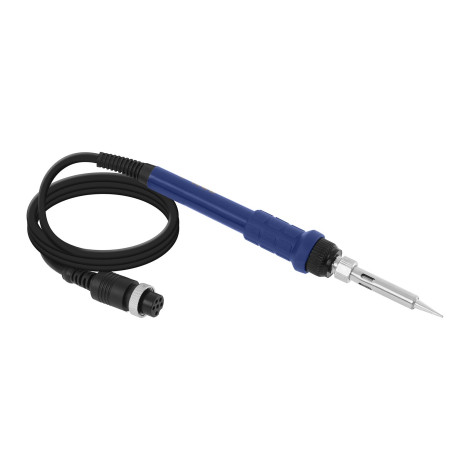

- soldering wheel with a tip

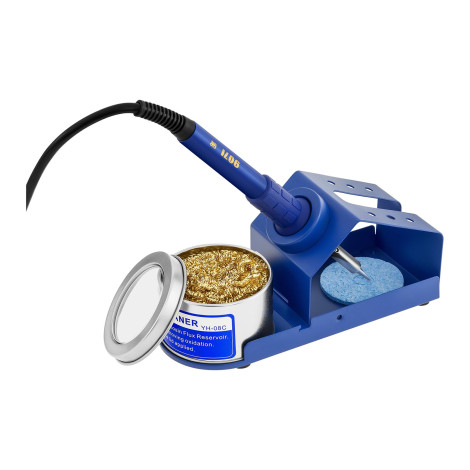

- Bottle for the soldering flask
- Power cord
- hot air flask
- Four tips Hot Air
- Component lifts (so-called IC Popper)
- User manual
