Manufacturer name:
SEC-ĺş-12Professional soldering station German producer
Stamos Soldering Made of high quality, original components.
The device combines several functions necessary when performing
Professional soldering works. The equipment has been equipped with a set of accessories, increasing the convenience of use and also lowering the cost of operating:
Magnifying glass integrated with a lamp, tweezers for heated components, soldering tips and a base for a flask. Soldering flask with power
60 W Allows you to create durable connections in a short time, the components are heated and connected by tin. The heat transfer provides an integrated heating element. The air to the grotto reaches directly and without loss. Small dimensions of the station allow you to save a place while storing. The device has a clear
LED display, showing the temperature of the soldering flask in
DEG C or DEG F. It is set using a knob. Lamp equipped with
40 LEDs Provides excellent visibility, it gets a little energy (3 W) and has a man-friendly color light. Thanks to the double larger lens
5x / 10x Machining even small elements. Precognizance very comfortable. The lamp height can be adjusted to max. 30 cm.
Product features: - - Hot air connection - hot air flask is connected to a soldering station with a flexible conduit, increasing work comfort,
- - ESD Safe - the machine is protected against electrical discharges, thanks to which the risk of voltage jumps is minimized,
- - DEG C or DEG F switch - change of temperature units,
- - Auto Manual - Pointer type of hot air flask.
Technical parameters: - - Model - SEC-ĺş-12
- - catalog number - 6111
- - article - New
- - tension - 230 V / 50 Hz
- - power - 65 W
- - rated current - 1 a
- - Display - Led
Soldering flask - - output power - 60 W
- - temperature adjustment range - from 200 to 480DEG C
- - Grotto resistance Solder flask - <2 Ω
- - tension of the grotto soldering flask - <2 M V
Lamp with a magnifying glass - - power - 3W
- - Type of light - Led
- - Number of diodes - 40 pcs
- - zoom - 5x / 10x (dioptrie)
- - light intensity - 8000 LX
- - Max. Lamp height - 300 mm
- - Basics dimensions - 200 x 125 x 3 mm
- - Dimensions (DXSXW) - 16 x 12 x 9 cm
- - weight - 1.1 kg
- - Dimensions of shipment (DXSXW) - 26 x 21.5 x 18 cm
- - shipping weight - 3 kg
The set includes a rich set of accessories: - - Soldering station - Draw soldier

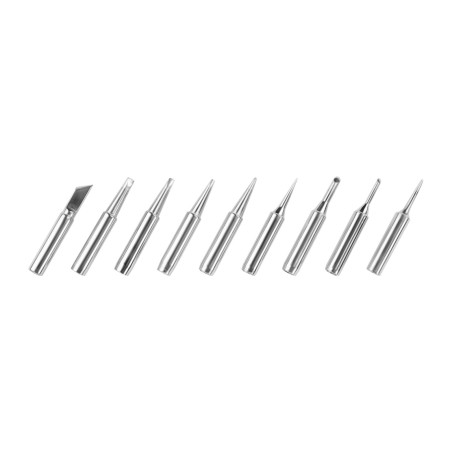

- - soldering tips - 9 pcs.
- - A stand with a sponge to a soldering flask
- - Magnifying glass lamp
- - Tweezers for heated components
In the download tab there is an instruction manual in which all elements of the device are described in detail.
