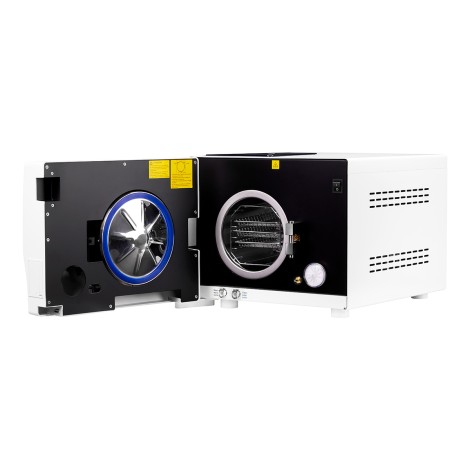

Lafomed autoclave premium line lfss12aa lcd with 12l class b medical printer

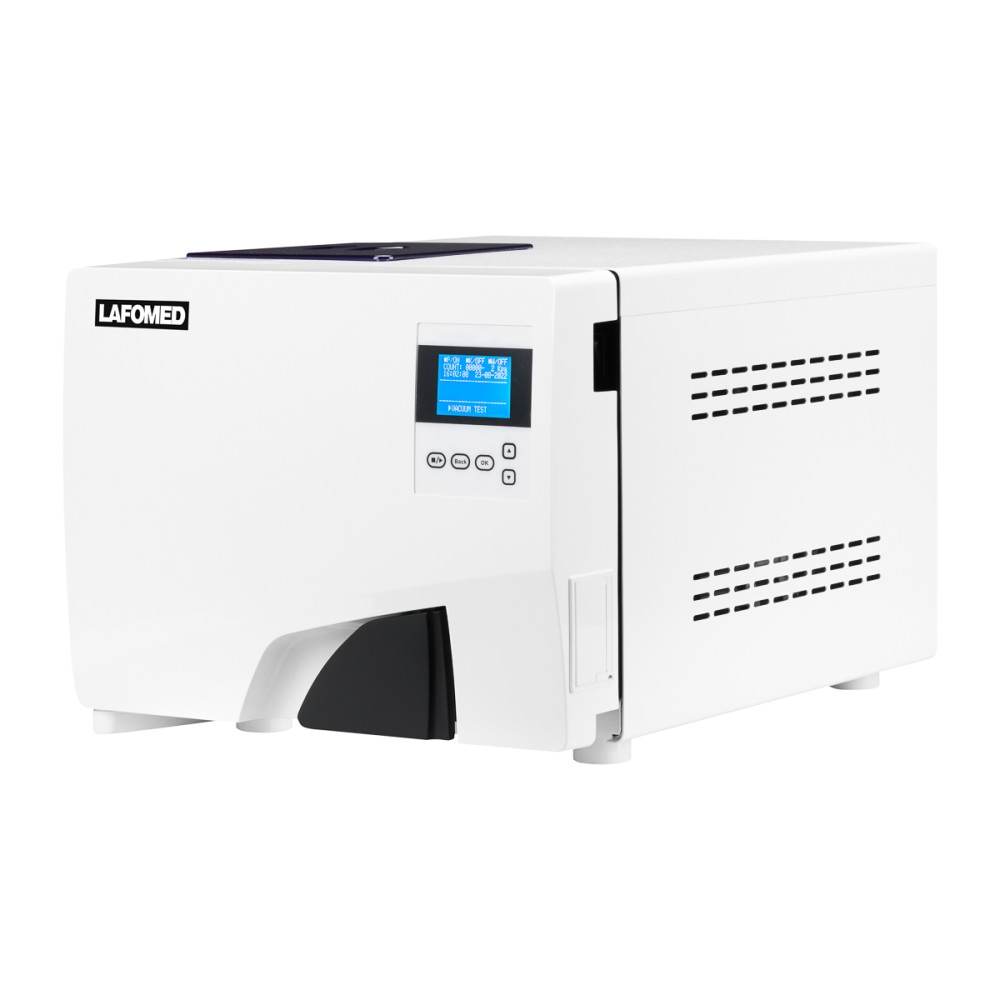

The Lafomed Premium Line LFSS12AA LCD is a Class B autoclave with a 12-litre capacity designed for sterilising invasive medical instruments in hospitals, dental and ophthalmic practices, and biological research facilities.

Intended Use and Application

This autoclave is designed to sterilise wrapped (single- and multi-layer) and unwrapped solid, porous, and hollow items such as surgical instruments, dental tools, and syringes according to EN 13060:2004+A2:2010 standards.

It is suitable for medical, veterinary, and non-medical instrument sterilisation but not for liquids.

• Complies with EN 13060:2004+A2:2010
• Sterilises solid, porous, hollow, wrapped and unwrapped items
• Intended for medical, veterinary, and non-medical use
• Not for sterilising liquids

Key Features and Functionality

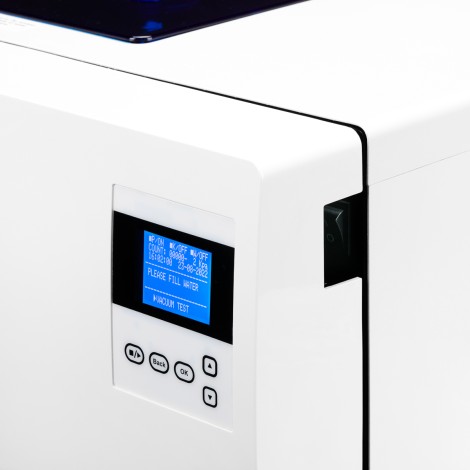

The compact unit integrates an LCD display, USB port for data output, and built-in thermal printer for documentation.

It offers 10 automatic programs (7 sterilisation, 2 test, 1 cleaning) plus a custom user program.

Additional functions include preheating, heat maintenance, adjustable drying times, self-diagnosis, and a double door locking system for safety.

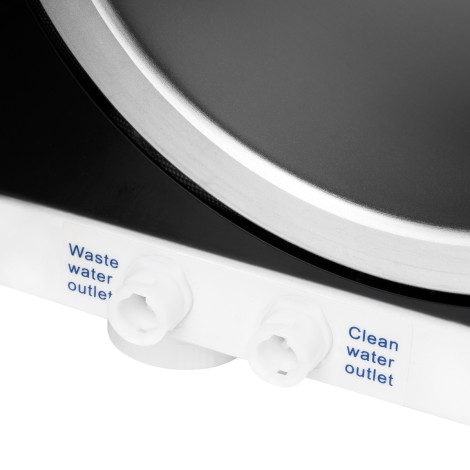

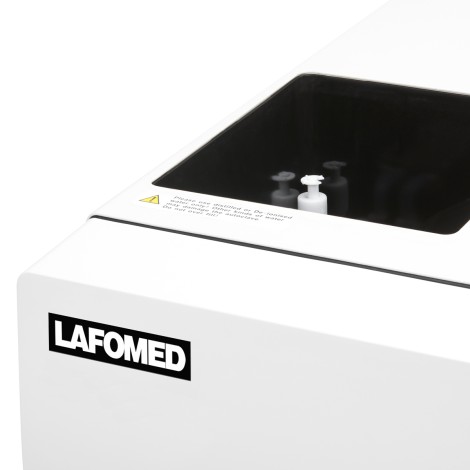

The unit has built-in distilled water and waste water tanks with front or rear drainage.

• LCD display and USB data output

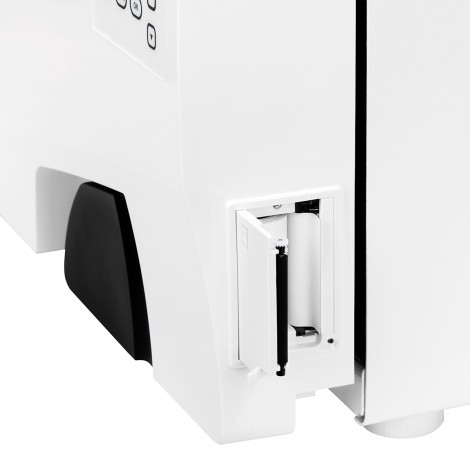

• Built-in thermal printer
• 10 automatic programs plus user program
• Preheating and heat maintenance
• Adjustable drying time; shortest cycle 7 minutes
• Self-diagnosis system for protection
• Double door locking mechanism
• Built-in distilled water and waste water tanks

Automatic Sterilisation Programs

The autoclave offers sterilisation cycles at various temperatures and pressures to suit different item types, with times measured after preheating.

• 121°C Solid at 110 kPa – 23 minutes
• 121°C Porous at 110 kPa – 27 minutes
• 121°C Hollow at 110 kPa – 30 minutes
• 134°C Solid at 210 kPa – 7 minutes
• 134°C Porous at 210 kPa – 11 minutes
• 134°C Hollow at 210 kPa – 14 minutes
• 135°C Prions at 210 kPa – 29 minutes

Warranty and Service Support

The autoclave includes a 24-month warranty not limited by cycle count, extendable by 12 months after a paid technical inspection from an authorised centre.

A technical passport is included free of charge.

From September 2024, a nationwide network of authorised Lafomed service centres offers inspections, repairs, on-site visits in selected locations, and loan devices during repair.

• 24-month warranty with 12-month extension option
• Technical passport included
• Nationwide authorised service centres
• Services include inspections, repairs, on-site visits*, and replacement devices*
• *Services available at selected locations

Technical specifications

• Model: LFSS12AA LCD
• Brand: LAFOMED
• Autoclave Class: Class B Medical
• Capacity: 12 litres
• Display: LCD
• Built-in Printer: Thermal printer
• Programs: 10 automatic (7 sterilisation, 2 test, 1 cleaning) plus user-defined program
• Sterilisation Standards: EN 13060:2004+A2:2010
• Sterilisation Temperatures: 121°C, 134°C, 135°C
• Pressure Settings: 110 kPa, 210 kPa
• Shortest Sterilisation Cycle with Drying: 7 minutes at 134°C solid
• Water Tanks: Built-in distilled water tank and waste water tank with front/rear drainage
• Safety Features: Double door locking, self-diagnosis system

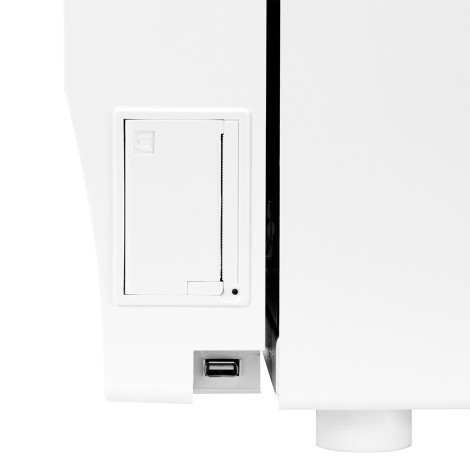

• Data Output: USB port for saving cycle results
• User Interface Language: Polish
• Warranty: 24 months with optional 12-month extension after inspection
• Intended Use: Sterilisation of invasive medical devices including surgical and dental instruments and syringes; not for liquids; suitable for medical, veterinary, and non-medical instruments
