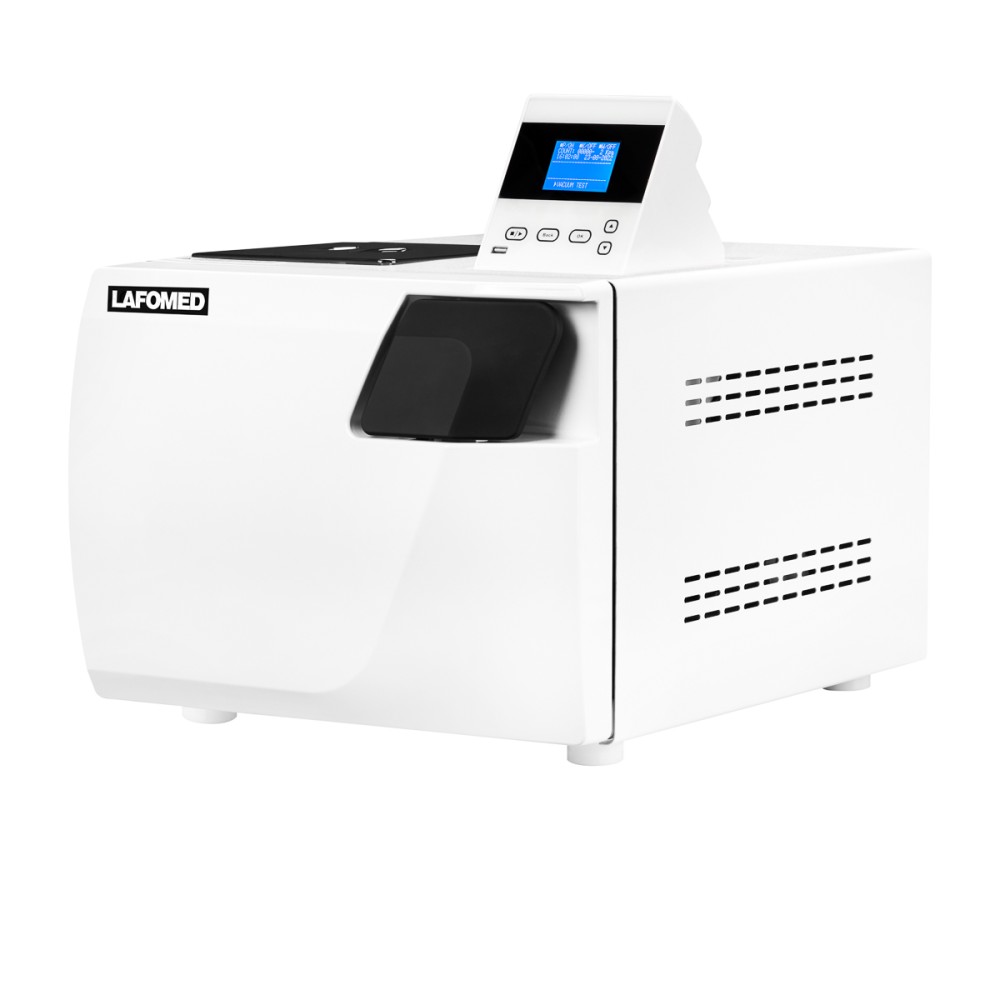

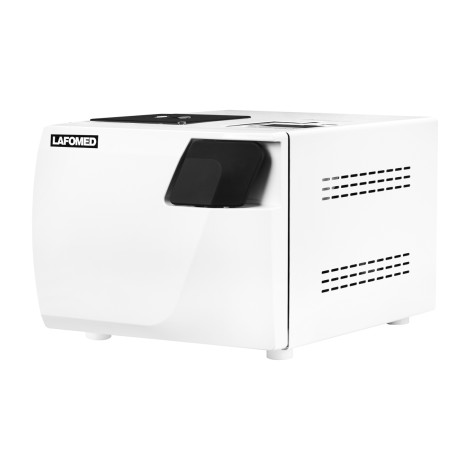

The Lafomed Medical Autoclave Compact Line LFSS12AC is a Class B autoclave intended for sterilizing both medical and non-medical instruments. It features a 12-litre chamber with a built-in thermal printer, suitable for hospital departments, dental and ophthalmology clinics, biology institutes, as well as beauty and tattoo salons.
Reliable and Certified Performance

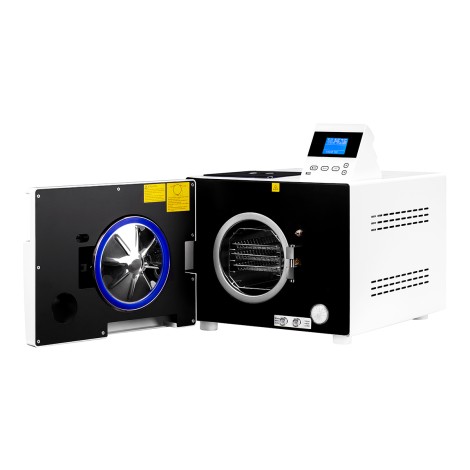

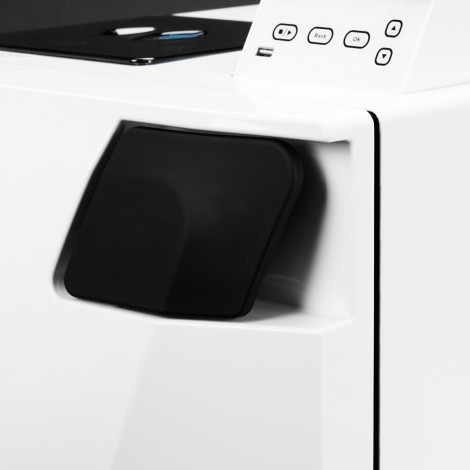

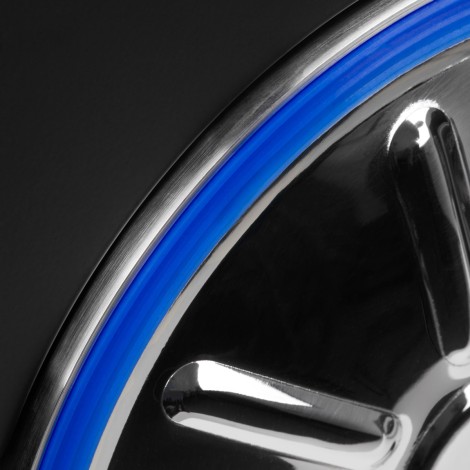

This autoclave complies with medical standards including ISO 13485, CE 1023, and European Standard BS EN 13060:2014 + A1:2018. It has a 304-grade stainless steel chamber and a double door lock system to ensure safety and durability in professional sterilization processes.
- Medical Class B autoclave suitable for sterilizing wrapped and unwrapped instruments.
- Equipped with a removable high-quality bacterial filter every 150 cycles.
- Includes self-diagnosis and water quality sensors for operational safety.
User-Friendly and Efficient Operation

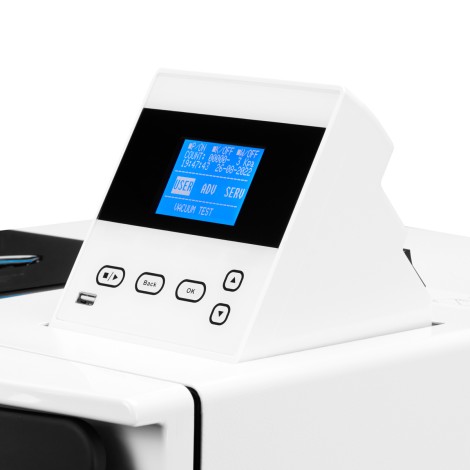

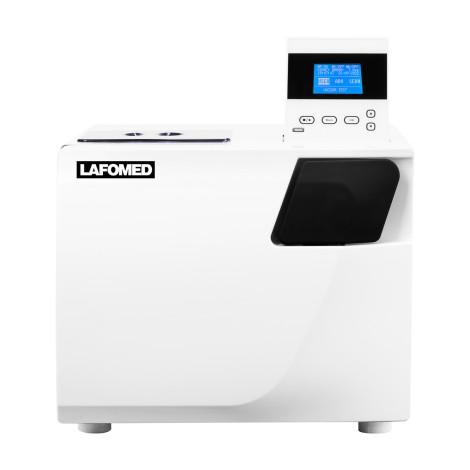

The device features an LCD display showing cycle time, temperature, pressure, and progression, with an English-language intuitive menu. It offers 10 automatic programs: seven sterilization cycles (including prion sterilization), two test programs (Bowie-Dick and vacuum test), and a cleaning cycle. A user program function allows custom sterilization parameter settings.

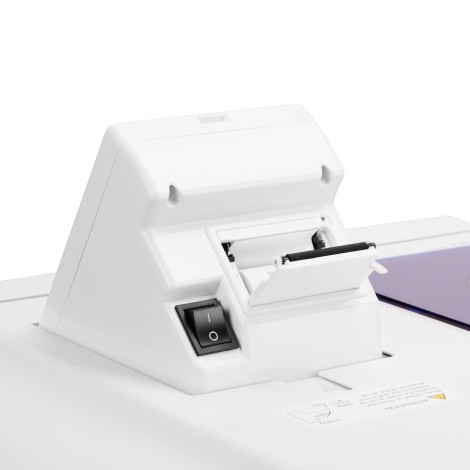

- Built-in thermal printer does not require ink and records cycle results.
- USB port for external saving of sterilization data.
- Preheat and keep warm functions help reduce waiting time between cycles.
- Autostart function enables delayed program start set by date/time or hours later.
- Hot key function recalls the last sterilization program used for convenience.
Convenient Design Features

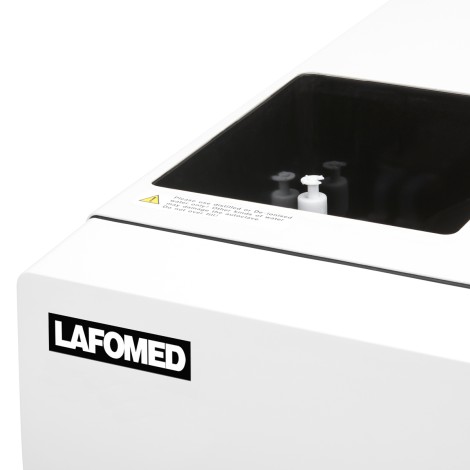

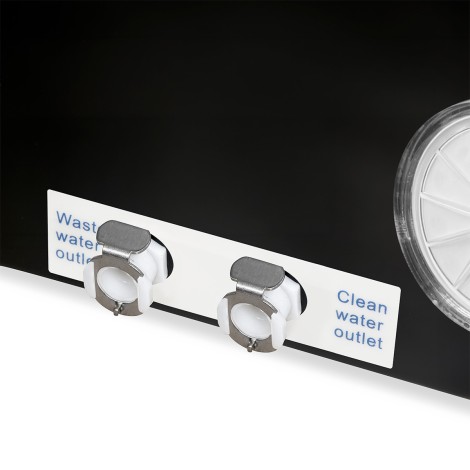

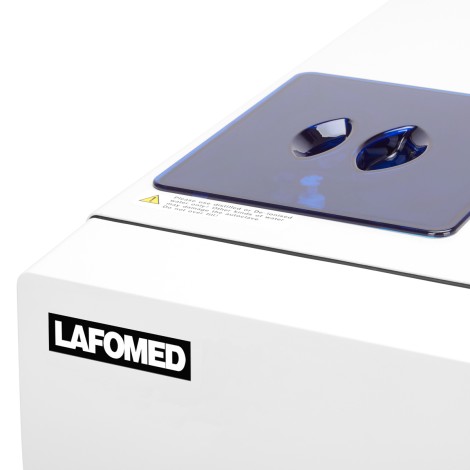

The compact autoclave includes built-in clean and used water tanks, each with a capacity of 2.5 litres, reducing the need for frequent refilling and emptying. Drainage is accessible at the front of the device for ease of maintenance. Rapid sterilization programs are available, with the shortest full cycle including drying lasting 7 minutes.

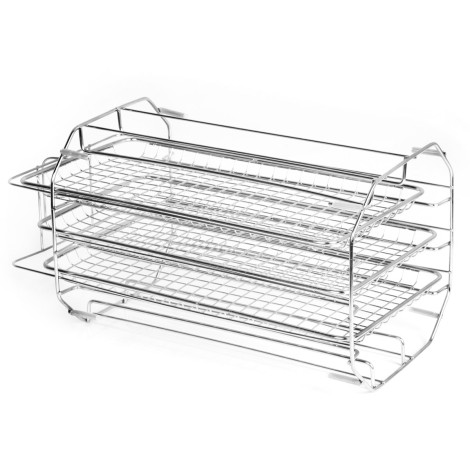

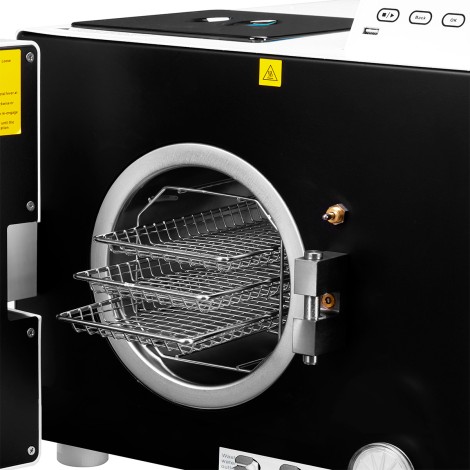

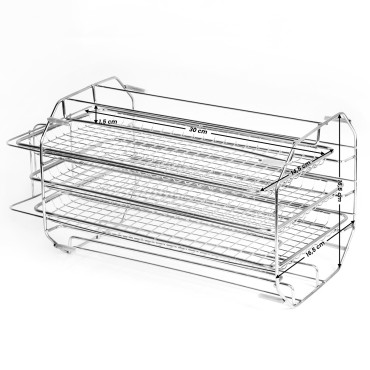

- The 12-litre chamber accommodates three trays, with dimensions of 20 cm diameter and 33 cm depth.
- Power supply requirements are 230 V and 1.95 KW.
- A technical passport is included for reference and regulatory compliance.
Technical specifications
- Model: LFSS12AC
- Brand: LAFOMED
- Class: Medical Class B
- Chamber Capacity: 12 L
- Chamber Dimensions: ⌀ 20 cm; depth 33 cm
- Chamber Material: 304-grade stainless steel
- Power: 1.95 KW
- Voltage: 230 V
- Frequency: 50/60 Hz
- Maximum Work Temperature: 137 ℃
- Maximum Work Pressure: 0.21-0.23 MPa
- Design Pressure: -0.1 / 0.27 MPa
- Dimensions (Device): 65 cm x 52 cm x 41.5 cm
- Package Dimensions: 75 cm x 58 cm x 50 cm
- Net Weight: 47.7 kg
- Weight with Packaging: 59 kg

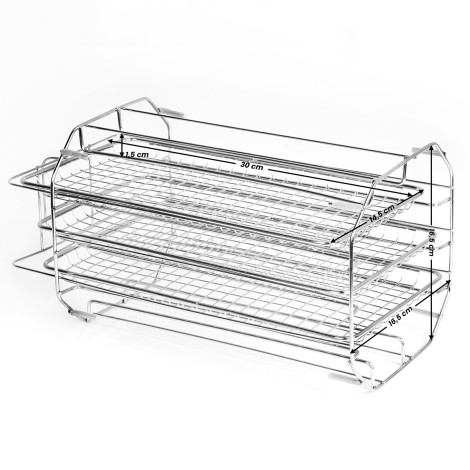

- Tray Dimensions: 14 cm x 30 cm x 2 cm
- Automatic Programs: 7 sterilization, 2 test, 1 cleaning
- Warranty: 36 months
- Certificates and Standards: CE 1023, ISO 13485, BS EN 13060:2014+A1:2018
