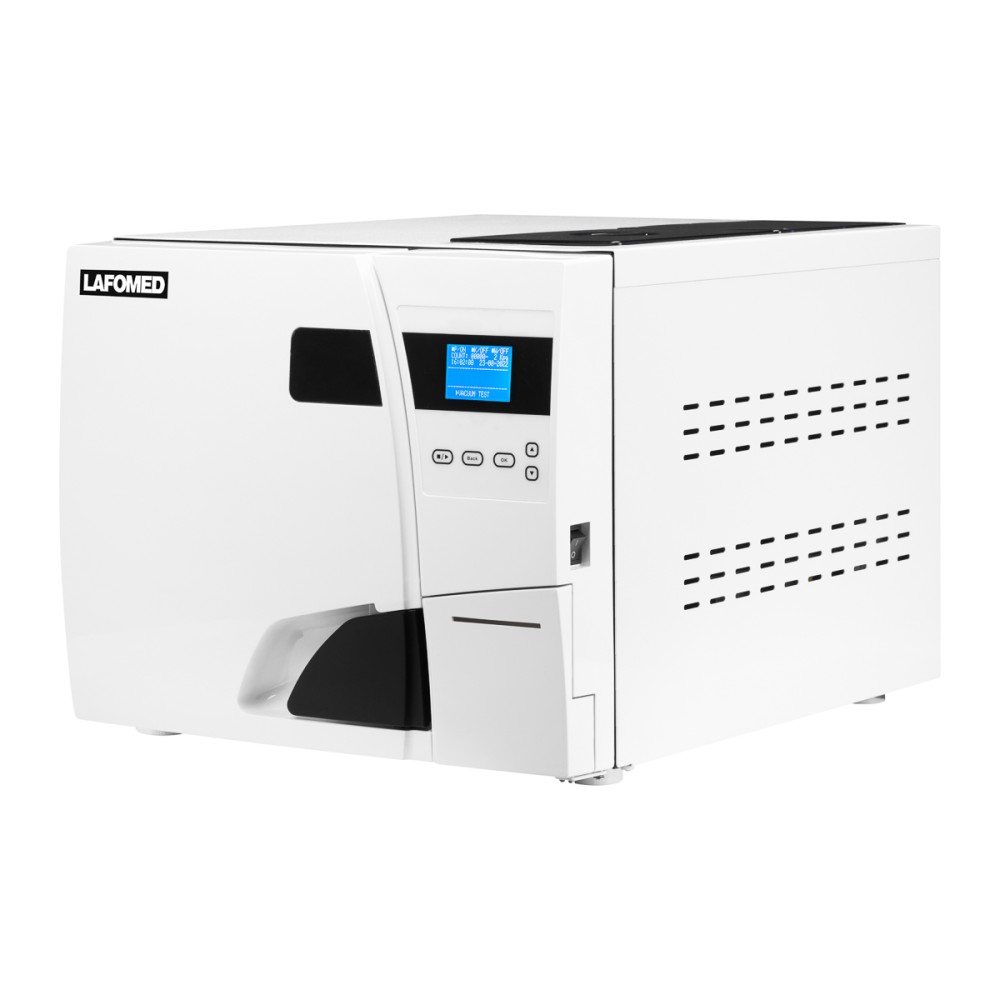

Lafomed autoclave premium line lfss18aa lcd with 18l class b medical printer

The Lafomed Premium Line LFSS18AA LCD is a Class B medical autoclave with an 18-litre chamber, designed for sterilising invasive medical instruments and suitable for various professional settings including hospitals, dental and ophthalmological practices, biological research, veterinary, and certain non-medical uses.

Intended Use and Applications

This autoclave is intended for sterilising invasive medical devices such as surgical instruments, dental tools, and syringes. It can sterilise packaged (single and multi-layer) and unpackaged solid, porous, and recessed items according to EN 13060:2004+A2:2010 standards, helping to prevent cross-contamination. It is not designed for sterilising liquids.

The device is recommended for hospital wards, dental and ophthalmological clinics, biological research institutes, and also suits non-medical environments like hairdressing, beauty salons, tattoo studios, aesthetic medicine, and veterinary applications.

• Sterilises invasive medical devices both packaged and unpackaged
• Conforms to EN 13060:2004+A2:2010 standards
• Suitable for medical, veterinary and selected non-medical professional settings

Features and Operation

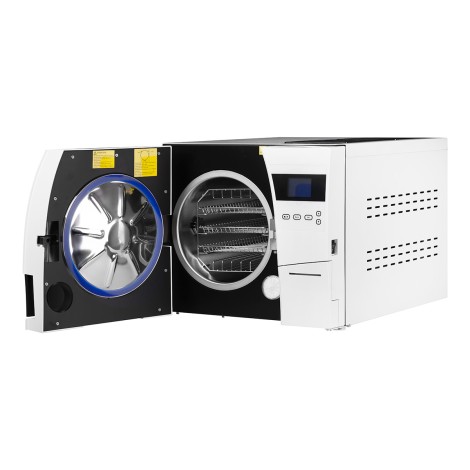

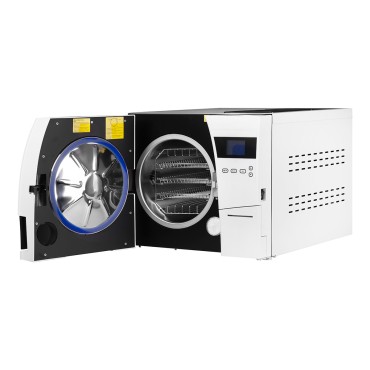

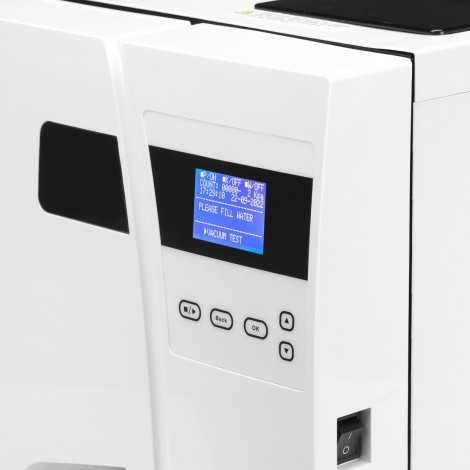

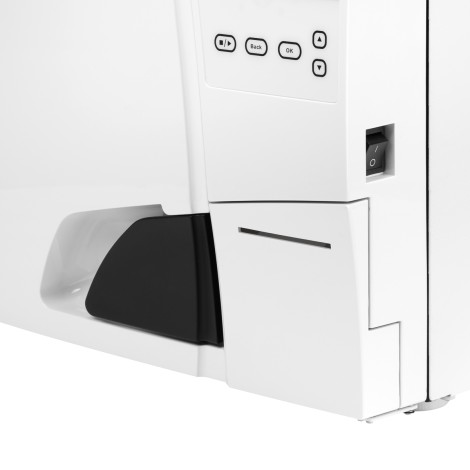

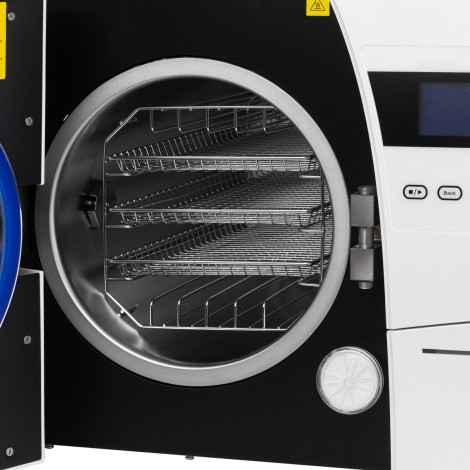

The LFSS18AA features a durable 304-grade stainless steel chamber measuring 25 cm in diameter and 31 cm in depth, accommodating up to three trays within its 18-litre capacity. It includes an LCD display that shows time, temperature, pressure, and cycle progress.

The autoclave offers 10 automatic programmes: seven sterilisation cycles (including 121°C and 134°C modes, and a 135°C prion programme), two test cycles (Bowie & Dick and vacuum), and one cleaning programme. It also allows for user-defined programmes with adjustable parameters such as time, drying, and vacuum cycles.

Additional functions include preheating, temperature maintenance for up to 8 hours, a shortcut for last used programme, autostart scheduling with delay options, and control over drying time, enabling rapid sterilisation cycles down to 7 minutes.

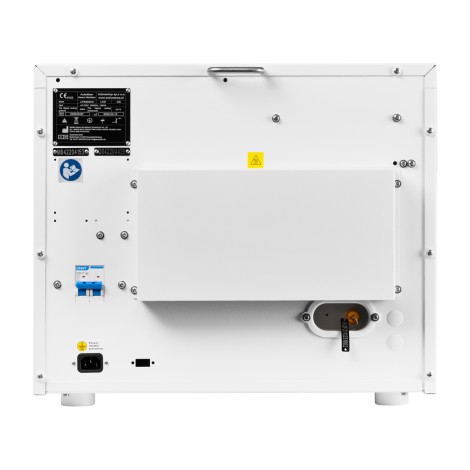

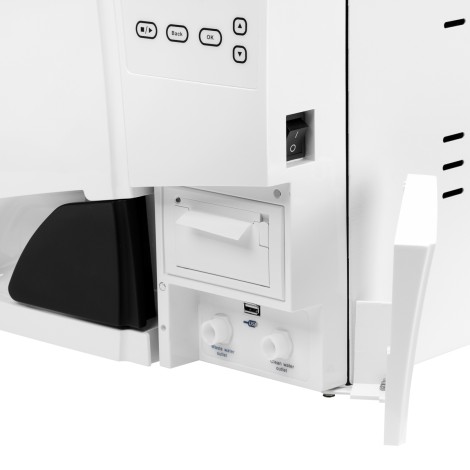

Safety and operational features include a self-diagnostic system, water quality sensor, double door lock mechanism (mechanical and electronic), and a high-quality replaceable bacterial filter. The device has built-in tanks for distilled clean water and used water with drainage at front or rear. An integrated thermal printer requiring no ink and a USB port enable printing and digital saving of cycle data. The interface is in Polish.

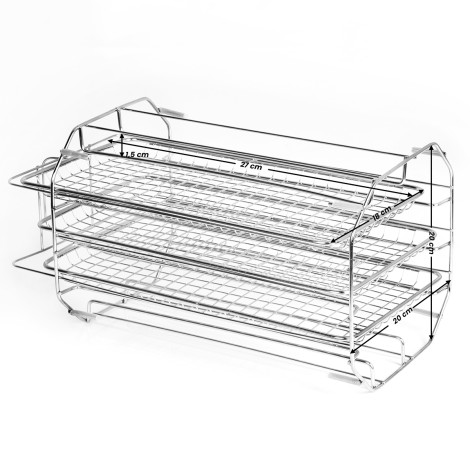

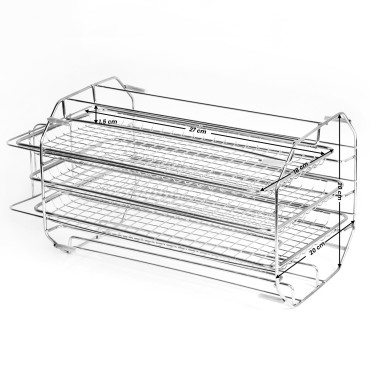

• 18-litre stainless steel chamber with three trays
• LCD display of cycle status
• 10 automatic and user-defined programmes
• Preheating and temperature maintenance functions
• Short cycle option with drying control
• Built-in thermal printer and USB data port
• Self-diagnostic and water quality monitoring systems
• Double mechanical and electronic door locks
• Built-in clean and waste water tanks with drainage options
• Polish language user interface

Safety, Certification and Warranty

The autoclave is certified to CE 1023 and ISO 13485 standards and complies with BS EN 13060:2014+A1:2018. It operates up to 137 ℃ at pressures between 0.21 and 0.23 MPa, with safety valve openings from 0.24 to 0.26 MPa.

The product comes with a 24-month warranty independent of cycle count, with an option to extend for an additional 12 months after a paid technical inspection before the initial warranty expires. A technical passport is included.

A nationwide network of authorised Lafomed service centres provides warranty and post-warranty repairs, annual inspections, selected on-site servicing, replacement devices during repairs, and prompt support.

• Certified to CE 1023, ISO 13485, BS EN 13060:2014+A1:2018
• Maximum temperature 137 ℃, operating pressure 0.21-0.23 MPa
• 24-month warranty with optional 12-month extension
• Technical passport included
• Nationwide authorised service centres offering comprehensive support

Technical specifications

• Model: LFSS18AA LCD
• Brand: LAFOMED
• Medical Class: Class B
• Chamber Capacity: 18 litres

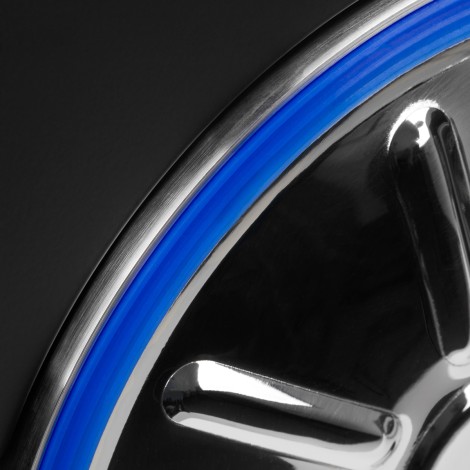

• Chamber Material: 304 grade stainless steel
• Chamber Dimensions: Diameter 25 cm, Depth 31 cm
• Power: 2.4 KW
• Voltage: 230 V
• Frequency: 50/60 Hz
• Maximum Operating Temperature: 137 ℃
• Maximum Operating Pressure: 0.21-0.23 MPa
• Safety Valve Opening Pressure: 0.24 MPa – 0.26 MPa
• Automatic Programmes: 7 sterilisation, 2 test (Bowie & Dick and vacuum), 1 cleaning
• User Program: Customizable time, drying time, vacuum cycles
• Display: LCD showing time, temperature, pressure, cycle progress
• Printer: Built-in thermal printer (no ink required)

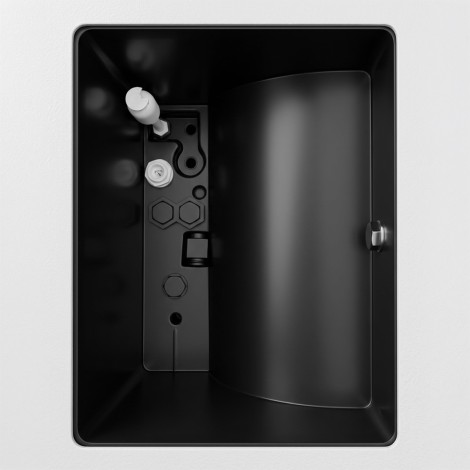

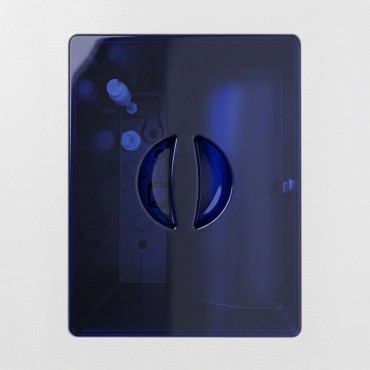

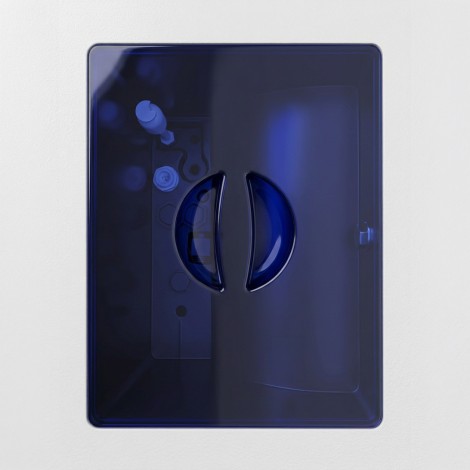

• Water Tanks: Built-in clean (distilled) and used water tanks with drainage options
• Dimensions (External): 65 cm x 50 cm x 43 cm
• Package Dimensions: 73 cm x 57 cm x 50 cm
• Net Weight: 53 kg
• Gross Weight with Packaging: 61 kg
• Language Interface: Polish
• Certifications: CE 1023, ISO 13485, BS EN 13060:2014+A1:2018

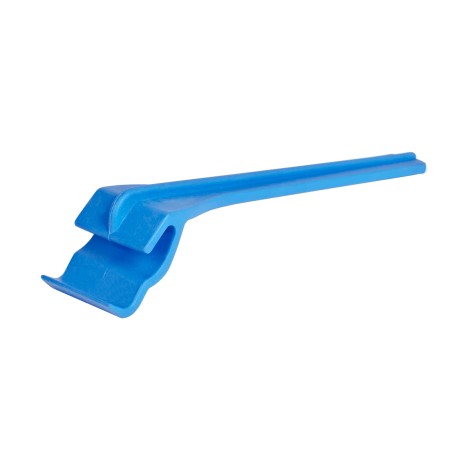

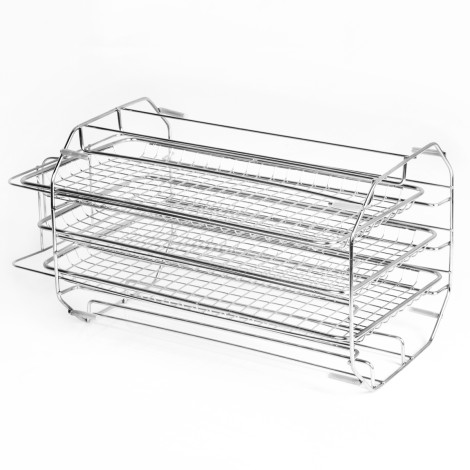

• Included Accessories: Drain hose, trays, power cord, tray rack, tray removal handle, fuse, user manual in Polish, technical passport
