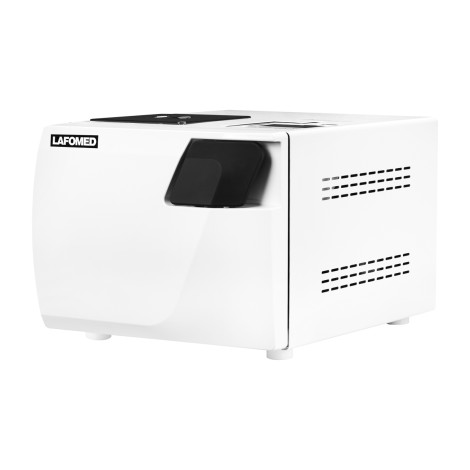

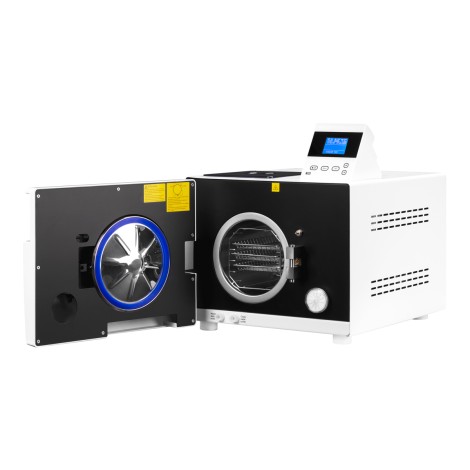

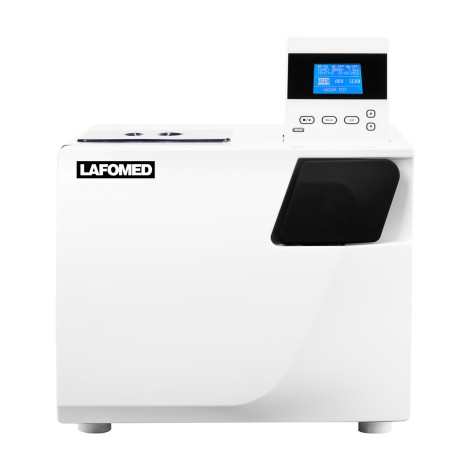

Lafomed Autoclave Compact Line LFSS23AC 23 L class B with a printer

The Lafomed Autoclave Compact Line LFSS23AC is a 23-litre Class B autoclave designed for sterilisation of both medical and non-medical instruments. It features a built-in thermal printer and advanced functionality suitable for hospital departments, dental and ophthalmology clinics, biology institutes, as well as salons and tattoo studios.

High-Quality Class B Sterilisation

This Class B autoclave meets the highest standards for sterilising unpackaged and wrapped items, including solid, porous, concave instruments and prions. Certified to ISO 13485, CE 1023, and European Standard BS EN 13060:2014 + A1:2018, it provides multiple automatic sterilisation programs tailored to various needs.

• 10 fully automatic programs: 7 sterilisation cycles, 2 test programs (Bowie & Dick and Vacuum test), and 1 cleaning program
• User-programmable cycle settings with adjustable parameters
• Auto start and hotkey functions for ease of use
• Preheat and keep warm functions to prepare and maintain chamber temperature

User-Friendly Design and Connectivity

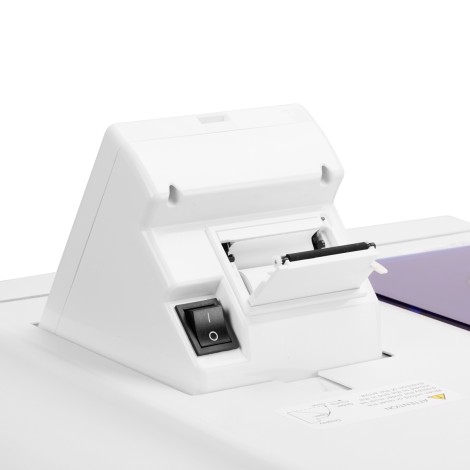

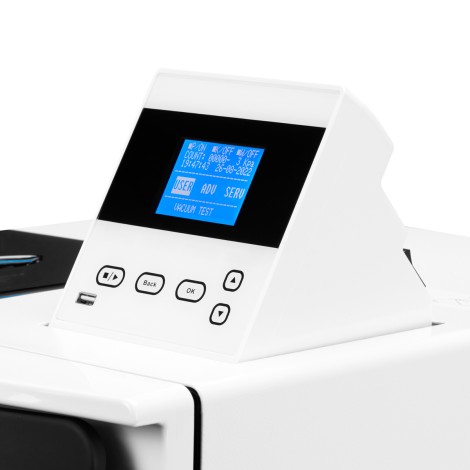

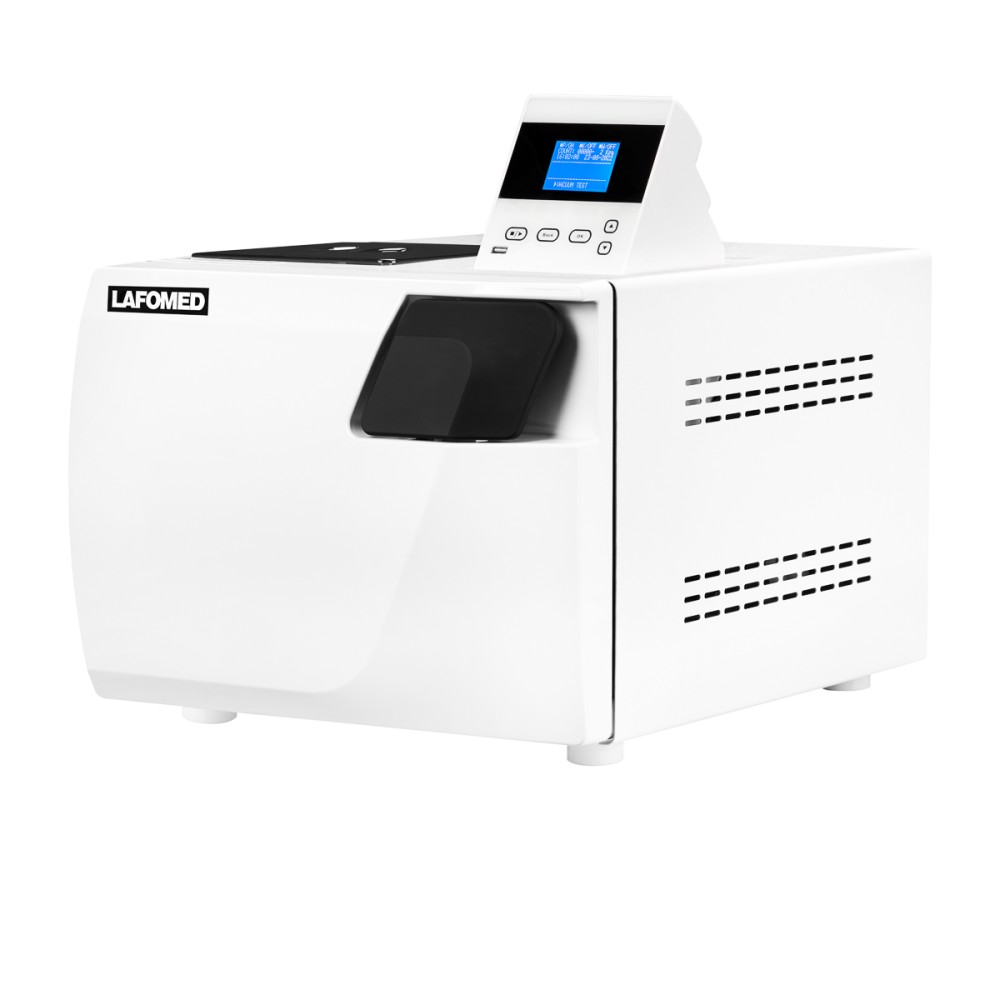

The autoclave features an intuitive English-language menu displayed on an LCD screen showing time, temperature, pressure, and cycle progress. A USB port allows digital storage of cycle data, and the built-in thermal printer produces hard copy records without ink.

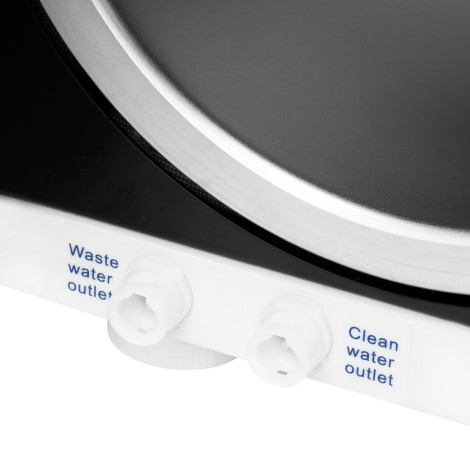

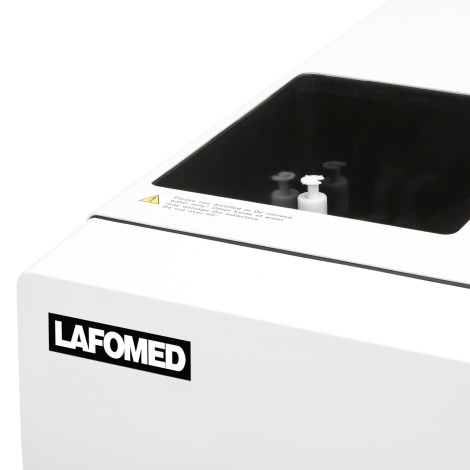

• Large 2.5-litre built-in tanks for clean (distilled or deionised) and used water with front drainage
• Self-diagnosis and water quality monitoring systems to protect the device

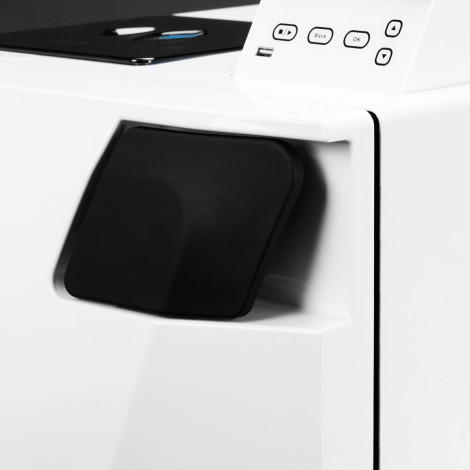

• Double mechanical and electronic door lock system

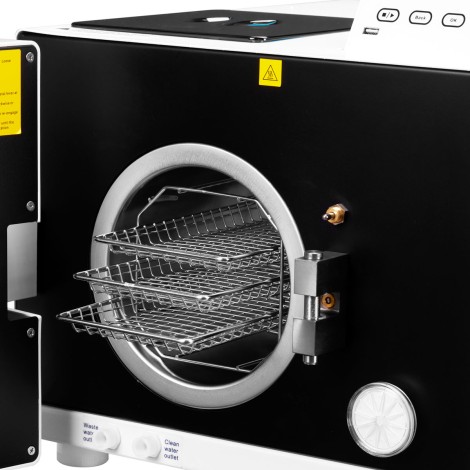

• 304-grade stainless steel chamber for durability and hygiene

Technical Specifications and Included Accessories

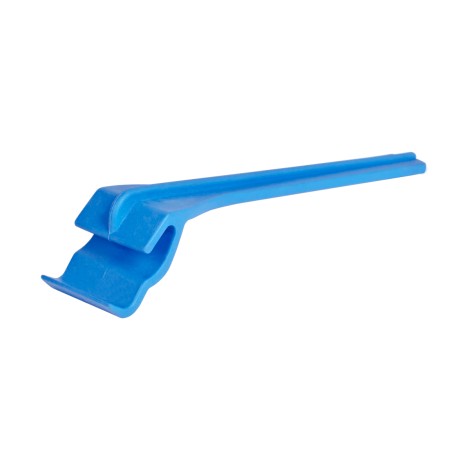

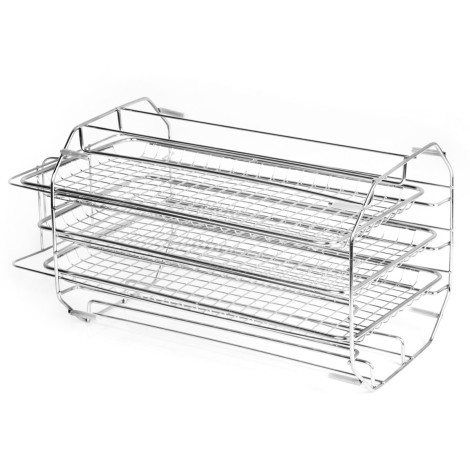

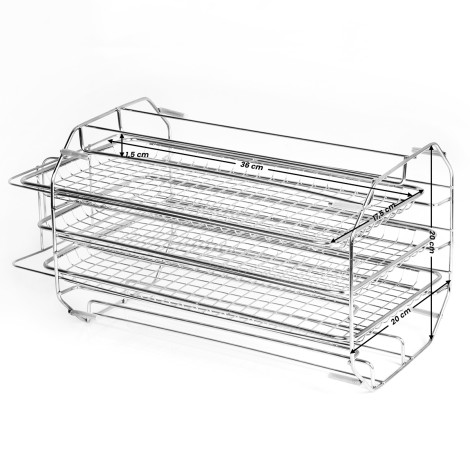

The device operates on 230 V with 2.4 kW power and supports 50/60 Hz frequency. Chamber dimensions are 25 cm diameter by 40 cm depth; overall size is 65 cm × 52 cm × 42 cm. The package includes three trays, a drain hose, tray stand, tray removal holder, power cord, fuse, English manual and technical passport. A 36-month warranty applies without cycle count limits.

• Maximum working temperature 137 °C and maximum pressure 0.21-0.23 MPa
• Cycle durations range from 7 to 30 minutes after chamber warming
• Includes high-quality bacterial filter removable every 150 cycles

Technical specifications

• Model: LFSS23AC
• Brand: LAFOMED
• Capacity: 23 L
• Class: B
• Power: 2.4 KW
• Voltage: 230 V
• Frequency: 50/60 Hz
• Maximum temperature: 137 ℃
• Maximum pressure: 0.21-0.23 MPa
• Chamber diameter: 25 cm
• Chamber depth: 40 cm
• Device dimensions (WxDxH): 65 cm x 52 cm x 42 cm
• Material chamber: 304-grade stainless steel
• Net weight: 53.5 kg
• Warranty: 36 months
• Certificates: CE 1023, ISO 13485, BS EN 13060:2014+A1:2018
