Woson autoclave new tanco 12l type d with printer class b - medical

The Woson New Tanco 12L autoclave is a Class B medical sterilizer designed for professional use in beauty salons, nail salons, tattoo studios, hospitals, and clinics. It effectively sterilizes a wide range of instruments, both wrapped and unpackaged, complying with medical safety and hygiene standards.

Sterilization Programs and Functions

This device offers four sterilization programs: 'Unpacked' at 134°C with a 4-minute sterilization time and 9-minute drying time; 'Packed' at 134°C with a 5-minute sterilization time and 9-minute drying time; 'Prion' at 134°C with an 18-minute sterilization time and 9-minute drying time; and 'Porous' at 121°C with a 20-minute sterilization time and 18-minute drying time. These programs use one to three vacuum cycles depending on the load type.

It includes two test programs allowing Vacuum Test, Bowie-Dick Test, and Helix Test, plus an automatic pipe cleaning program and a drying function that meets elevated drying standards. Sterilization parameters can be customized and saved via a personalized mode.

• Class B medical sterilizer with fractionated pre-vacuum
• Four sterilization programs for different instrument types
• Two test programs for process validation
• Automatic pipe cleaning and drying functions

User Interface and Monitoring

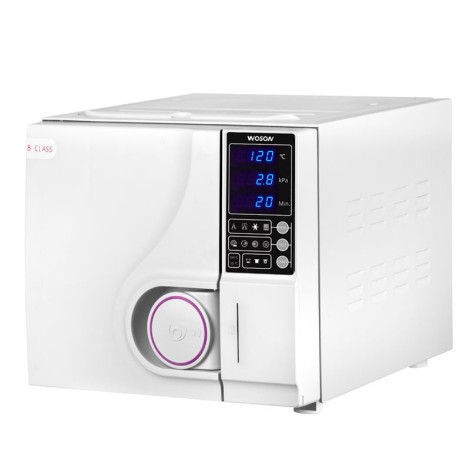

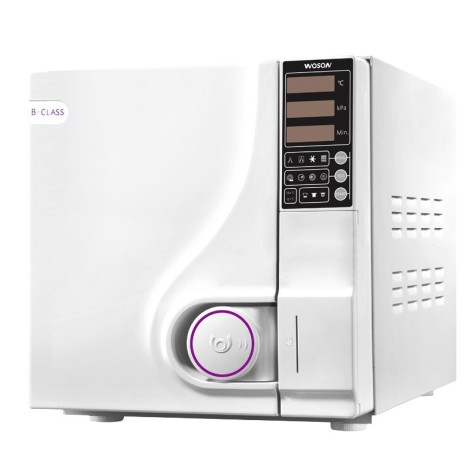

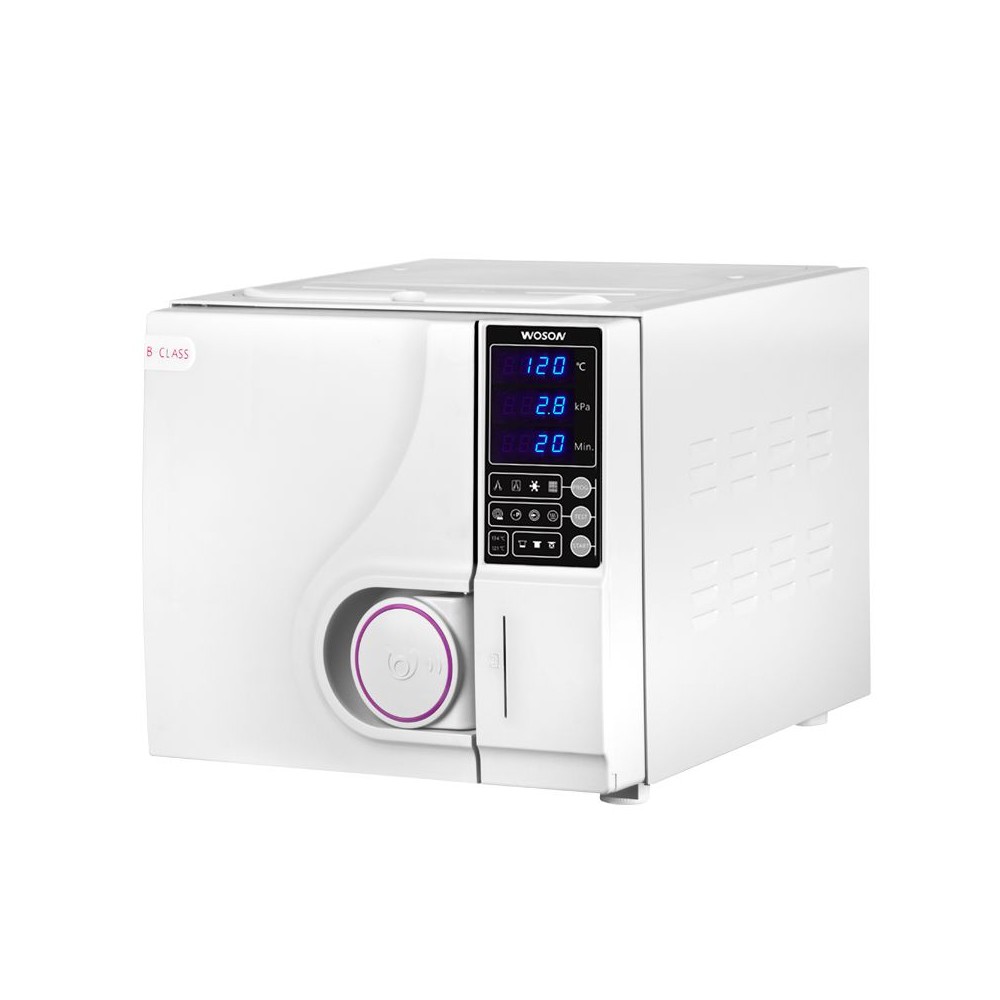

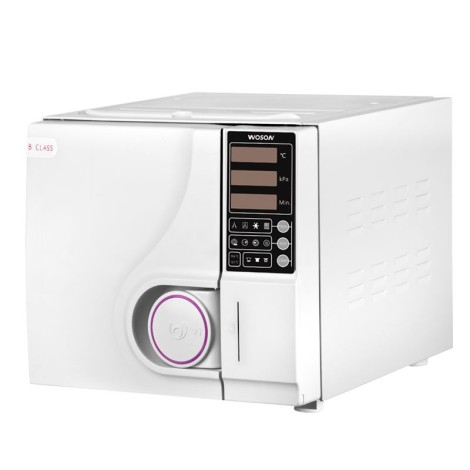

An LED control panel allows selection and monitoring of sterilization programs, displaying temperature, pressure, and time during operation.

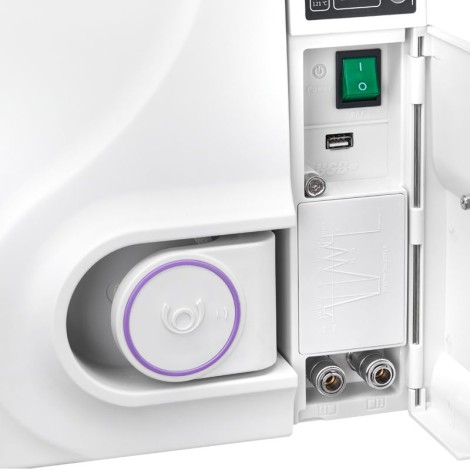

A built-in thermal printer produces hard copies of cycle data including date, time, temperature, and pressure. The USB port enables saving sterilization results digitally to the included memory stick.

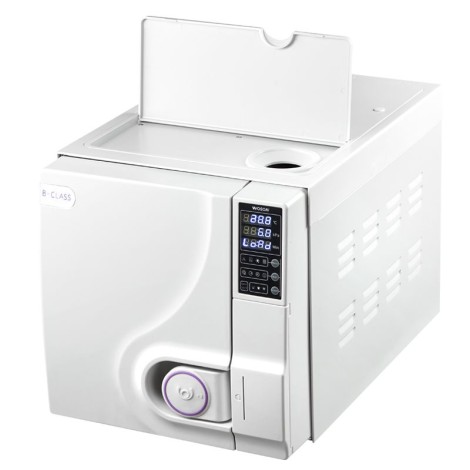

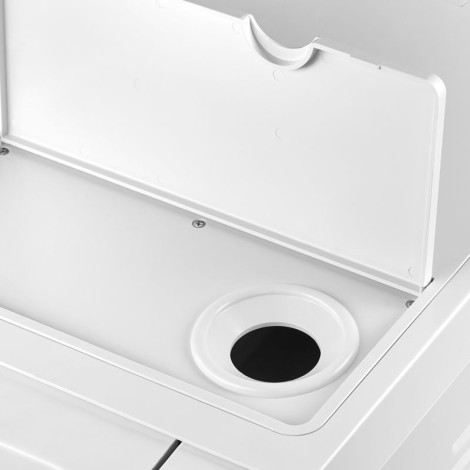

Built-in tanks for distilled and used water support operation; distilled water quality is monitored by the device. The self-diagnosis system displays messages for issues such as an improperly closed door or water tank alerts to prevent equipment damage.

• LED display for program control and monitoring
• Built-in thermal printer for cycle records
• USB port with memory stick for digital data storage
• Integrated distilled and used water tanks with quality control
• Self-diagnosis system with error messages

Construction and Compliance

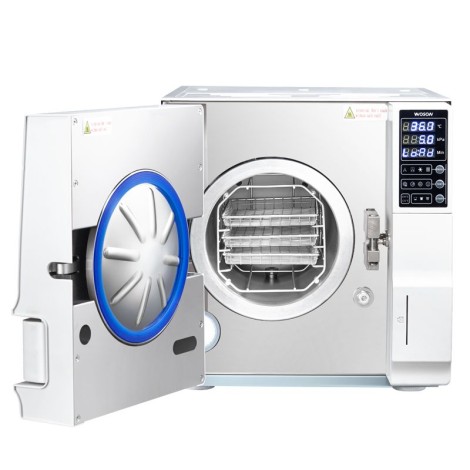

The sterilization chamber is made from medical-grade stainless steel, offering durability suitable for professional hygiene requirements.

With a 12-litre capacity, the chamber accommodates a basket and three trays for instrument placement.

The autoclave meets multiple international standards including CE 0197, EN 61010-1, EN 61010-2-040, EN 13060, and EN 61326-1. The manufacturer holds EN ISO 9001 and EN ISO 13485 certifications. A technical passport is included, and the product carries a 24-month warranty independent of usage.

• Medical-grade stainless steel chamber
• 12-litre capacity with three trays
• Complies with CE 0197 and relevant EN standards
• Includes technical passport and 24-month warranty

Technical specifications

• Brand: WOSON
• Model: New Tanco 12L
• Type: Class B medical autoclave with printer
• Capacity: 12 litres
• Power: 1600 W
• Voltage: 220VAC ~ 240VAC, 50Hz~60 Hz
• Maximum operating temperature: 145°C
• Maximum operating pressure: 2.5 bar (250 kPa)
• Minimum operating pressure: -0.9 bar (90 kPa)
• Time adjustment ranges: 20 to 60 minutes at 121°C; 4 to 20 minutes at 134°C
• Drying time adjustment: 0 to 60 minutes in 5-minute increments
• Vacuum multiplication: 1-fold, 3-fold or 5-fold
• Chamber material: Stainless steel (medical grade)
• Chamber internal dimensions: Depth 295 mm; Diameter 190 mm
• Internal tray dimensions: 245 x 145 x 15 mm
• External dimensions: 545 x 382 x 375 mm
• Packaging dimensions: 652 x 549 x 486 mm
• Standards and certifications: CE 0197 (93/42/EEC, 97/23/WE), EN 61010-1, EN 61010-2-040, EN 13060, EN 61326-1
