Manual manual crankcase with a latch 10 m to 2800 kg MSW

€49.88
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer number: MSW 10060180

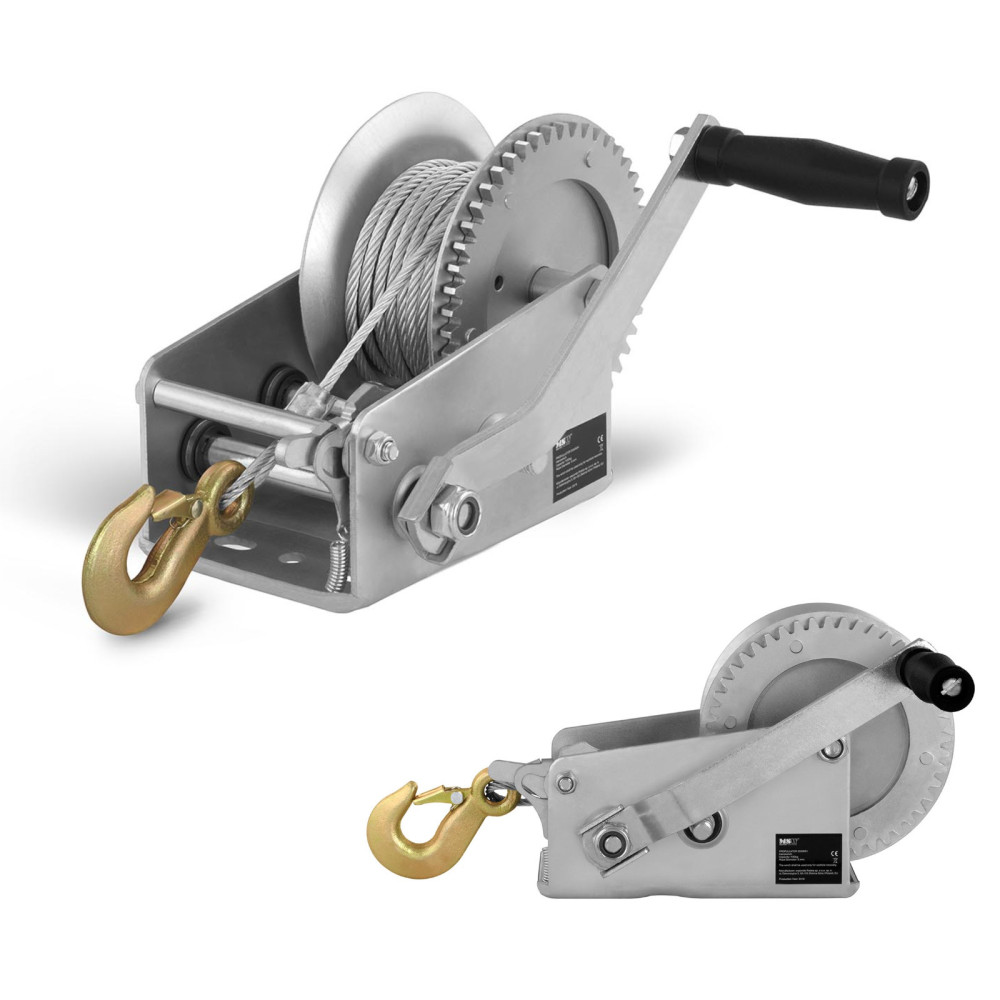

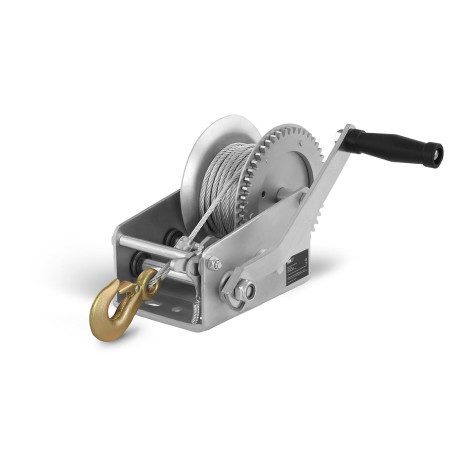

Practical hand crankcase is able to Draw objects weighing up to 2800 kgif they are on wheels. In the case of subject and floating objects, the maximum capacity is respectively 1130 kg and 2000 kg. Thanks to Appearance 2: 1 + 4: 1, Equipment effectively turns muscle strength for pulling force, which allows smooth use of the winch. A sure grip guarantees Rotating handle Mounted on a crank.
The product is equipped with a length of length 10 m made of galvanized steel. It is characterized by resistance to twisting and a long service life. In addition, at its end Strong hook with latch. For High resistance of the housing Also corresponds to galvanized steel. It affects the resistance of equipment to damage and weather conditions.
Safety at work guarantees Automatic braking system. In the event of loss of adhesion, it makes the retractable object in place. Additionally ratchet Provides a secure rotation for crank.
Product features:
  • - Power - a large lifting capacity, the possibility of increasing force with a clad,
  • - Safety - automatic brake, latching mechanism,
  • - Performance - a smooth operation provided by applying 2: 1 + 4: 1,
  • - Strength - Housing and rope made of galvanized steel.

Technical parameters:
  • - Model - Propullator 2500mh
  • - catalog number - 10060180
  • - article - New
  • - housing material - Galvanized steel
  • - Rope material - Galvanized steel
  • - Korbic service - Manual
  • - Transfer - 2: 1 + 4: 1
  • - tide force - 1130 kg for standing / lying facilities / 2000 kg for floating objects / 2800 kg for pending objects
  • - Rope length - 10 m Total 9.5 m usable
  • - Rope diameter - 5 mm
  • - brake system - Automatic
  • - Work control - Crank mechanism with latch
  • - Size of the mounting plate (DXS) - 19 x 10 cm
  • - thickness of the mounting plate - 4 mm
  • - Free Run function - So
  • - Dimensions (DXSXW) - 26 x 14.5 x 17.2 cm
  • - weight - 5.75 kg
  • - Dimensions of shipment (DXSXW) - 25.5 x 15.5 x 19 cm
  • - shipping weight - 6 kg

Included:
  • - handlall
  • - EN statement
