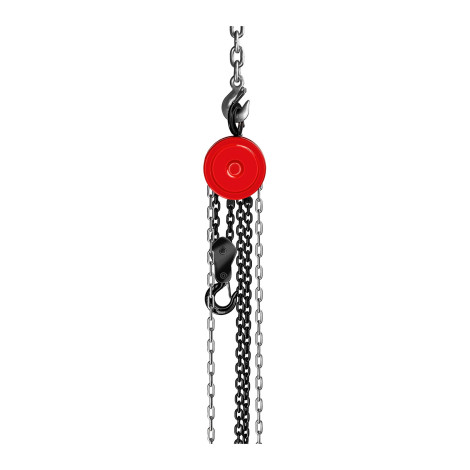

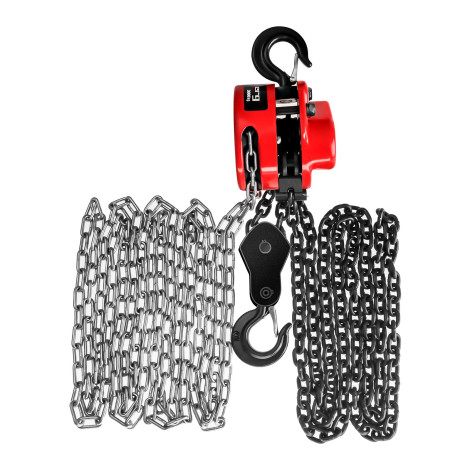

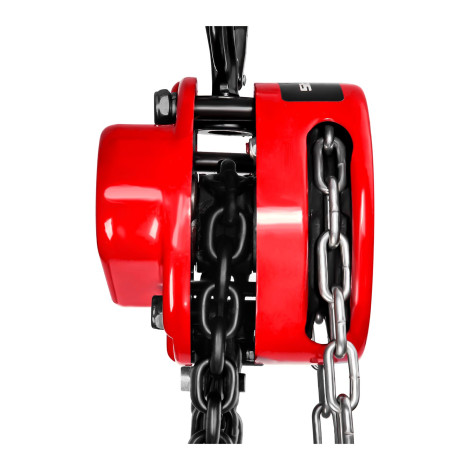

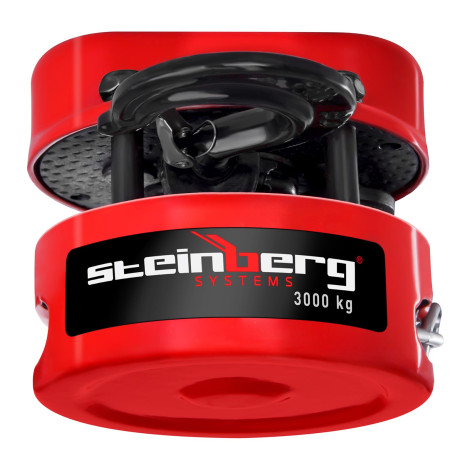

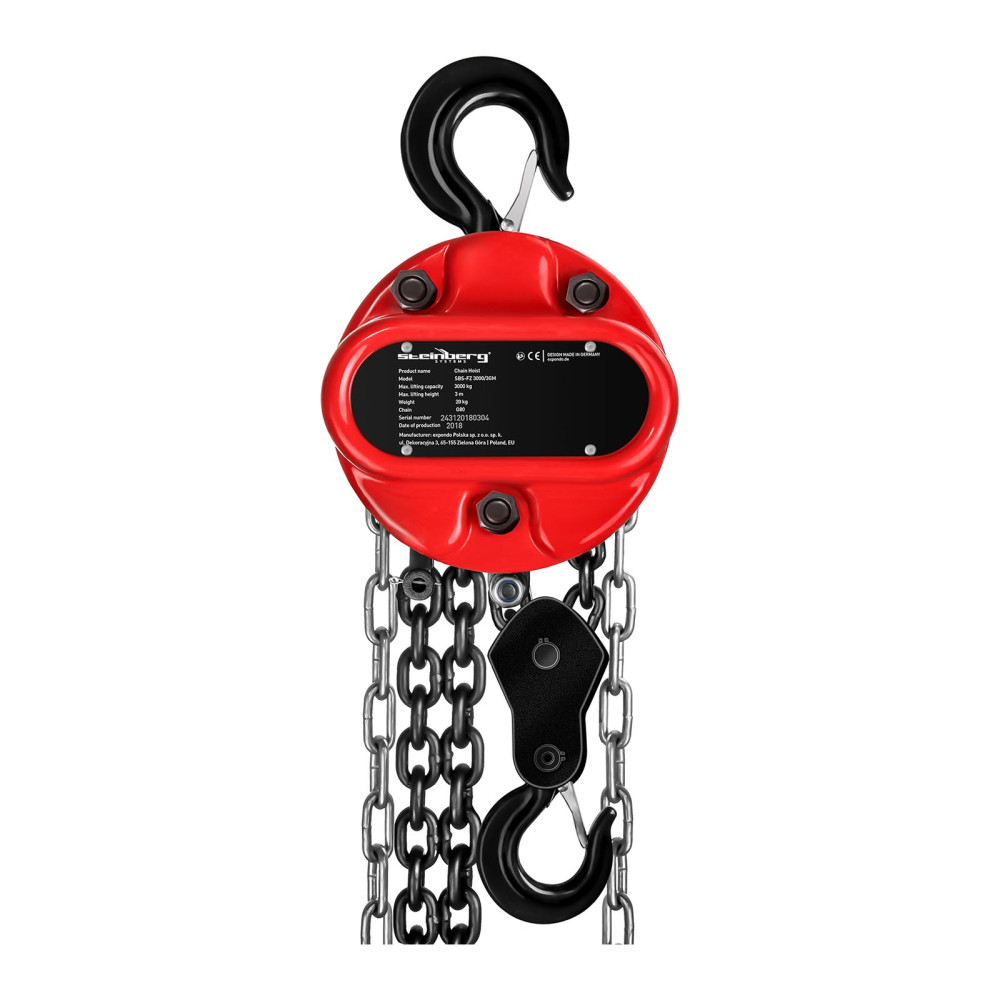

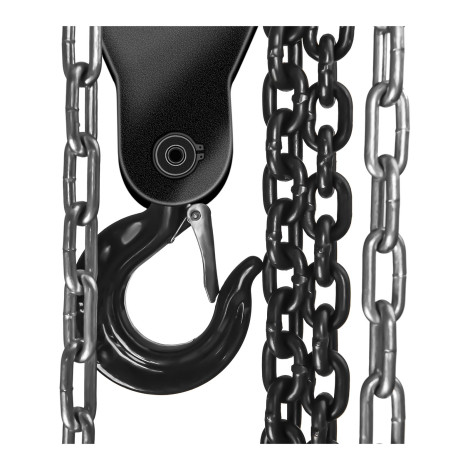

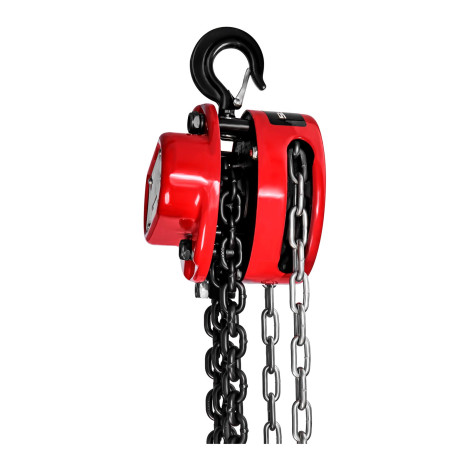

Chain string chain string chain hoist 3 t / 3 m

Manufacturer number: Steinberg Systems 10030372Chain winch German brand Steinberg Systems This is a versatile device that works perfectly in various production companies, mechanics plants, warehouses or construction sites. Its basic application is raising and lowering heavy objects. A manual chain lift allows you to raise items about a weight of 3000 kg even to the height of twelve meters. Due to durable chains (G80 type, 8 mm diameter) and make elements from high quality steel, work using the model SBS-FZ 3000 / 3GM is very secure. This also affects the safety mechanism that stops the operation of the equipment when the chain is released. Product features:

• - Performance - the maximum lifting capacity of up to 3 t allows you to raise items to a height of 3 m,
• - Convenience - the control lever and safety mechanism that stops the operation of the equipment when the chain is released,
• - Safety - Steel construction, high quality.

Technical parameters:

• - Model - SBS-FZ 3000 / 3GM
• - catalog number - 10030372
• - article - New
• - Maximum lifting capacity - 3000 kg
• - Material - Steel
• - Maximum lifting height - 3 m
• - Minimum distance between hooks - 480 mm
• - Required strength to raise the weight - 343 N
• - chain type - G80
• - Number of load-bearing chains - 2
• - chain link diameter - 8 mm
• - Dimensions (DXSXW) - 32.5 x 17,5 x 14.5 cm
• - weight - 20.5 kg
• - Dimensions of shipment (DXSXW) - 34.5 x 24.5 x 19.5 cm
• - shipping weight - 21.1 kg

 Included:

• Chain winch
• Manual EN
