Manufacturer's code:

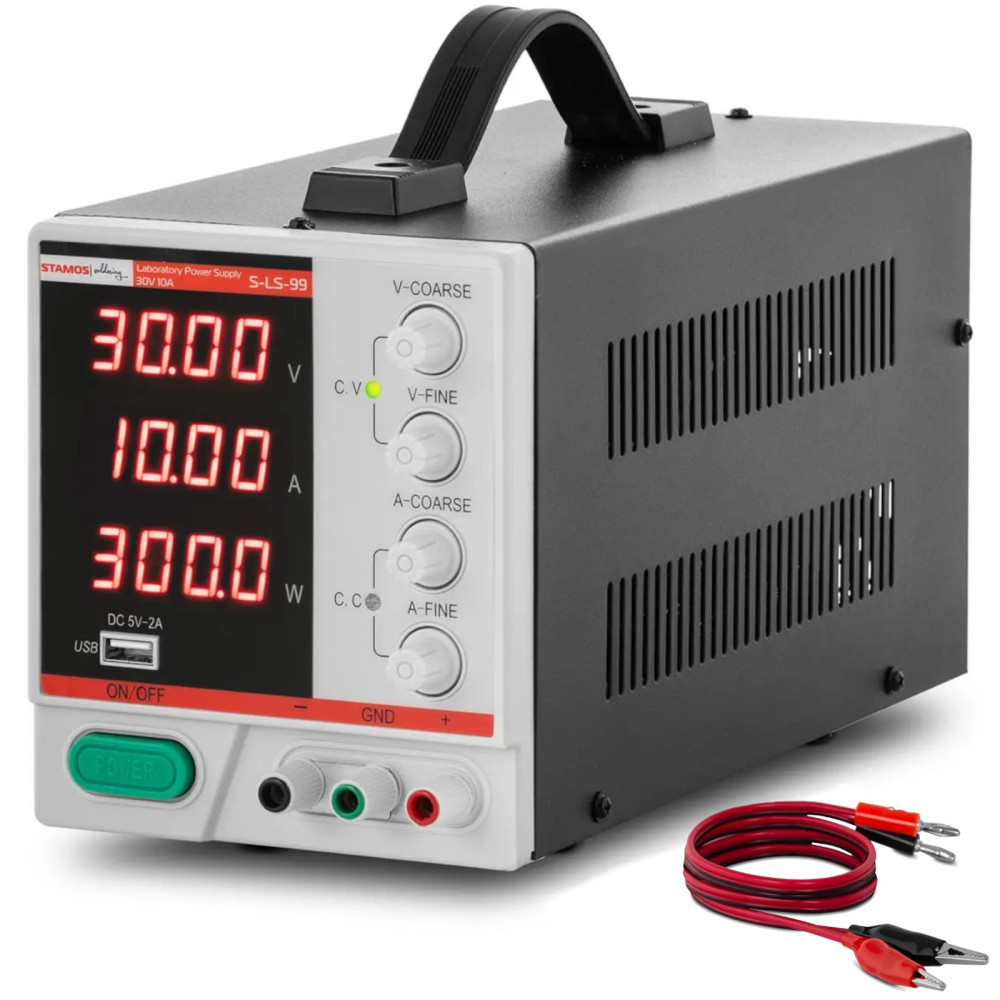

10021278Laboratory power supply Stamos Soldering It is a hardware designed to supply external devices with a fixed current. It has the option of individual current and voltage regulation. Thanks to the interface
USB 5 V Using the device is very effective. The power supply has been designed primarily for professional use in the industrial sector, laboratories, telecommunications, in workshops and research institutes. Linear technologist provides low residual rack and a small noise level. Big
LED display It allows you to easily read the set output, current and power values easily. Digits are easily visible even in bad lighting conditions. In addition, individual displays are with appropriate abbreviations of units, which means that at any time you can clearly distinguish the current and voltage. The power supply can be conveniently handled using knobs for coarse and accurate adjustments. Knobs allow for accurate voltage setting from 0 to 30 V DC and current from 0 to 10 A. The values can be controlled on large
LED display, Adjusting them with ease to your needs. If the power supply acts as a fixed voltage source (CV), the device automatically switches to a permanent current mode (CA) as soon as the load limit is reached. This prevents damage to the connected devices. Laboratory power supply is a device
High security standard. It has been equipped with overcurrent protection (OCP), overload protection (OPP), current limitation and special overheating protection (OTP). The integrated fan adapts to the operation of the equipment, thus providing optimal cooling. These precautions guarantee a safe operation of the power supply, even with intense and long-term use. Non-slip rubber legs provide secure device setting, and protect the surface from scratches.
Product features: - - DC voltage from 0 to 30 V and current from 0 to 10 A,
- - 4-digit LED display. Quick current check and output voltage,
- - coarse and accurate adjustment of the output voltage and output current using separate knobs,
- - built-in protection against overheating, overcurrent and excessive load,
- - Intelligent temperature control and automatic change from permanent permanent voltage.
Technical parameters: - - catalog number - 10021278
- - article - New
- - Model - SEC-ĺş-99
- - Color - Gray
- - Display - Led
- - Tension [V] - 230
- - power [W] - 300
- - Rainting - CV: ≤ 0.3% MV RMS CC: ≤ 0.3% Ma RMS
- - connector [mm] - 4
- - Security - OCP, OTP, OPP
- - resolution - 4-digit LED display / 10 MV / 10 mA
- - Rated entrance current [A] - 1,7
- - current intensity [A] - 0-10
- - voltage range [V] - 0-30
- - voltage stabilization coefficient - CV: ≤ 0.3% CC: ≤ 0.3%
- - Current stabilization coefficient - CV: ≤ 0.5% FS CC: ≤ 0.3% FS
- - storage humidity - ≤ 70%
- - current stability - CC ≤ 0.3% FS
- - Display accuracy - Voltage: 0.01 V intensity: 0.001 A
- - voltage stability - CV ≤ 0.5% FS
- - Work humidity [%] - ≤ 80
- - storage temperature [deg C] - -20 - +85
- - Current regulation range [A] - 0-10
- - DC voltage adjustment range [V] - 0-30
- - Work stabilization coefficient - CV: ≤ 0.3% CC: ≤ 0.3%
- - Accuracy of parameter settings (25DEG C ± 5DEG C) - ± 0.3% FS
- - Relative permissible humidity of escaplet and storage [%] - ≤ 80
- - Insulation resistance [MΩ] - 100 MΩ
- - Response time to the increase / voltage / current decrease (at 10% load) [ms] - 400 ms
- - Dimensions (DXSXW) - 29 x 13 x 15 cm
- - weight - 2 kg
- - Dimensions of shipment (DXSXW) - 37 x 18 x 21 cm
- - shipping weight - 2.5 kg
Included: - - Laboratory power supply
- - User manual
