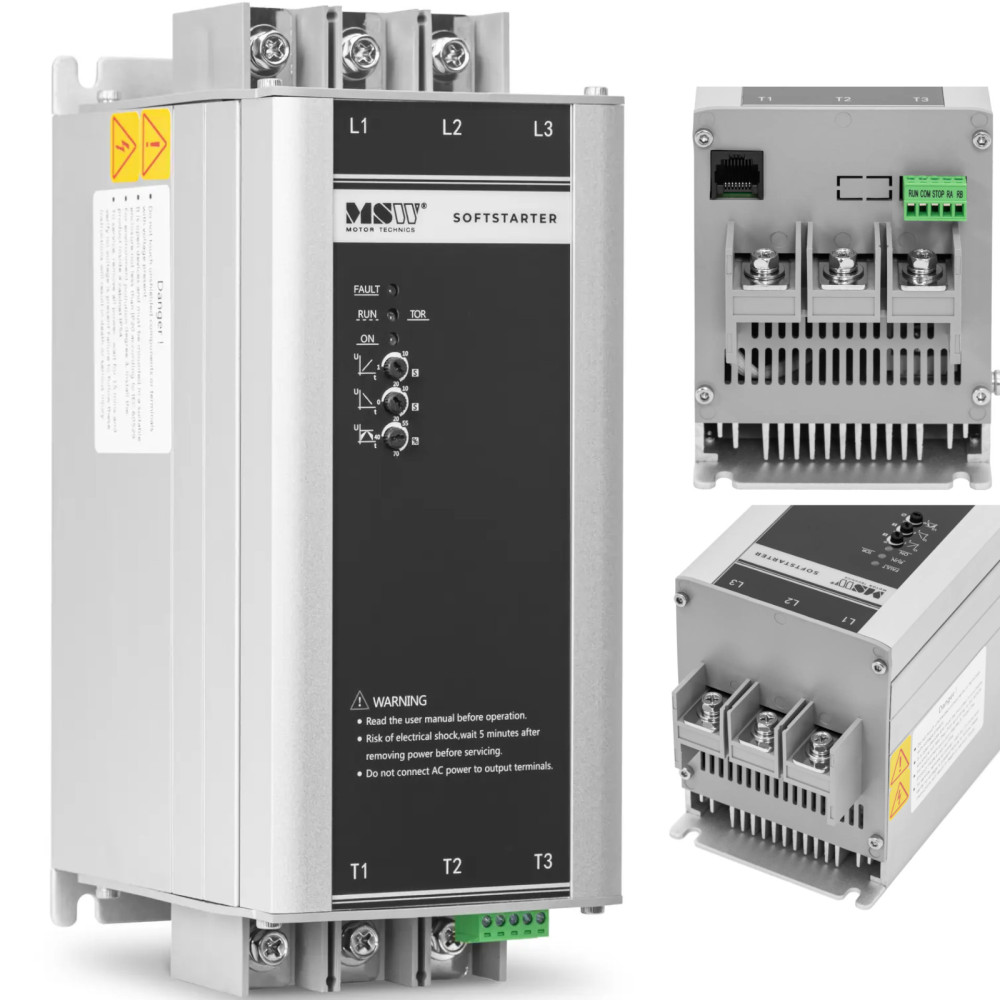

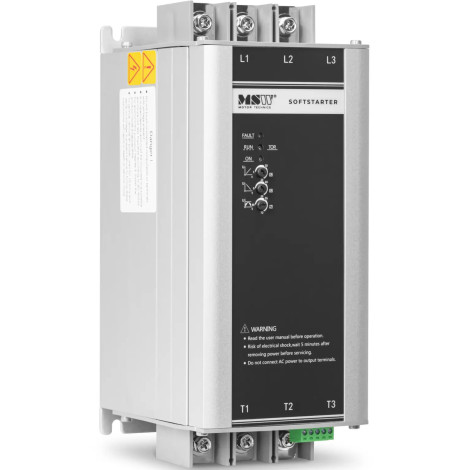

Soft Starter for mild engine start-up 25 A 11 kW 400 V

Manufacturer's code: 10062932
Soft Starter Brand MSW It allows you to prolong the lifespan of the equipment and turn on pump motors, compressors, HVAC systems or voltage conveyors 400 V. The drive will start with reduced voltage that increases according to the precisely set voltage to increase to the working value. As a result, the engine will work smoothly and without hesitation. High quality Soft Start module is connected to devices with maximum power 11 kW. That is why it is ideal for commercial and industrial applications. In addition to high performance mild starting arrangement MSW Provides optimal energy efficiency. The integrated bypass reduces the loss of power as soon as the engine reaches full power. In addition, the two-phase control allows you to reliably adjust the torque, which will result in a smooth start-up without jerk. Overload protection 10 classes will take care of safe work, preventing the damage to the machine, and thus improving the engine resistance. Soft Start 400 V delights easy operation, and thanks to a compact design takes a little space.
Product features:

• - with a maximum voltage of 400 V and 11 KW Soft Starter, gently and safely start even strong motors with reduced voltage,
• - integrated bypass in a mild start-up system effectively reduces the loss of power when the engine reaches full performance,
• - the growing voltage of the Soft Start module enables gentle and smooth engine starting,
• - thanks to the overload protection of 10 class Soft Starter provides adequate engine protection,
• - Thanks to the small construction of Soft Starter 400 V will fit almost everywhere.

Technical parameters:

• - catalog number - 10062932
• - article - New
• - Model - MSW Soft Starter SST-NX11
• - Color - Silver
• - Maximum power - 11 kW
• - Material - Aluminum
• - Tension [V] - 400
• - IP protection degree - -
• - storage temperature [deg C] - -25-60
• - Work temperature range [deg C] - -40 - 70
• - Rated entrance current [A] - 25
• - weight - 1.7 kg
• - shipping weight - 1.9 kg
• - Dimensions (DXSXW) - 11.8x8.8x22 inches
• - Dimensions of shipment (DXSXW) - 23x15x16

Included:

• - Soft Starter MSW
