Laboratory power supply 3 channels 0-30VDC 0-5A S-LS-28

€252.64
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer number: Stamos Soldering 10021058

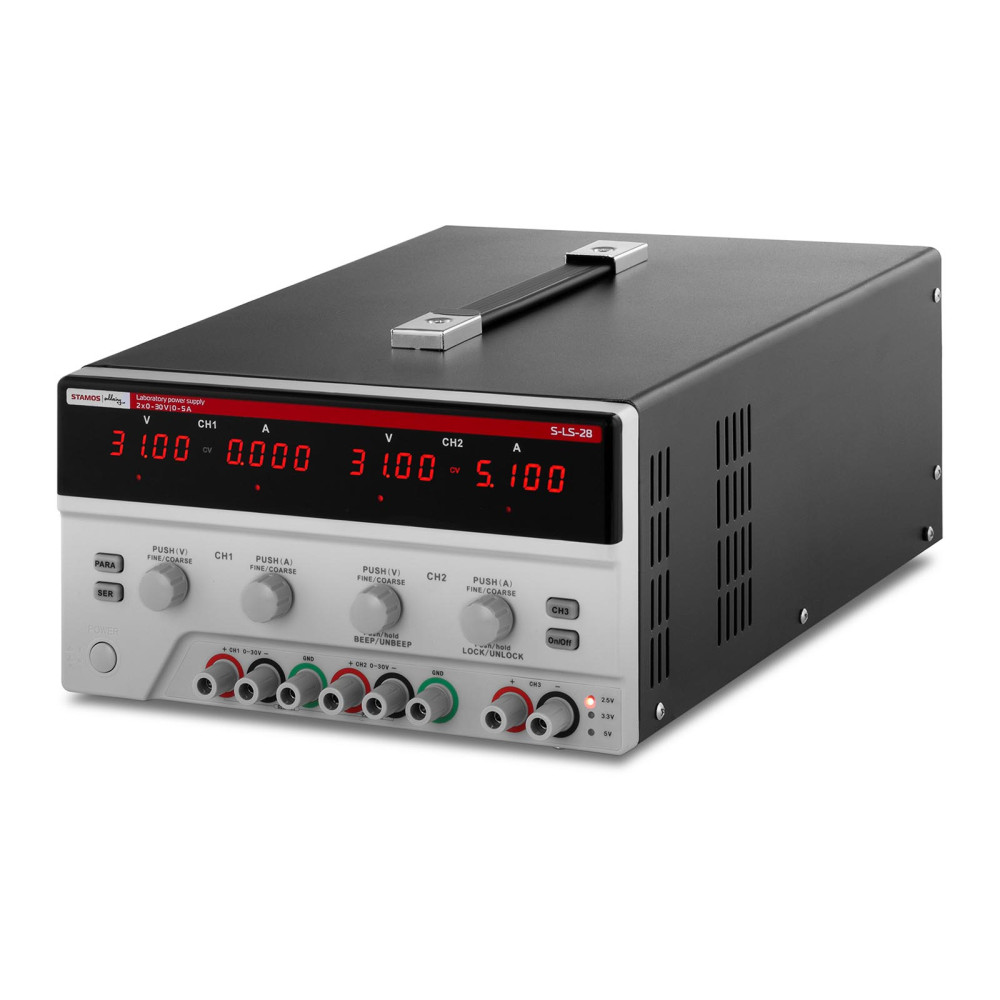

Professional Laboratory power supply Stamos Soldering Created for processing a variable current on a constant current with a selected voltage. This gives the opportunity to provide electricity to various devices used for scientific purposes, industry or telecommunications industry. The versatility of the device provides Three channels, each with a plus and minus output. If necessary, all of them they can work simultaneously.
The first two channels have three modes of operation:
  • - independent channels act independently of each other at 30 V voltage and 5 A intensity,
  • - parallel - the current value increases to 10 A,
  • - serial - Current voltage reaches 60 V at 5 A,

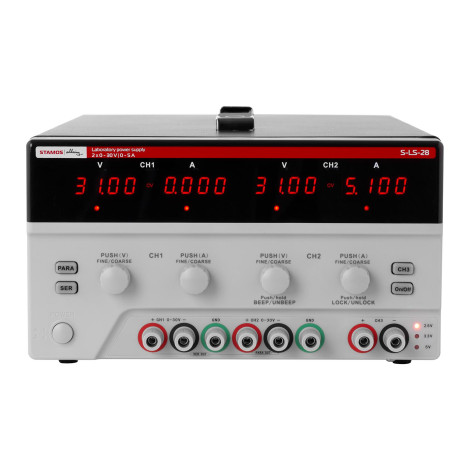

Control over the operation of the power supply 4 LED Displays. They show four-digit values relating to voltage and current and their units. In addition, the diodes inform about the currently selected function. The convenient knobs and buttons are used to control. Thanks to them, you can precisely set the correct values, specify the operating mode and channel.

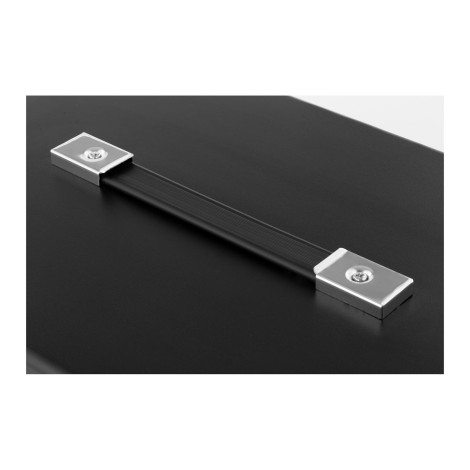

About User security A special system that turns off the power supply when this reaches too high temperature. Additionally The equipment is quiet, which significantly affects the comfort of work. Mounted handle facilitates transporting the device, and rubber feet They prevent slipping on the work surface.
Product features:
  • - Versatility - three channels and three modes of operation,
  • - Precise adjustment - knobs and liquid buttons Setting parameters,
  • - Readability - Four large LCD screens,
  • - Safety - overheating protection system,
  • - Mobility - Small sizes and handle for transporting.

Technical parameters:
  • - Model - SEC-ĺş-28
  • - catalog number - 10021058
  • - article - New
  • - Display - Led
  • - power - 550 W
  • - tension - 230 V
  • - starting current - 0-5 a
  • - output voltage - 0-30 V
  • - Working temperature - 0-40deg c
  • - storage temperature - 10-70DEG C
  • - Relative humidity - 80%
  • - Relative humidity of storage - 70%
  • - DC voltage adjustment range - Channel I / II 0-30V / channel III 5 / 3,3 / 2.5 V
  • - Current regulation range - Channel I / II 0-5 A / Channel III 3 A
  • - Work stabilization coefficient - CV ≤ 0.01% + 3 MV / CC ≤ 0.1% + 3 MA
  • - Current stabilization coefficient - V: ≤ 0.01% + 5 MV / A: ≤ 0.1% + 10 mA
  • - resolution - 10 MV / 1 MA
  • - Rainting - CV ≤ 2 MVRMS / CC ≤ 3 Marms
  • - Accuracy of parameter settings (25DEG C ± 5DEG C) - Channel I / II / III - ≤ 0.5% + 20 MV / ≤ 0.5% + 10 mA / ± 50 mV
  • - Temperature coefficient - ≤ 150 ppm
  • - Response time to the increase / voltage / current decrease (at 10% load) - 0-100 MS
  • - Display accuracy - 3
  • - Security - OTP
  • - fuse - T5 A / 250 V
  • - Ammeter - So
  • - voltmeter - So
  • - Connector - 4 mm
  • - Cooling - Fan
  • - length of the power cord - 1.2 m
  • - Dimensions (DXSXW) - 38 x 25 x 15 cm
  • - weight - 10.6 kg
  • - Dimensions of shipment (DXSXW) - 49.5 x 39 x 28 cm
  • - shipping weight - 11.6 kg

Included:
  • - LABORATORY POWER S-LS-28
  • - Power cord
  • - EN statement
