Manufacturer's code: 10020229
Multifunctional TRON 200 welder enables efficient and secure combination of metals with methods MIG / MAG, TIG, MMA or FCAW. Operating modes are selected without a problem and you can quickly switch between them thanks to the efficient IGBT inverter. Effect: Almost flawless, high-quality welds. The device has 10 working programsTo set them, specify your own pre-settings and save them. So you do not have to enter welding parameters again each time. The welder will save all settings. Clearly visible control panel Allows you to select all parameters. Knob and buttons The functions used are easily accessible even in welding gloves. The intuitive menu allows you to change welding parameters without a problem. Selected values are displayed on a readable LED display. In welding method MiG / mag Gases protect the weld - in the case of MIG welding, these are indifferent gases, and in the mage active gases. This method allows quick and effective welding. Wire feeder has a speed from 2 to 14 m / min And it is intended for wires with a diameter from 0.6 to 1 mm. You can use a reel for MIG welding (not included) that is included in the set) that under the welding wire directly to the burner. Thanks to the synergy function, you optimally set all parameters during MIG / MAG welding. You choose a welding current in the field from 50 to 200 aand the welder will automatically set the other parameters, such as welding voltage and wire feeding speed. TIG - Welding of metals with a narrow welding zone and a small amount of corrections The TIG method on the TRON 200 device consists in using the Ignition of Liffarc to activate the arc. As a result, sensitive electronic devices located nearby, such as cell phones, computers or control systems, will not be exposed to external factors. Wolfram is precipitated and have a ignition problem? Thanks to this process, you can forget about it - even for long hose sets. Welding method TIG It is suitable for welding most metals with a thickness of 1 mm and greater. You will work with a small amount of sparks and spatters in every position. Effect: high quality, clean welds and almost no deformation. Do you want to burn outside and with strong wind - choose Welding with an electric arc (MMA). This method works without additional gas. The welder generates a very stable current - ideal for getting good welding effects. Functions Arc Force and Anti Stick They turn on automatically and allow comfortable welding. Welding method Fcaw It consists in creating welds using welding wire - without additional gas. Thanks to this this method is very useful - ideal for minor repairs outside.
Product features:
  • - versatility thanks to TIG, MIG / MAG, MMA and FCAW methods,
  • - Easy operation - simple navigation after a digital menu with 10 programs,
  • - quick switching between welding functions and 2T / 4T modes,
  • - convenience thanks to the synergy function and easy choice of a reel pistol,
  • - MMA welding with VRD, Anti Stick and Arc Force.

Technical parameters:
  • - catalog number - 10020229
  • - article - New
  • - Model - Throne 200
  • - 2/4 tact - So
  • - Anti Stick - So
  • - Arc-Force - So
  • - water cooling - Not
  • - Cycle of work [%] - 30
  • - Flux wire - So
  • - Gas Electrofief - So
  • - Hot Start - Not
  • - MMA cable - 3 m
  • - Insulation class - F
  • - IEC protective class - Ip21
  • - Maximum welded thickness [mm] - MIG: 5 / MMA: 1.5 - 10 / TIG: 1 - 5
  • - Maximum entrance current [A] - MIG: 33,9 / MMA: 38.3 / TIG: 25.8
  • - entrance power [kVA] - MIG: 7.5 / MMA: 8.75 / TIG: 5.6
  • - Tension [V] - 230
  • - welding tension [V] - 15-24
  • - MMA welding current [A] - 40 - 200
  • - TIG welding current [A] - 15 - 200
  • - MIG / MAG cable - 3 m
  • - TIG cable - 3.8 m
  • - grounding wire - 3 m
  • - Soft Start - So
  • - efficiency [%] - ≥80%
  • - wire speed [m/min] - 41671
  • - wire diameter [mm] - 0.6,0.8,0.9,1
  • - Power factor - 0,73
  • - ignition TIG - Lift
  • - Rated entrance current [A] - MIG: 36 / MMA: 41.7 / TIG: 27
  • - Dimensions (DXSXW) - 21.5 x 44.5 x 37.5 cm
  • - Dimensions of shipment (DXSXW) - 59 x 41 x 42 cm
  • - weight - 19.2 kg
  • - shipping weight - 24.8 kg

Included:

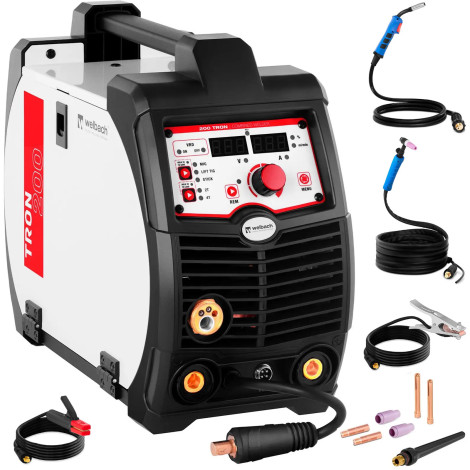

  • - TRON 200 multifunction welder
  • - TIG holder with a wire, 3.8 m
  • - MIG handle with a wire, 3 m
  • - MMA handle with a wire, 3 m
  • - mass cable with terminal, 3 m
  • - 3 sleeves (1.6 / 2.0 / 2.4 mm)
  • - Clamping sleeve in the housing
  • - 3 ceramic gas nozzles (4, 5, 6 mm)
  • - TIG Ø2 mm electrode
  • - MIG gas nozzle
  • - MIG contact tip, Ø0.8 mm
  • - long burner cap
  • - A short burner cap
