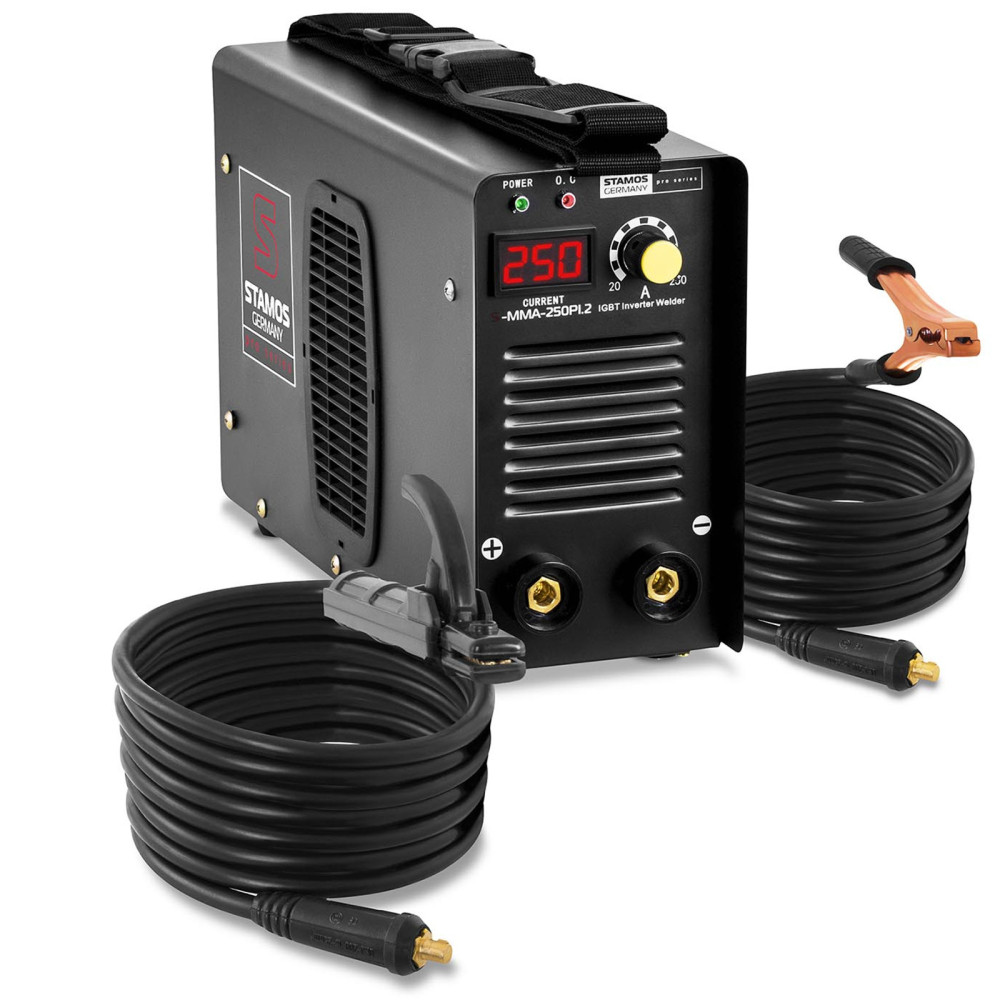

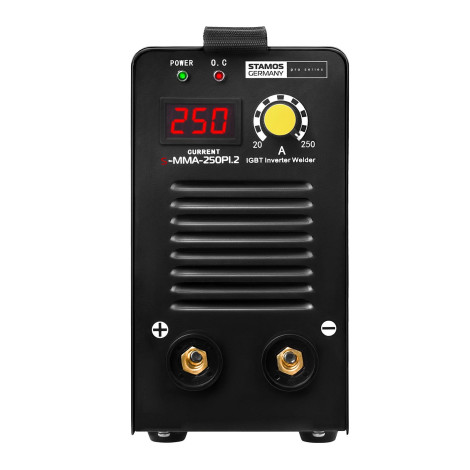

Compact reliable MMA IGBT welder with LED 250A 230V S-MMA-250PI 2 display

Manufacturer name: SEC-MMA-250pi.2
 Efficient MMA welder German brand Stamos Germany Designed for metal-burning using a coupled electrode. It was made of high quality materials and modern components, thanks to which it is not only reliable, but also efficient. Its work cycle is 60% at the welding current located within 250 A.
The S-MMA-250PI.2 model was used Modern IGBT inverter technology. It guarantees High degree of failureand also Efficient work and quick switching between functions. This is the merit of a three-way semiconductor element that it is resistant to short circuit.
Features:

• Performance - Modern IGBT technology helps to achieve a 60% work cycle,
• Mobility - compact sizes, a small weight and a comfortable bar facilitate moving the machine,
• Convenience - additional and long functions have a positive effect on the comfort of work,
• Versatility - the welder can handle iron, nickel, cast iron and copper and steel alloys with a total thickness of 1.5 mm,
• Safety - Control lamps warn the user during irregularities, and the windmill prevents the machine overheating.

Stamos devices were made according to strict European standards and passed tests for compliance with CE and RoHS. This guarantees a long service life and the high quality of the device.
Technical parameters:

• - Model - SEC-MMA-250pi.2
• - catalog number - 10020228
• - article - New
• - tension - 230 V / 50 Hz
• - Rated entrance current - 34 a
• - Maximum entrance current - 43 a
• - Rated entrance power - 7.8 kVA
• - Maximum entry power - 9.9 kVA
• - tension of idling - 56 V
• - MMA welding current - 20-250 A
• - Work cycle - 60%
• - Welding current in a 60% work cycle - 250
• - Welding current in the 100% work cycle - 194
• - electrode diameter - 1.6-5 mm
• - Welding thickness - 1.5-10 mm
• - Hot Start - So
• - Power factor - 0,93
• - efficiency - 80
• - Cooling - Fan
• - Insulation class - F
• - Security class - Ip21
• - length of the wire with MMA handle - 8 m
• - Length of the mass cable - 8 m
• - length of the power cord - 2 m
• - Dimensions (DXSXW) - 35 x 12.5 x 22.5 cm
• - weight - 4.8 kg
• - Dimensions of shipment (DXSXW) - 44 x 26 x 29 cm
• - shipping weight - 9.7 kg

 Device functions:

• Hot start consists in a temporary increase in the welding current during the arc,

Welding method:

• MMA (otulon electrode) - It will work inside and outside the rooms. Does not require a shielding gas and works during the welding of thin materials (from a thickness of 1.5 mm), e.g. copper, iron, nickel, aluminum or alloys m.in. Steel and cast iron. The S-MMA-250PI.2 model is resistant to voltage fluctuations, which makes welds made with its help have good operational and mechanical values.

Included:

• - MMA welder

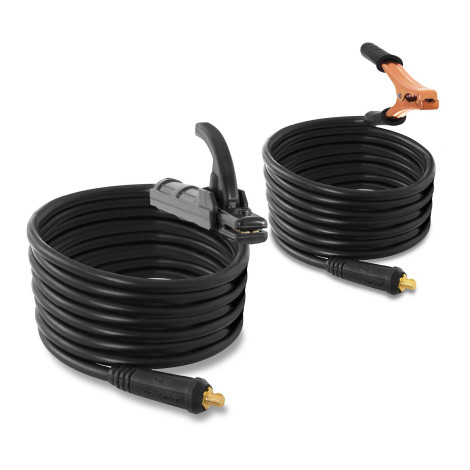

• - Cable with MMA handle - 8 m
• - mass cable with terminal - 8 m
• - EN statement
