Multifunctional welder 4W1 MIG MAG TIG Liffarc 15-200 A

Manufacturer's code: 10021502
Multifunctional TX200 brand welder brand Welbach This is a professional, efficient and high-quality device for various repair and maintenance works. Allows you to weld precisely in a gas inert methods MIG / MAG and TIG Liffarc or electrodes in mode MMA up to 200 a on the work cycle 80%. It also allows integrated cut Plasma cutter 50 A. The basis for the operation of the equipment is the most modern inverter technology, which allows quick change between cut, MIG / MAG, TIG Liffarc and MMA and reliably uses all technical parameters. By using a digital control panel, the method is selected and sets the welding current. MIG / MAG welding consists in combining wire placed on the reel into a multifunctional welding device. During the operation, the gas protects the joint. An indifferential gas is used for Mig welding. High quality welding, efficiency and welding speed will be used to combine steel structures, as well as to smaller works. For welding Tig Liffarc Also, the need for a shielding gas, which is served directly on the weld by the welding handle. In the case of plasma cutting, compressed air is set on an external pressure reducer and a specific current of up to 50 A. To weld outside, even with a strong wind, use MMA method. Different metals such as steel, iron, cast iron, nickel or copper can be combined due to stable current. Functions Hot Start and Arc Force They allow you to get optimal results when welding MMA.
Product features:

• - the welding current is 200 A and cutting current 50 A at 80% of the cycle of work,
• - 4in1 - a multifunctional welder with a plasma cutter offer welding, metal cutting by MIG / MAG, TIG Liffarc or MMA,
• - digital control panel with two knobs to accurately set all 4in1 multifunction welding machines,
• - MMA welding with the Hot Start and Arc Force function allows you to get clean welds,
• - The IGBT inverter delights with high efficiency, low interference and quick switching.

Technical parameters:

• - catalog number - 10021502
• - article - New
• - Model - Tron TX200
• - Material - Carbon steel
• - Color - White
• - Tension [V] - 220
• - wire speed [m/min] - 2-15
• - efficiency [%] - 90
• - wire diameter [mm] - Φ0.8 / 1.0
• - MMA welding current [A] - 20-200
• - TIG welding current [A] - 15-200
• - Insulation class - F
• - maximum welding current [A] - MIG: 200
• - Lift Tig - So
• - Arc-Force - So
• - Hot Start - So
• - Cycle of work [%] - 80
• - cutting current - 50 a
• - Maximum diameter of wire spool - 50 mm
• - Dimensions (DXSXW) - 43 x 19 x 36 cm
• - weight - 10.42 kg
• - Dimensions of shipment (DXSXW) - 54 x 32 x 52 cm
• - shipping weight - 18.28 kg

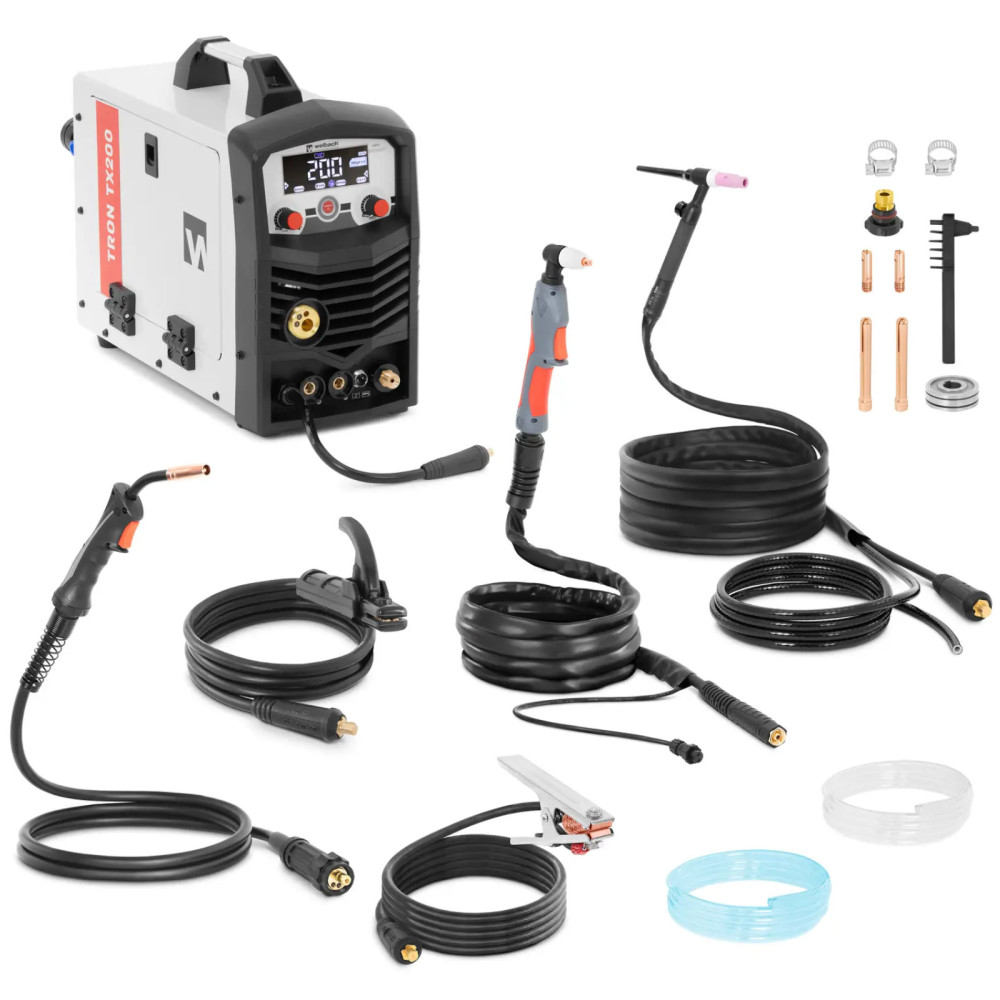

Included:

• - Multifunctional welder
• - MIG burner with a hose set (3m)
• - electrode holder with a cable (1.8m)
• - Earthing clamp with a cable (1.3 m)
