TIG MMA Hot Start Pulse Arc-Force LED 200 A welding machine

Manufacturer's code: 10021420
TIG brand welder Stamos Germany He will work on the construction site, in a workshop or in the hobby studio. Impresses the first-class performance values, easy-to-use and flexibly adjustable welding parameters. MMA function Used to perform welding works outside. Use a transparent control panel with knobs and buttons to set all values, such as pulse frequency, the time of the final gas outflow or welding current up to 200 a. LED display It is clearly visible. Foot pedal, which can be connected if necessary (not included) provides additional freedom of movement. In the case of thin sheets, use the pulsation function. Even in difficult conditions, you can stabilize the bow and regulate the frequency of impulses in the range 0.5-200 Hz. You can also select other parameters, such as initial, base or end current and set them depending on the workpiece. Modern IGBT inverter Supports in precise use of all welding parameters, so you can get excellent welds. It also provides easy change of welding functions and switching from a 2- or 4-tact welding. The bow is activated by means of a reliable high-frequency feeding (HF). Using TIG welding machines, you can weld a fixed current (DC), so you can take almost all types of weldable metals and their alloys, such as steel, stainless steel, copper, nickel or titanium. It allows you to weld in different positions, both vertically, level and on the head. For electrode welding, use the supplied MMA holder for electrodes with a diameter of 1.6-4 mm. The best results are achieved up to 160 and thanks to Hot Start and Arc Force. The Hot Start function provides a short-term inculcement of the welding current after starting the welding process, so you can work reliably and clean from the first moment. Thanks to the ARC Force function, a bow is regulated to adjust it to the welded material and the desired weld density.
Product features:

• - TIG welding up to 200 A, at 100% of the work cycle to 110 A, MMA up to 160 A,
• - high-quality IGBT inverter and a transparent, digital control panel,
• - precise options for the settings of the pulsation function and end time and initial gas outflow,
• - intuitive selection of functions and parameters using buttons and knobs,
• - MMA welding with Hot Start and Arc Force.

Technical parameters:

• - catalog number - 10021420
• - article - New
• - Model - SEC-wigma200m
• - ignition TIG - Hf
• - Material - Stainless steel, coal steel
• - Color - Black, red
• - Tension [V] - 220
• - efficiency [%] - 80
• - Cycle of work [%] - 30
• - entrance power [kVA] - 3,93
• - Power factor - 0,73
• - MMA welding current [A] - 30-160
• - impulse current [A] - 10-200
• - Gas outflow time [s] - 0-10
• - Maximum entrance current [A] - 7,2
• - Insulation class - F
• - compliance with the standard - En60974-1
• - Maximum entrance current [A] - TIG: 26.8 MMA: 29
• - Rated entrance current [A] - TIG: 28 MMA: 32.9
• - pulse frequency (AC) [Hz] - 0,5-200
• - pulse frequency (DC) [Hz] - 0,5-200
• - 2/4 tact - So
• - Arc-Force - So
• - Hot Start - So
• - Pulse function - So
• - Remote Control Connection - So
• - Cycle of work [%] - 60
• - TIG cable [m] - 5 m
• - MMA cable [m] - 3 m
• - Current falling time (Down Slope) [s] - 25 s
• - grounding wire [m] - 3 m
• - Dimensions (DXSXW) - 41 x 16 x 30 cm
• - weight - 12.3 kg
• - Dimensions of shipment (DXSXW) - 50.5 x 39 x 28 cm
• - shipping weight - 13.4 kg

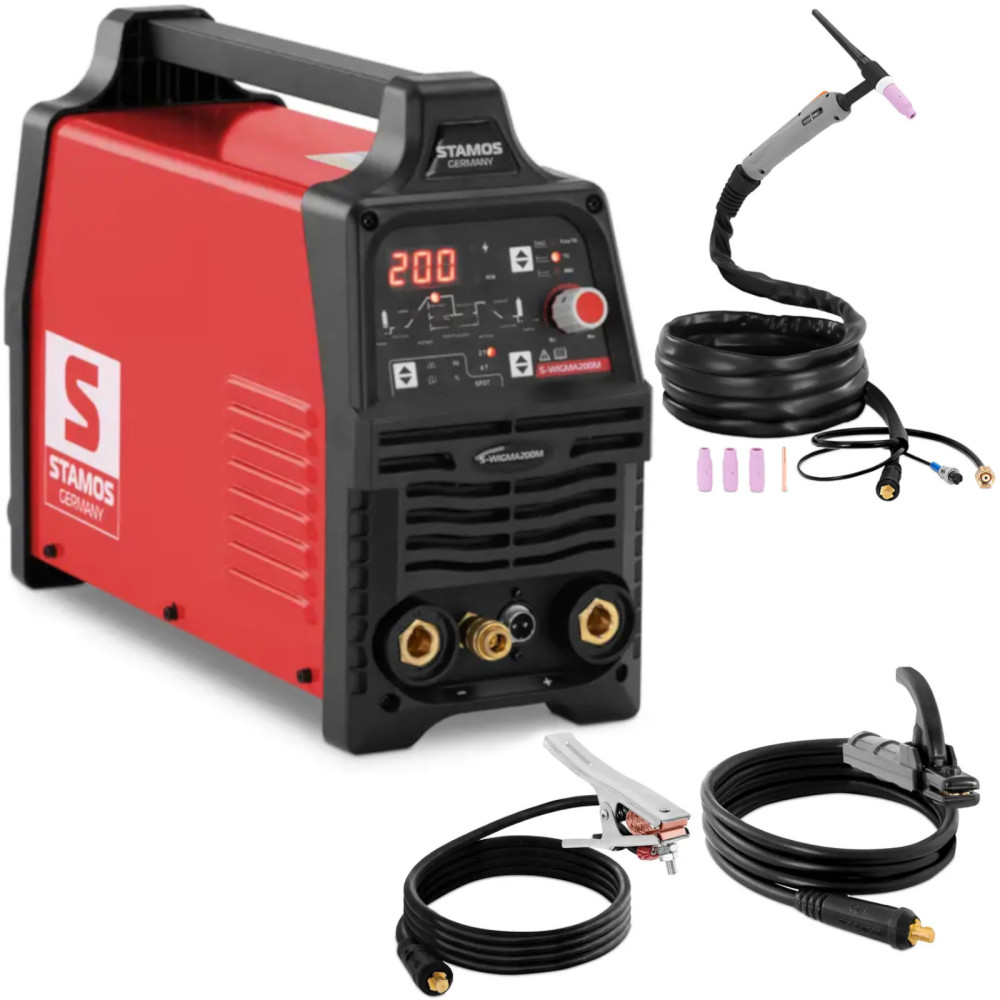

Included:

• - welder
• - TIG WP26 welding holder with a wiring package (5m)
• - Earthing clamp with a cable (3m)
• - electrode holder with a cable (3m)
• - User manual
